ASUS ESC4000 DHD G4

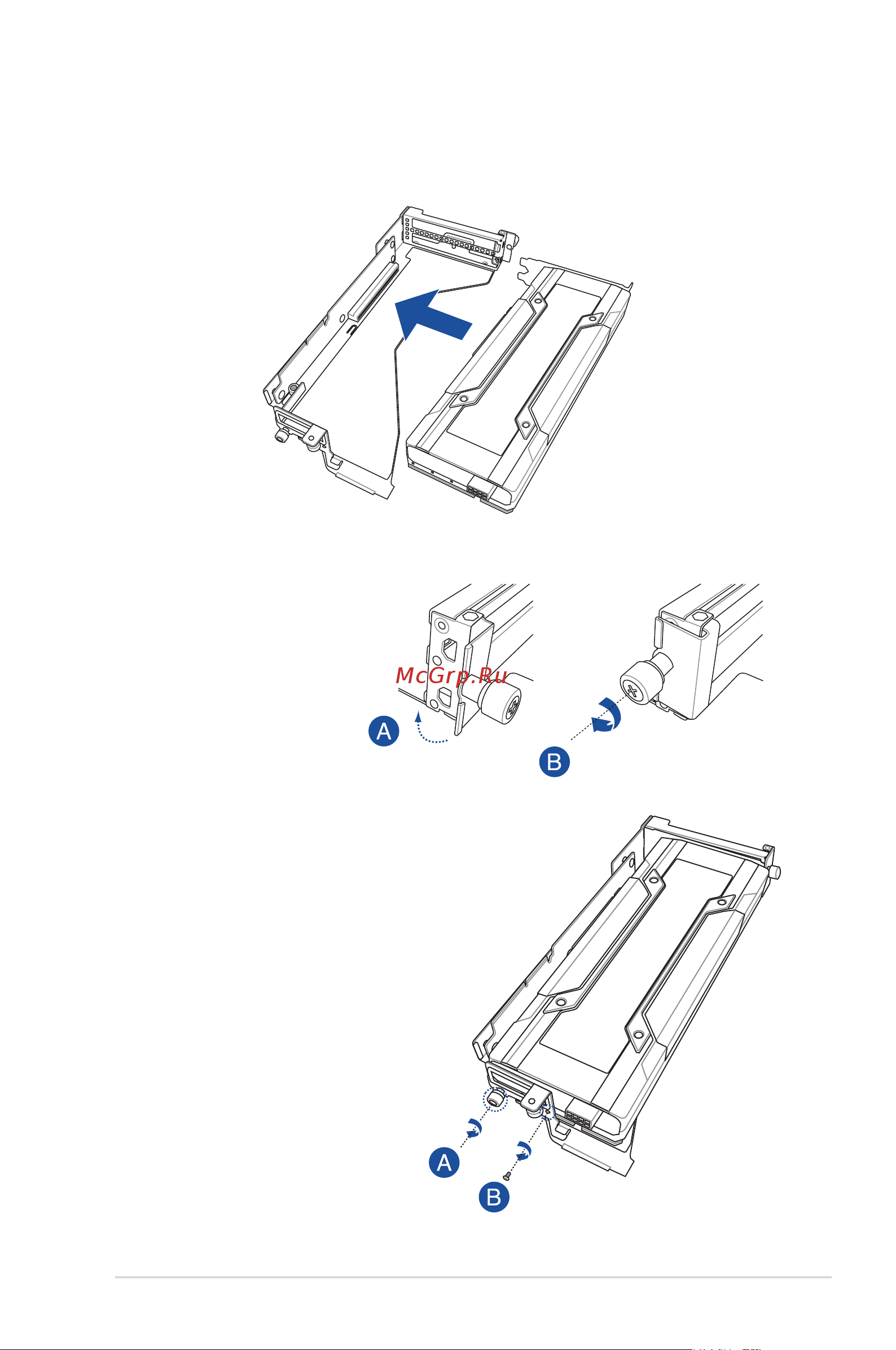

7. Align and insert the golden nger connectors of the expansion card to the PCI-E slot

connector on the riser card as shown.

9. Secure the thumbscrew to the

expansion card (A), then secure a

screw to the expansion card (B).

8. Close the PCI-E card secure

tab (A), then secure the

thumbscrew on the PCI-E

card secure tab.
