ASUS ESC4000 DHD G4
4-19

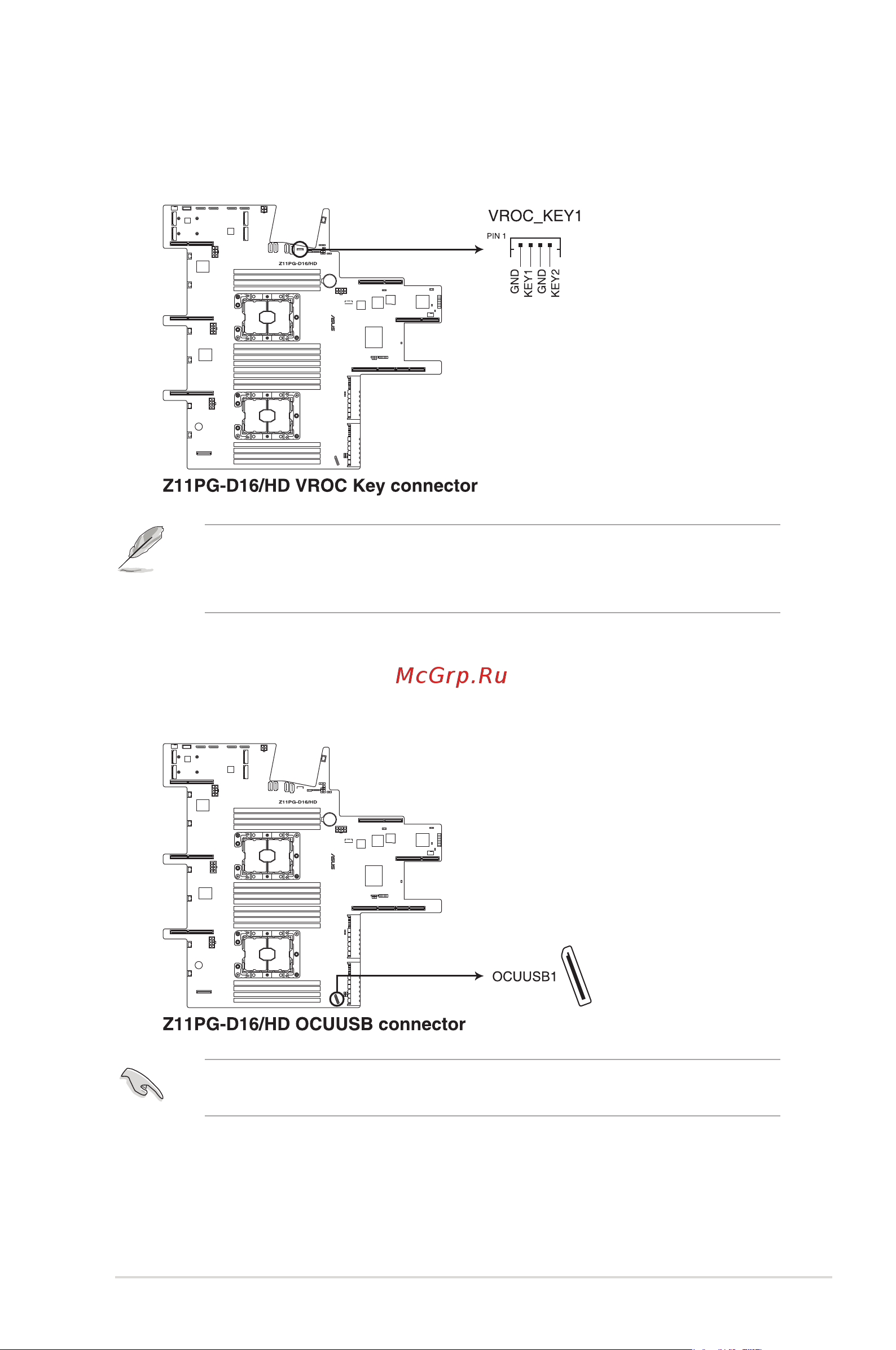

15. VROC Key connector
The VROC (Virtual Raid on CPU) Key connector allows you to connect a VROC
hardware key to enable additional CPU RAID functions with Intel
®
CPU RSTe.
• TheVROChardwarekeyispurchasedseparately.
• DuetoCPUbehavior,CPURAIDfunctionswithIntel
®
CPU RSTe only supports Intel
®
Core™ X-series Processors (6-core or above) and Intel
®
SSD modules.
16. USB 3.2 Gen 1 connector
Connects the USB 3.2 Gen 1 signal to the front panel. The USB 3.2 Gen 1 connector
allows you to connect a USB 3.2 Gen 1 module for additional USB 3.2 Gen 1 ports.
The USB 3.2 Gen 1 connector provides data transfer speeds of up to 5 Gb/s.
The plugged USB 3.2 Gen 1 device may run on xHCI or EHCI mode depending on the
operating system’s setting.
