ASUS ESC4000 DHD G4

4-21

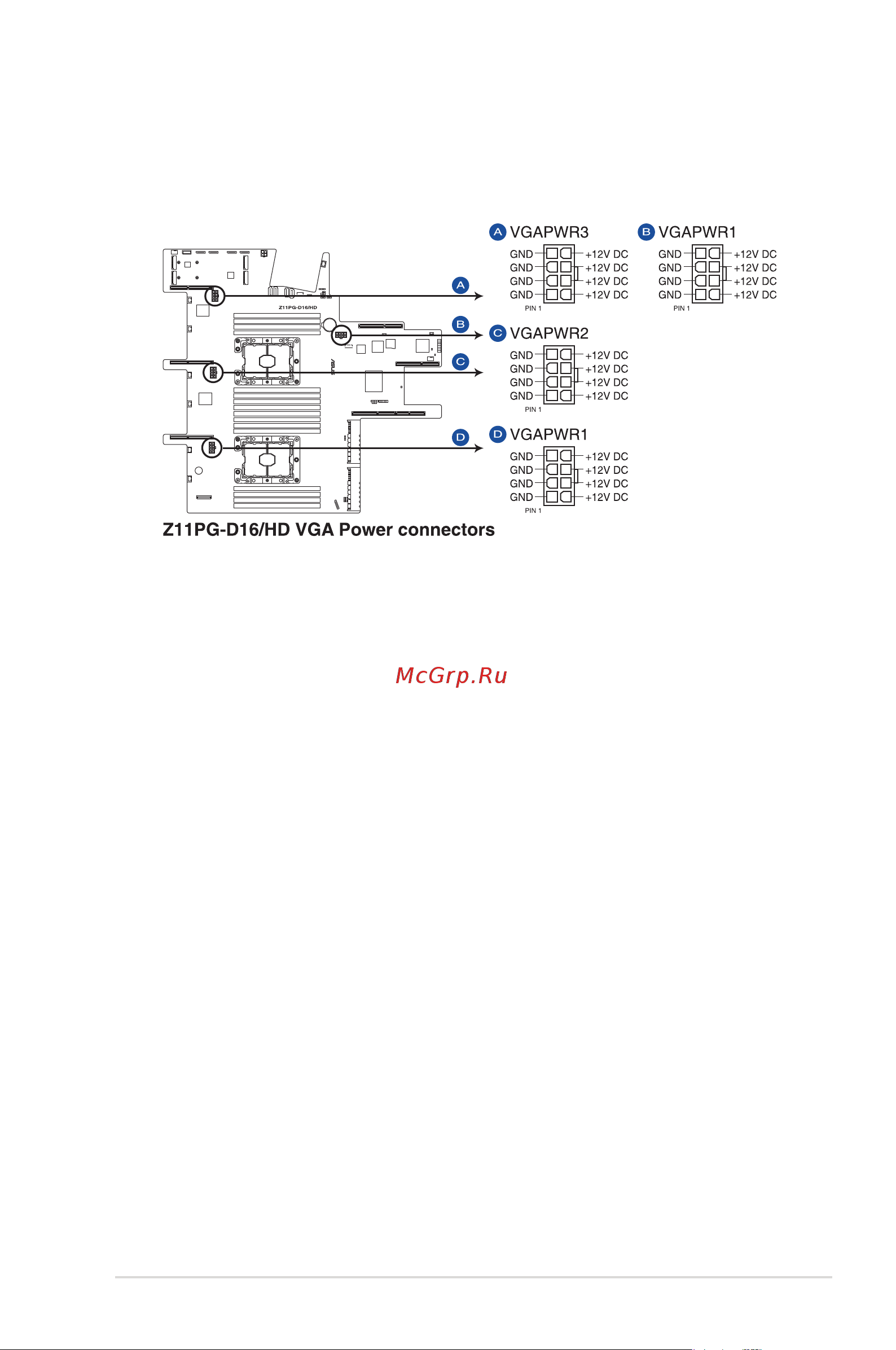

19. VGA Power connectors

These connectors are for the power supply plugs that connects to the GPU cards. The

powersupplyplugsaredesignedtottheseconnectorsinonlyoneorientation.Find

theproperorientationandpushdownrmlyuntiltheconnectorscompletelyt.
