Aten VM5808HA [17/124] Components

Chapter 1. Introduction

Components

No. Component Description

1 LCD display The LCD display gives a quick view of all port connections,

and shows the various options for configuring and

operating the matrix switch. For full details, see Main

Screen, page 11.

2 port selection

pushbuttons



Press a pushbutton to select the corresponding HDMI

input or output. The built-in LEDs light when the port is

selected.



When selecting a connection profile, press input

pushbutton 1–4 to select profile 1–4; output

pushbutton to select profile 5–8. Pushbuttons

3 Prev / Next

pushbuttons

These pushbuttons allow you to cycle through the menu

options on the LCD display.

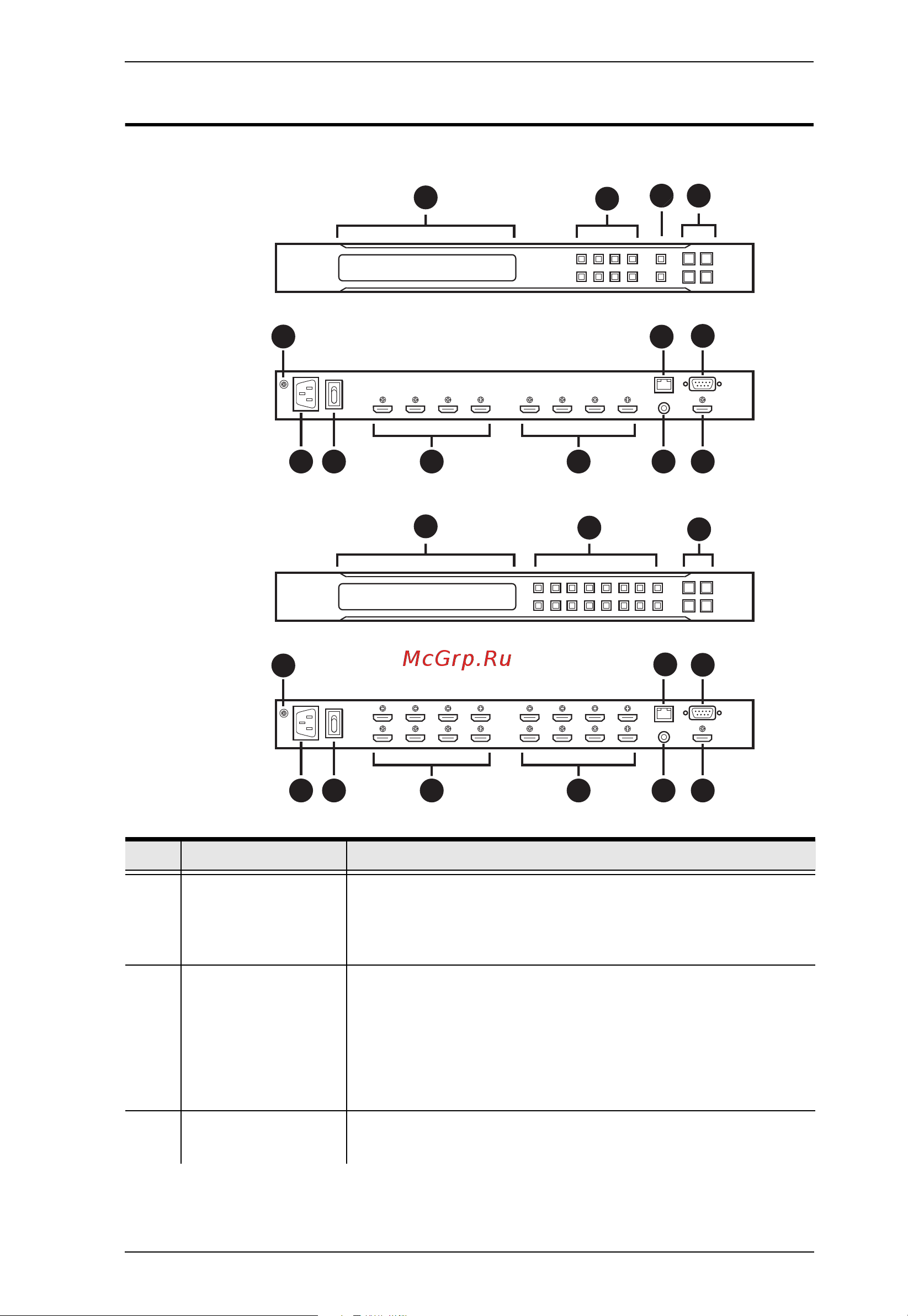

VM5404HA

Front View

VM5404HA

Rear View

VM5808HA

Rear View

VM5808HA

Front View

86 7

6 7
