Chapter 4. Browser Operation
49
Configuring Video Settings in Grid View

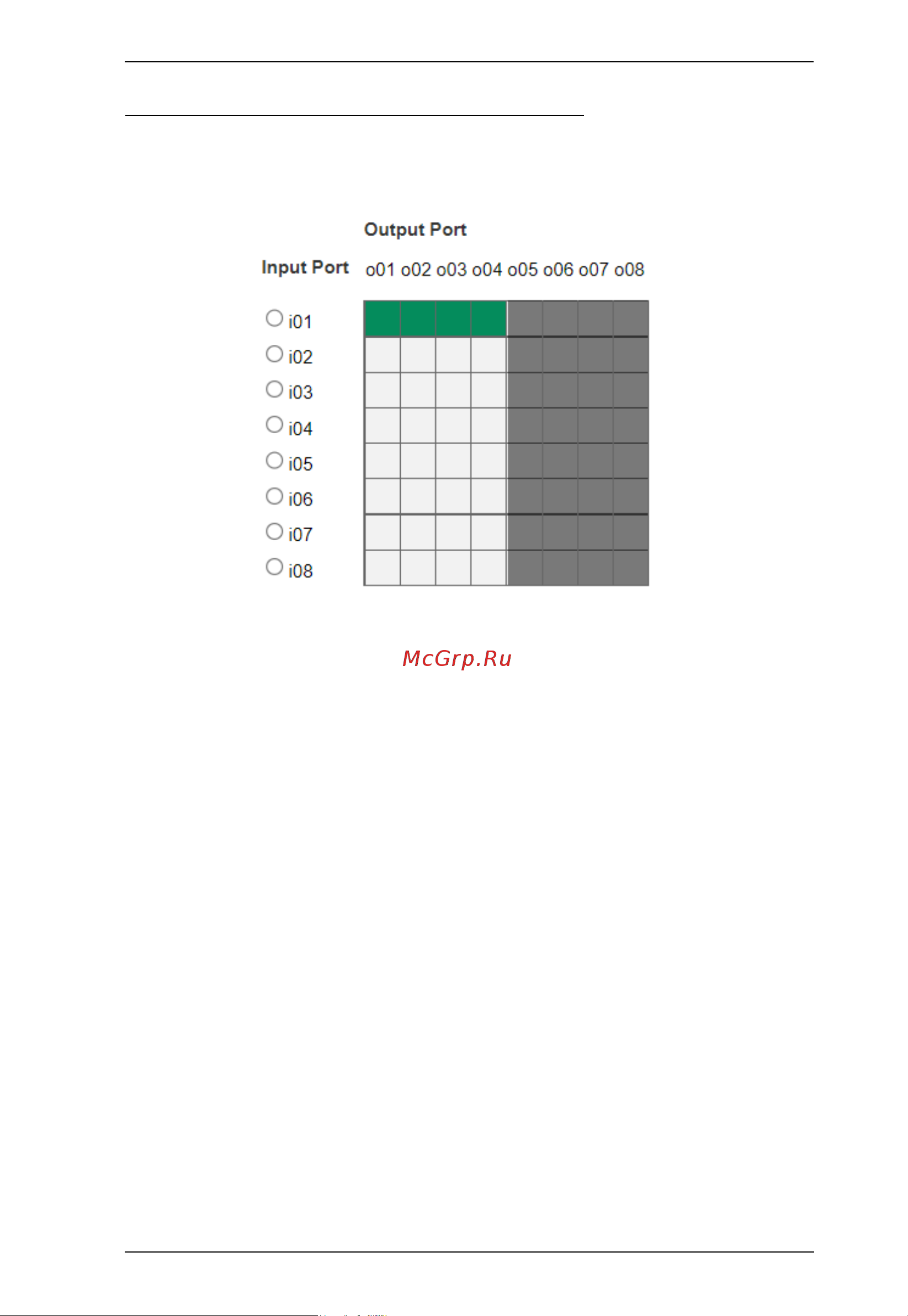

In a grid view, the audio and video outputs are assigned by mapping the audio
/ video input on the vertical axis to the audio / video output on a horizontal axis.
Select a box to coordinate Input Ports to Output Ports. By default,
ports will be aligned so that i01 will correspond to o01, etc.
Uncheck a box to disable the video for that Output Port. The column
will no longer contain a yellow box.
Check an Input Port radio button to align all Output Ports to that Input
Port.
Click Test to play current profile without saving.
Click Save & Apply to save a profile and begin playing it.
Click Save to save the profile.
Click Save as to save the profile as a different profile number.
Click Cancel to undo all unsaved changes.
Output Options
For instructions on the Output Options, see System Settings, page 50.
