Aten VM5808HA [43/124] Profile list

Chapter 4. Browser Operation

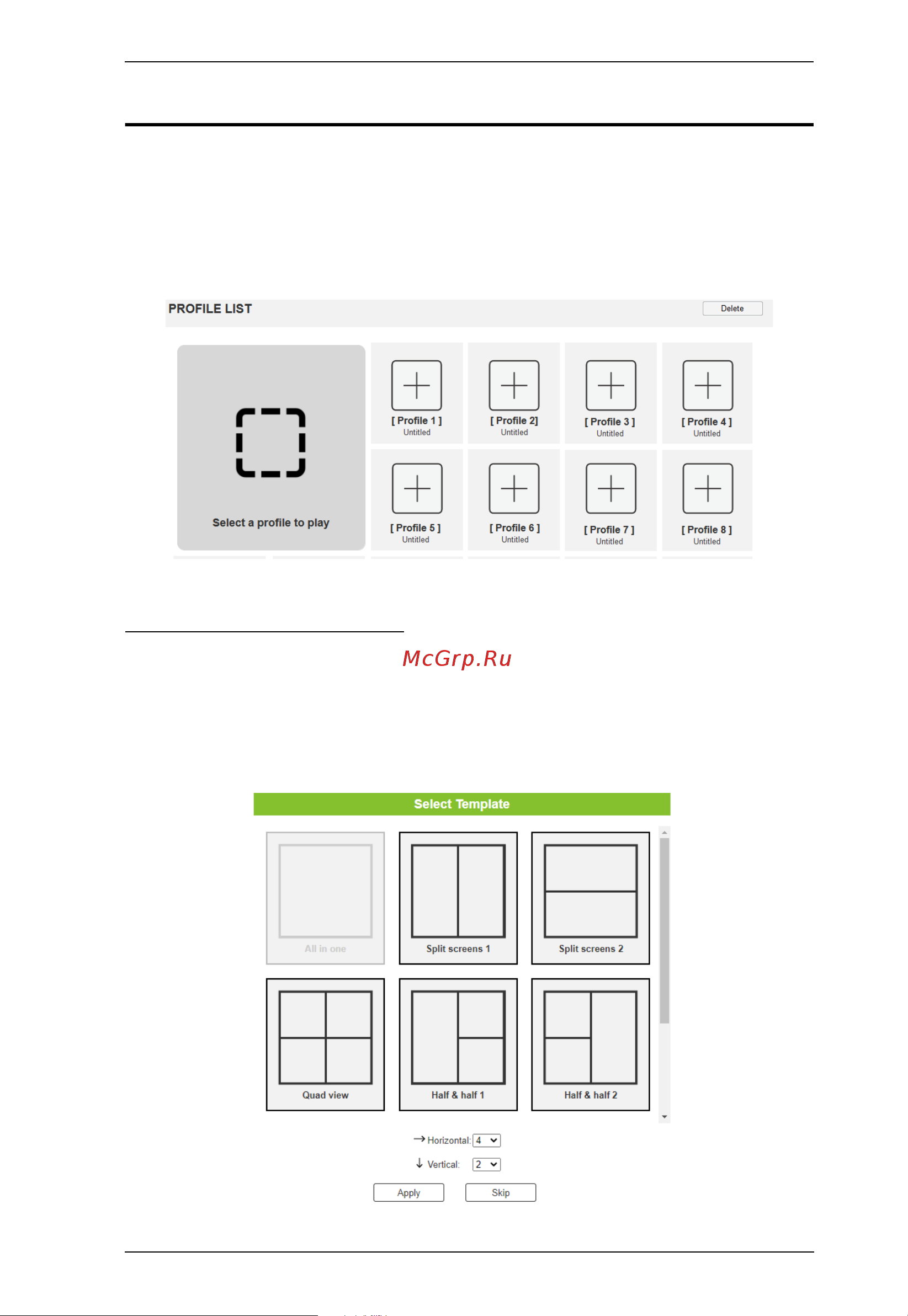

Profile List

The Profile List lets you configure the input to output port connections by

creating profiles to use. You can store up to 8 (VM5404HA) or 16

(VM5808HA) differently configured profiles that can be saved and played by

two methods: locally via the unit’s front panel pushbuttons and via the web

GUI.

Adding/Playing a Profile

To configure a connection profile:

1. From the Profile List, click a [Profile].

2. Select a template, configure the amount of your horizontal and vertical

displays, and click Apply.
