VM5404HA / VM5808HA User Manual
84
Connecting to the Matrix Switch via RS-232
You can control and operate the VM5404HA / VM5808HA using a high-end
controller or PC. To connect to the VM5404HA / VM5808HA via RS-232, do
the following:

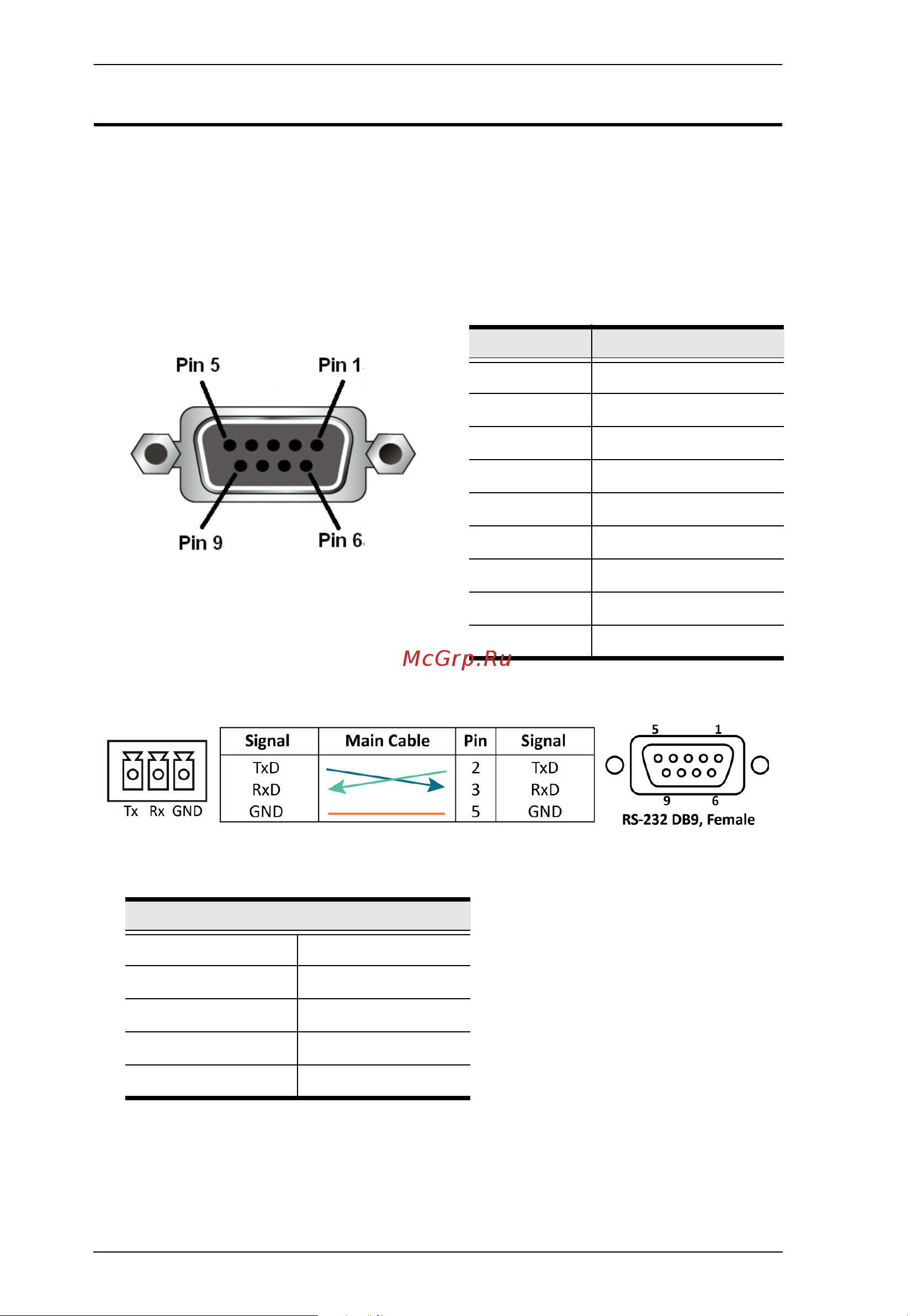

1. Connect the RS-232 serial port on the VM5404HA / VM5808HA to the
RS-232 serial port on your computer using a 9-wire straight cable, with
only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 connected.
2. The controller’s serial port should be configured as follows:
When a session is established with the VM5404HA / VM5808HA, you can
control and configure the VM5404HA / VM5808HA via RS-232 commands.
For more information on commands, see Commands, page 85.
Pin Description
1 Not connected
2 RXD
3 TXD
4 Not connected
5 GND
6 Not connected
7 Not connected
8 Not connected
9 Not connected
RS-232 Protocol
Baud Rate 19200
Data Bits 8
Parity None
Stop Bits 1
Flow Control None
