Chapter 3. Front Panel Configuration
23
3. Press pushbuttons (1–8) or (1–4) to select an output port whose resolution
will be changed.
4. Use the input port pushbuttons 7/8 or Prev/Next to navigate through the
list of options, and then press the corresponding input port pushbutton to
select the setting.
5. Press Menu to return to the Menu page.
6. Press Cancel to return to the previous level of menu.

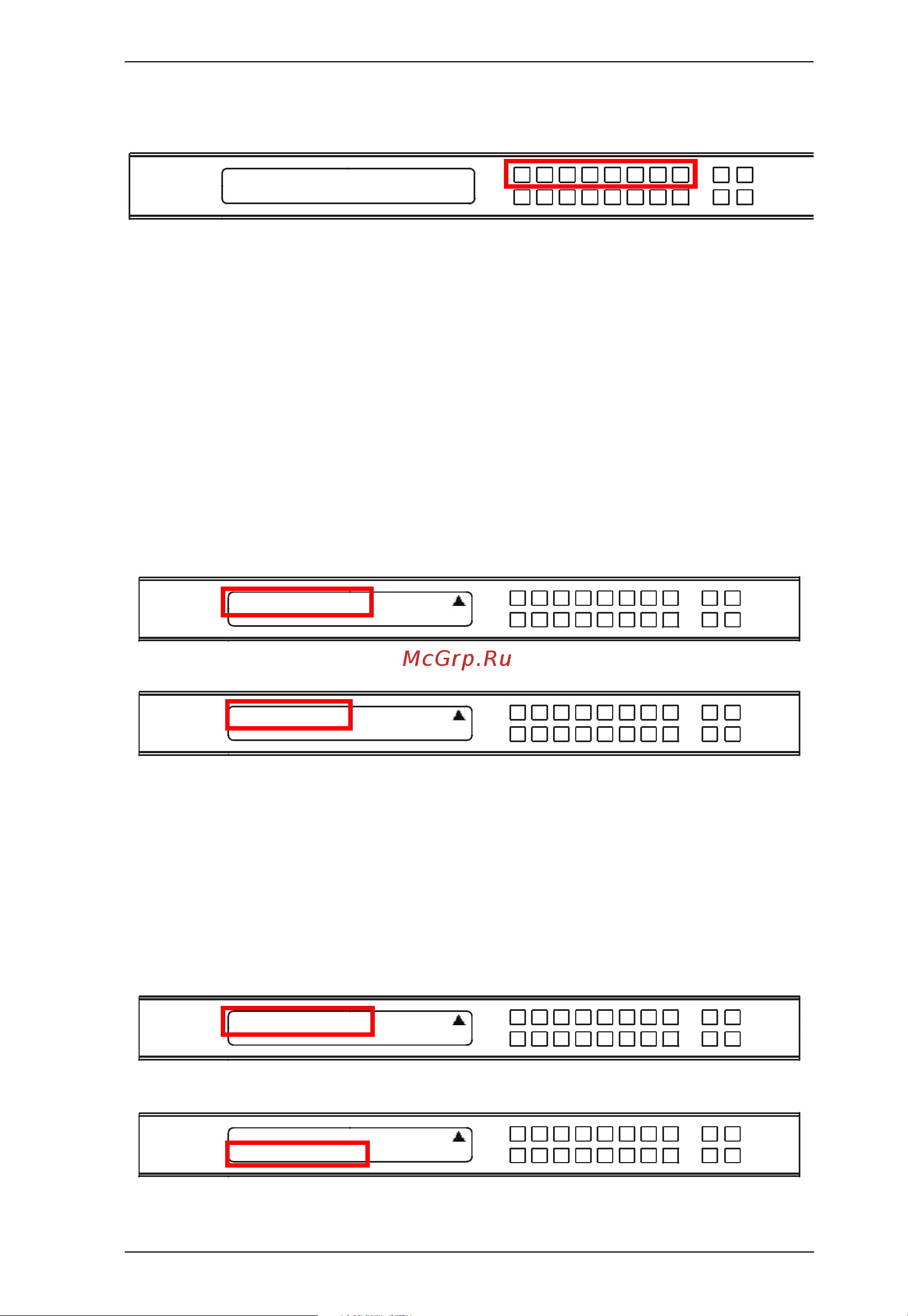

Array Mode (Local HDMI Out)
Changing the View Mode for Local Display
1. From the Operation Mode page, press 8 or Next to locate the Array Mode
option, and then press pushbutton 1 to select the option.
2. Press 1 to select mode.
3. Press the input port pushbutton 7/8 or the Prev/Next pushbutton to
navigate through the mode options, and then press an input port
pushbutton to select one.
Changing the Input Source(s) for Local Display
1. From the Operation Mode page, press 8 or Next to locate the Array Mode
option, and then press pushbutton 1 to select the option.
2. Press 2 to select input ports for the local display.
3. Select up to 4 input ports by pressing the input port pushbuttons.
OUTPUT 1 2 3 4 5 6 7 8
1: Array Mode (HDMI Out)
7: Back
1: Mode: Quad View
2: Selected Input(s): 1 ~ 8
7: Back
1: Array Mode (HDMI Out)
7: Back
1: Mode: Quad View
2: Selected Input(s): 1 ~ 8
7: Back
