Chapter 4. Browser Operation
35

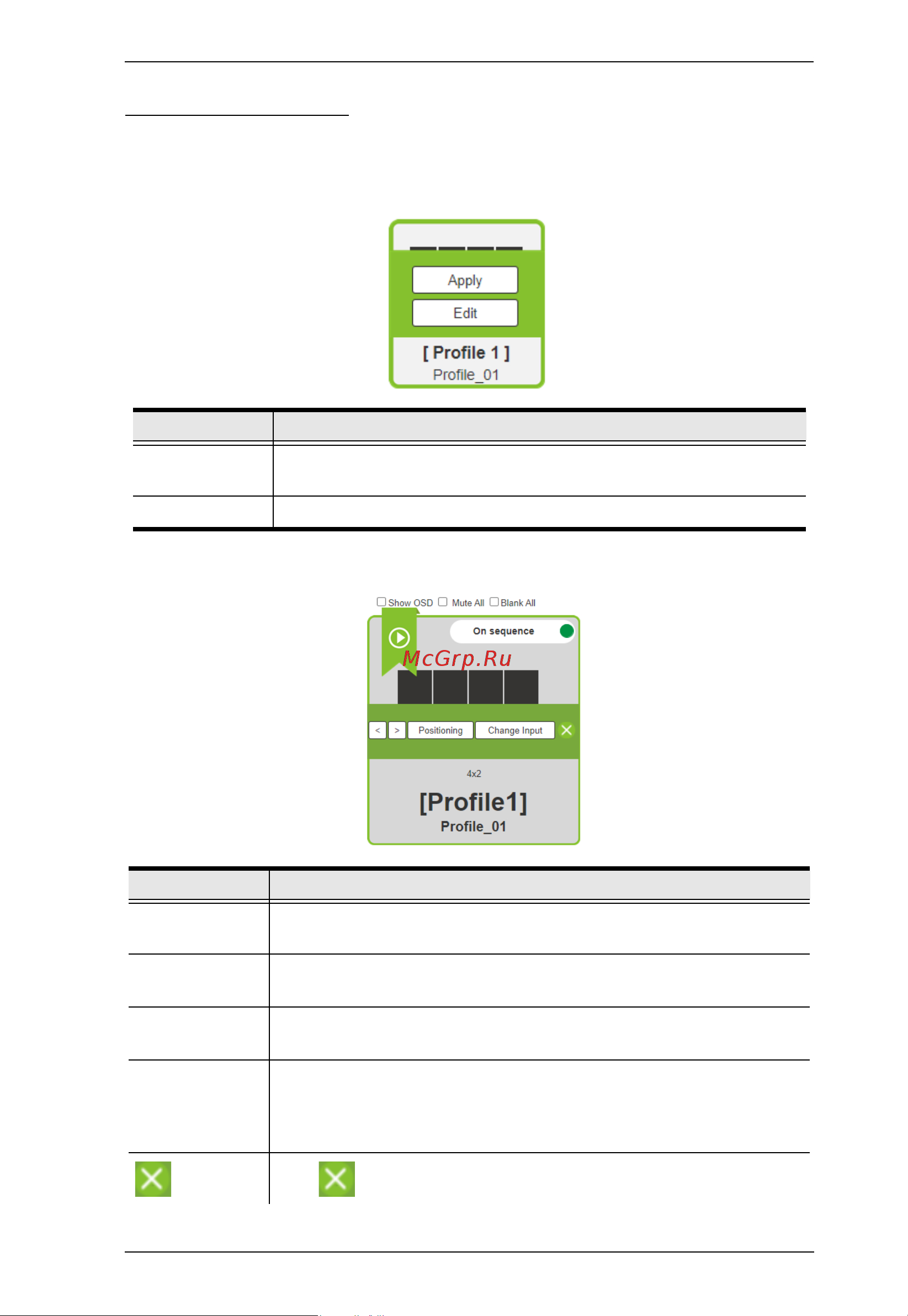

Profile List Options
Clicking a Profile or the Play window opens a pop-up menu with options.
Profile
Play Window
Option Description
Apply Click Apply to put the profile in the Play window. This allows you to
start the profile connections.
Edit Click Edit to configure the profile's input to output connections.
Option Description
On Sequence On Sequence will appear when a profile schedule is playing (see
page 37).
< Click < to go back to the previous profile in the sequence, when
Profile Scheduling is in use. Only available with On Sequence.
> Click > to advance to the next profile in the sequence, when Profile
Scheduling is in use. Only available with On Sequence.
Positioning Click Positioning to open a window that allows you to adjust the
image position on each display. For Video Wall profiles, you can
also set the Bezel Dimension, which is the frame thickness between
each display.
Click to remove the profile from the Play window.
