VM5404HA / VM5808HA User Manual
26
Save to a Profile
The switch allows users to store up to 8 (VM5404HA) or 16 (VM5808HA)
(numbered P1–P16) different connection profiles that can be saved and
recalled later.
The active Input-to-Output port connections on the LCD Main Screen is the
configuration saved to a profile. When a user loads a profile, the change is
immediate and the profile number is shown on the lower right corner of the
LCD screen.
To save a profile once the desired port connections are set, do the following:
1. Press the Menu pushbutton to access the Menu page, then 8 or Next to
navigate to the next pages. Press pushbutton 1 to open the select Save to a
Profile page.
2. On the page that opens, you are asked to give the profile a number. Use the
front panel number pushbuttons to select a profile number into which you
want to save the configuration.
VM5404HA: Options are P1–P8 (when saving a profile via the LCD),
where:
Input port pushbuttons 1–4 correspond to Profile P1 to P4
Output port pushbuttons 1–4 correspond to Profile P5 to P8
VM5808HA: Options are P1–P16 (when saving a profile via the LCD),
where:
Input port pushbuttons 1–8 correspond to Profile P1 to P8
Output port pushbuttons 1–8 correspond to Profile P9 to P16
3. Press Enter to store the configuration – the LCD shows Profile Saved.
4. Press Menu to return to the Menu page, Press Cancel to return to the
previous level of menu.
Note: Access the Save to a Profile page quickly by pressing the Profile
pushbutton for longer than 3 seconds.

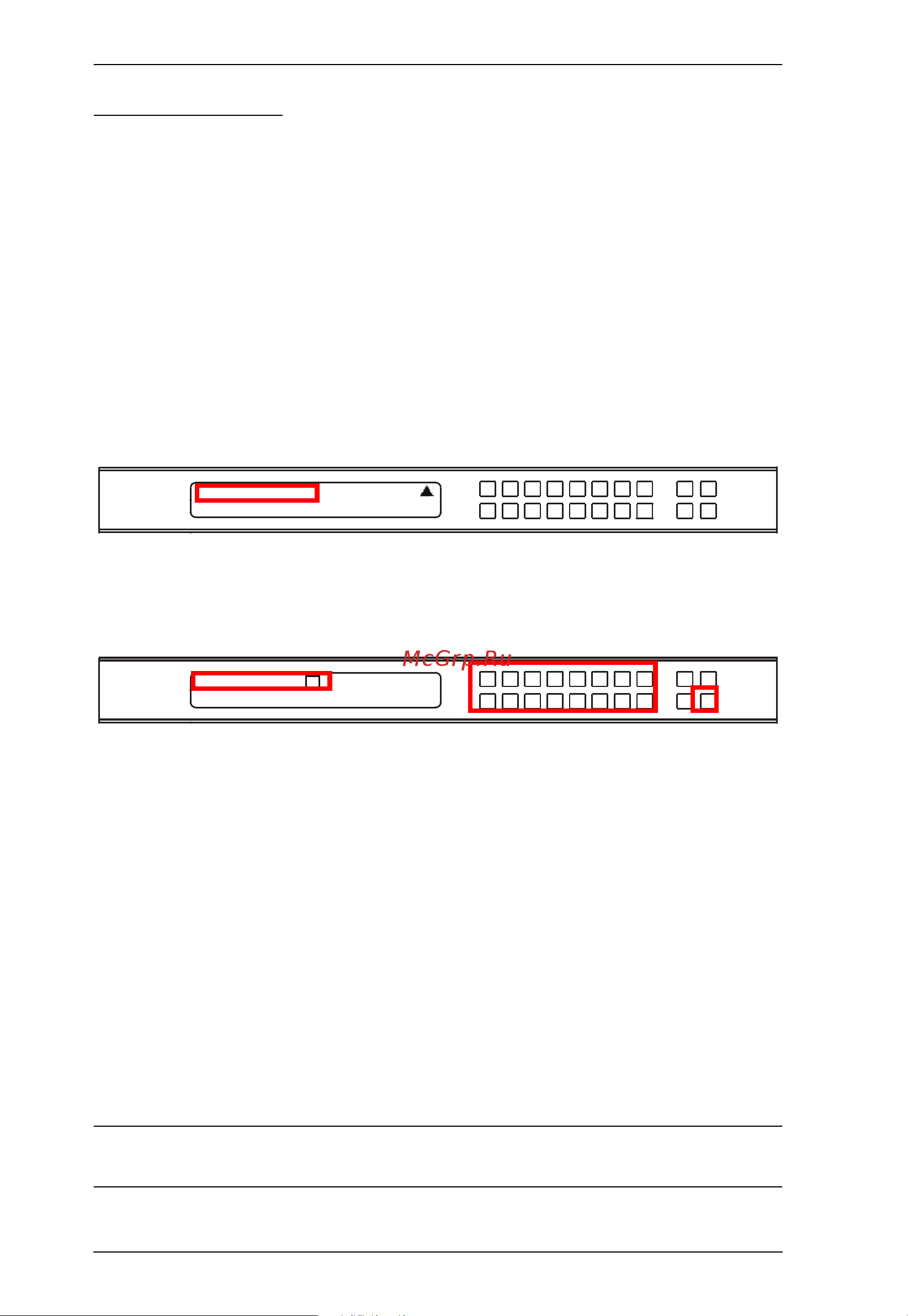

1: Save to a Prole
2: Play/Stop the Prole Schedule
7: Back
Save to a Prole No. 1
In 1-8=P1-P8;Out 1-8=P9-16.
