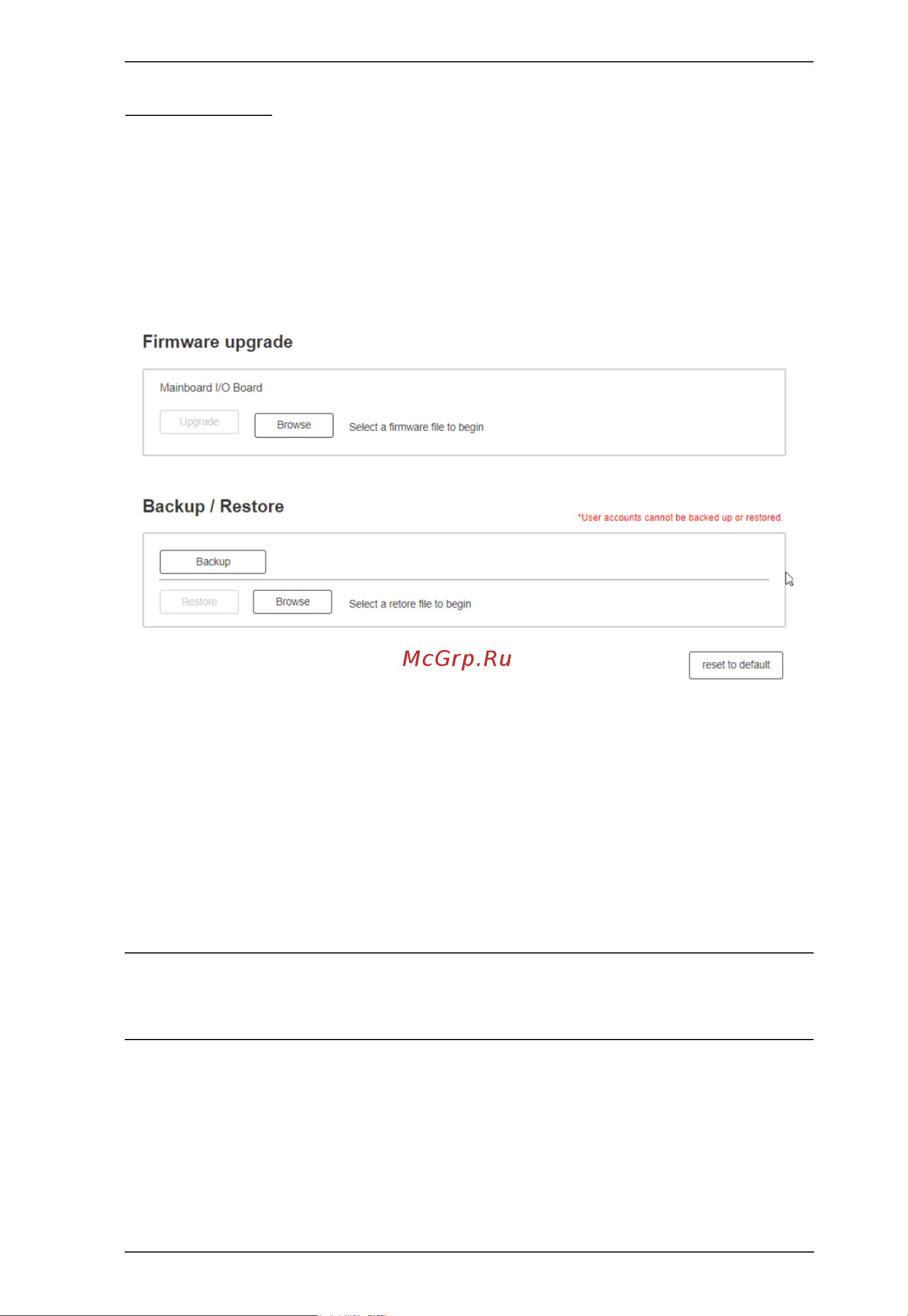

![Aten VM5808HA [89/124] Maintenance](/views2/1977702/page89/bg59.png)
Chapter 4. Browser Operation
77
Maintenance
System Setup
You can use the System Setup page to do any of the following:
Upgrade the firmware of the VM5404HA / VM5808HA.
Back up and restore the VM5404HA / VM5808HA’s system settings. Note
that account settings cannot be backed up or restored.
Firmware Upgrades
1. Download the firmware package from ATEN’s official website.
2. In the VM5404HA / VM5808HA web interface, go to Settings >
Maintenance > System Setup > Firmware Upgrade > Mainboard I/O
Board, and click Browse to locate the firmware upgrade package.
3. Click Upgrade to begin the upgrade.
Note: After updating the firmware, it’s recommended that you clear your web
browser’s cache and then reopen the web browser. This will ensure that
the web console refreshes and functions properly.
