Chapter 3. Front Panel Configuration
15

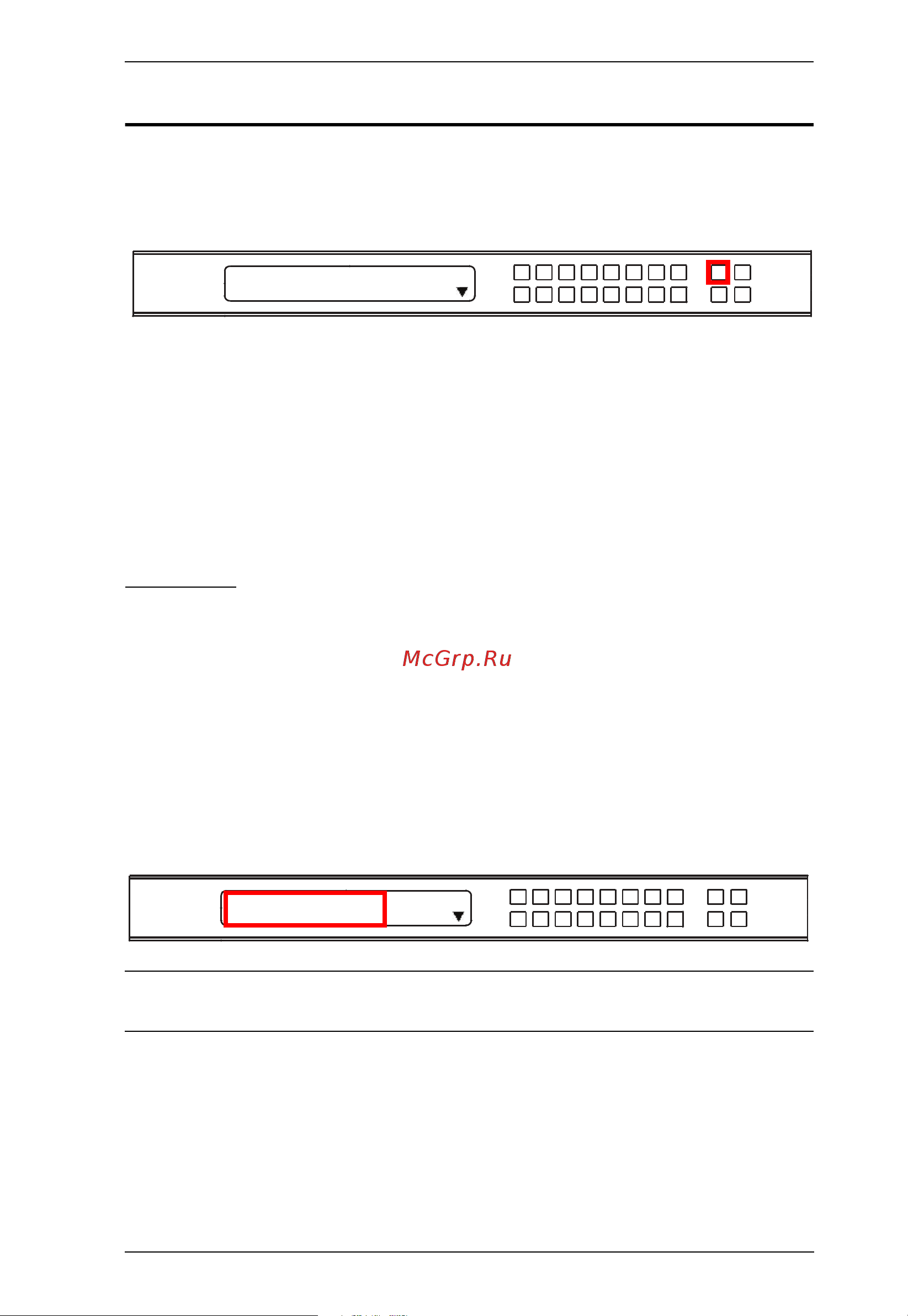

Menu Pushbutton
Use the MENU pushbutton to access configuration settings of the video
matrix.When the Menu is active, the MENU pushbutton’s built-in LED lights
up:
From the Menu page:
Press 1 to go to the IP Setting page (see IP Setting, page 15)
Press 2 to go to the Serial Port Setting page (see Serial Port Setting,
page 17)
Press 8 or Next to go to the next page(s) for the sub-menu pages
Press Menu or Cancel to return to the Main Screen
IP Setting
The IP Setting page displays the VM5404HA / VM5808HA’s IP configuration.
The values in the LCD Menu are read-only and can be configured via the
Browser GUI (Network Settings, page 81).
IP Address / Subnet Mask
To view the VM5404HA / VM5808HA’s IP address and Subnet Mask, do the
following:
1. From the Menu page, press 1 to see the IP Setting submenu. The IP
address and Subnet Mask are then shown.
Note: The VM5404HA / VM5808HA default IP address is 192.168.0.60. The
default Subnet Mask is 255.255.255.0
2. Press 8 or Next to go to the next page.
3. Press Menu or Cancel to return to the Menu page.Press Cancel to return
to the previous level of menu.
1: IP Setting
2: Serial Port Setting
8: Next
IP Address: 192.168.0.60
Subnet Mask: 255.255.255.0
8: Next
