Chapter 4. Browser Operation
81
Editing a User Account
1. Log in the VM5404HA / VM5808HA web interface using an
administrator account.
2. Go to Settings > Maintenance > User Account. A list of created accounts
appears.
3. Click Edit to edit account settings as needed.
Network Settings
You can configure the VM5404HA / VM5808HA’s network settings, such as
connection mode (DHCP or fixed IP address), IP address for the web console,
and Telnet connection.
To configure the system network settings, do the following:

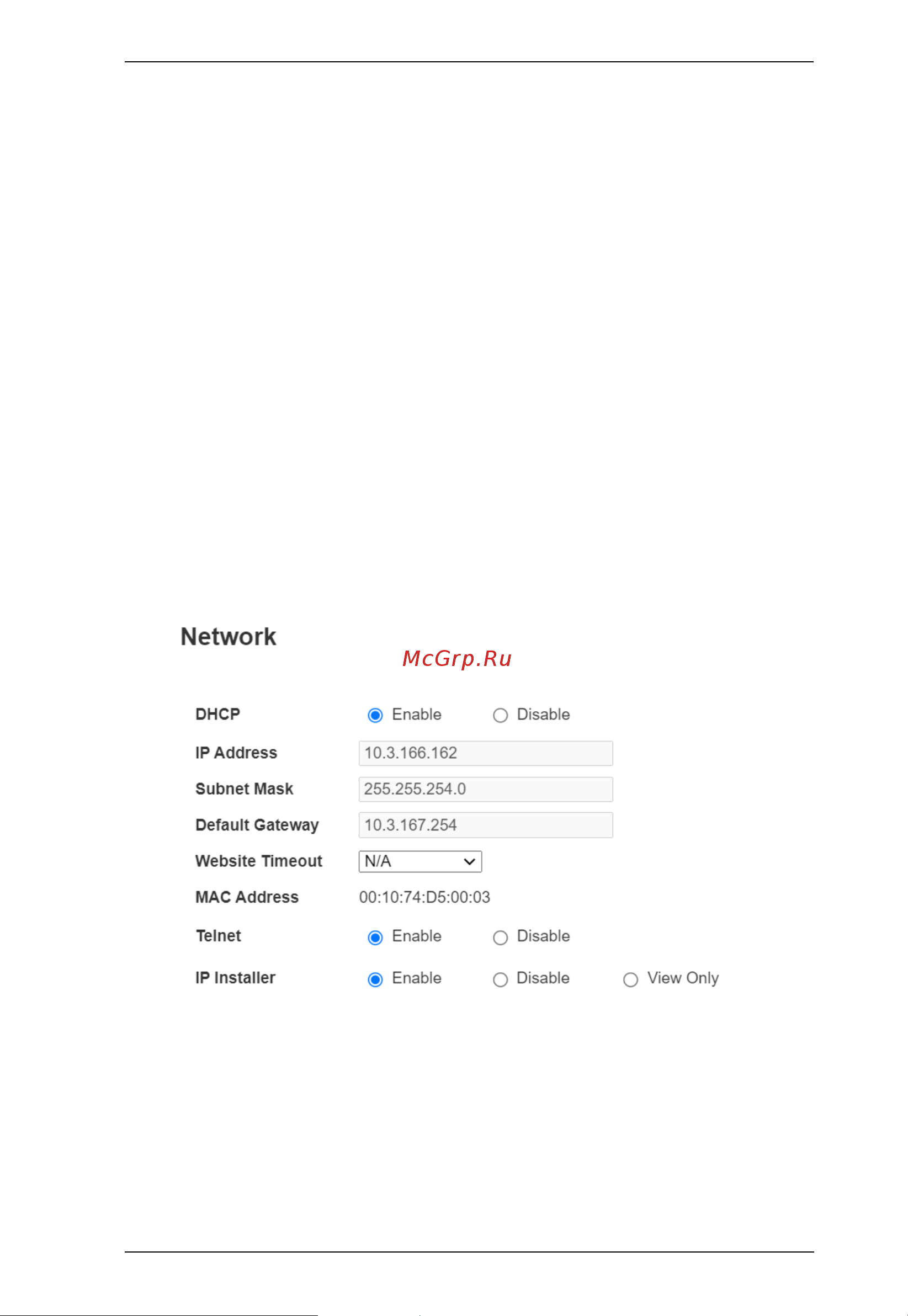

1. In the VM5404HA / VM5808HA web interface, go to Settings >
Maintenance > Network. This page appears.
2. Configure the settings as needed.
DHCP
Enable – Select this option to allow the DHCP server to
automatically assign an IP address to the VM5404HA /
VM5808HA.
Disable – Select this option to assign a static IP address for the
device.
