VM5404HA / VM5808HA User Manual
8
Installation
1. Use a grounding wire to ground the unit by connecting one end of the wire
to the grounding terminal, and the other end of the wire to a suitable
grounded object.
Note: Do not omit this step. Proper grounding helps to prevent damage to
the unit from surges or static electricity.
2. Connect up to 4 (VM5404HA) or 8 (VM5808HA) HDMI video sources to
the HDMI input ports
3. Connect up to 4 (VM5404HA) or 8 (VM5808HA) HDMI display devices
to the HDMI output ports
4. To extract audio from one of the connected input sources, connect a
speaker to the audio out port.
5. To preview video inputs in a multiview screen, connect a display to the
local HDMI out port.
6. To access the unit’s settings via the web interface, connect the unit to a
network switch via the LAN port with an Ethernet cable.
7. To operate the unit via RS-232 commands, connect a hardware/software
controller to the unit.
8. Plug a power cord to the unit and then put the power switch to ON.
9. Make sure all the connected devices are properly grounded to prevent
damages from power surges or static electricity before powering these
devices.

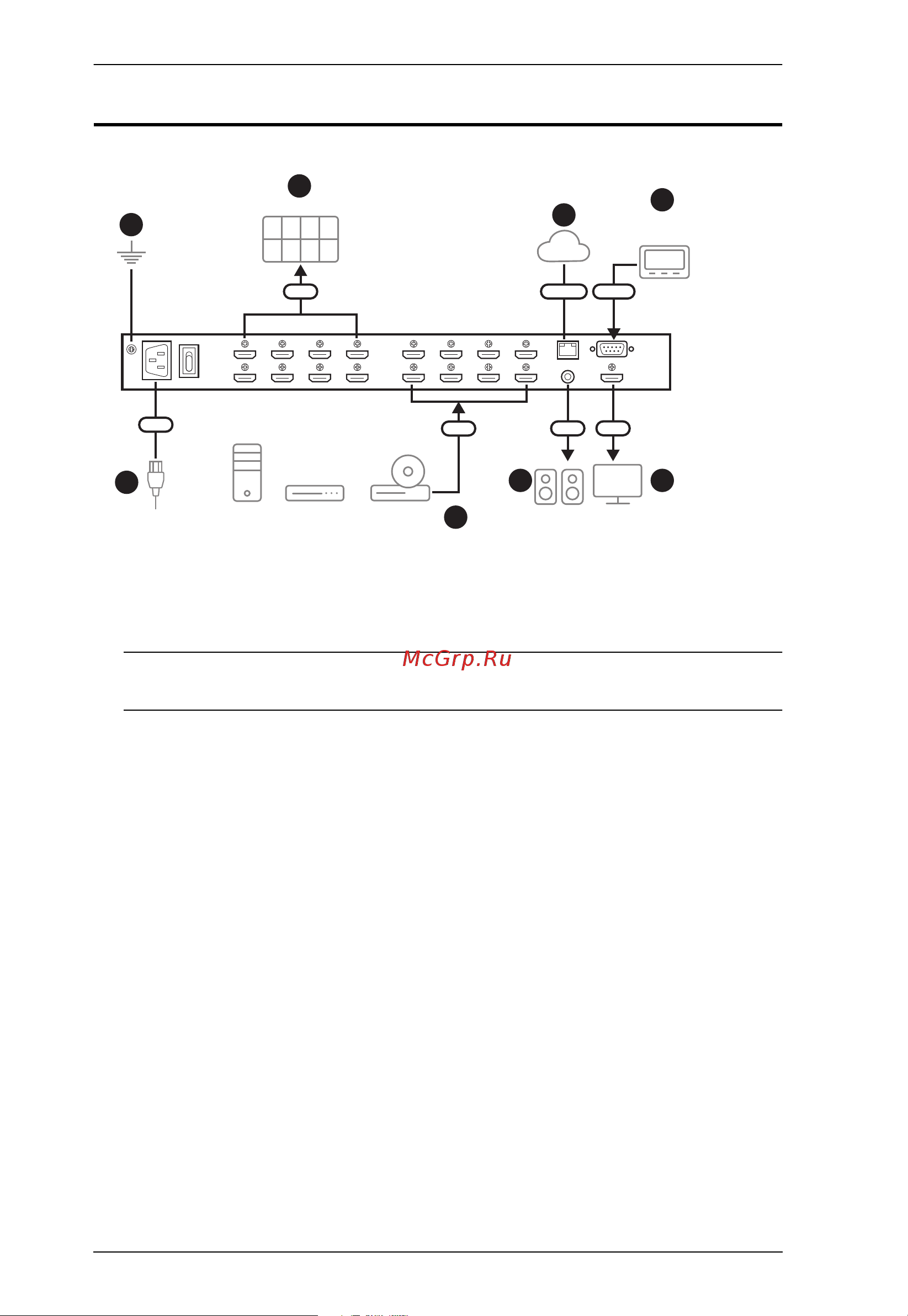

Power Cord
Power
HDMI
HDMI
Ethernet
Network
HDMI
Hardware /
Software Controller
RS-232
MonitorsSpeakers
5
2
4
1
6
7
3
8
VM5808HA
Rear View
PC
DVD /
Media Player
Blu-ray
Player
or or
Audio
Video Wall
