Aten VM5808HA [29/124] Serial port setting

Chapter 3. Front Panel Configuration

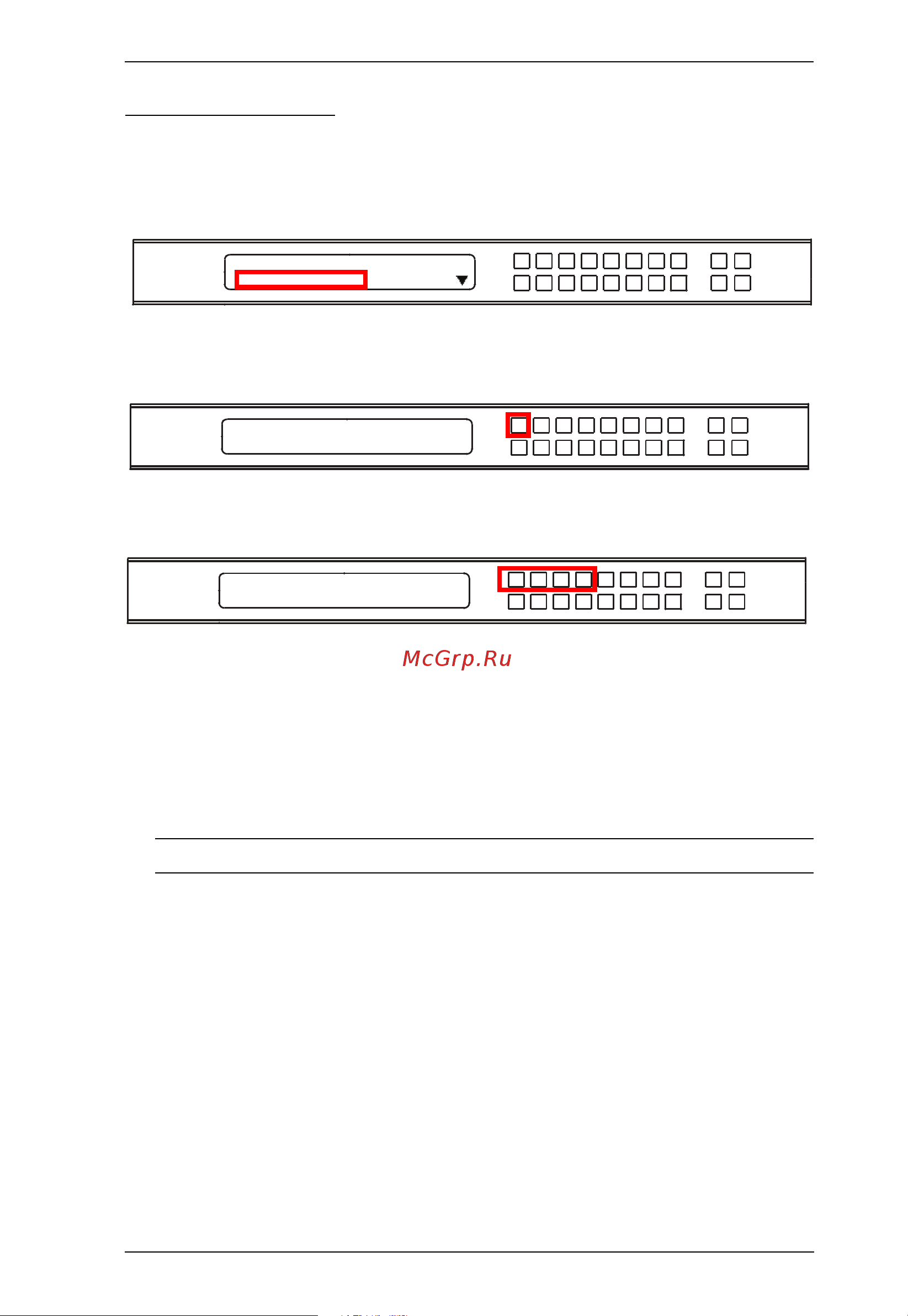

Serial Port Setting

To configure the VM5404HA / VM5808HA’s baud rate for its serial port

connection, do the following:

1. From the Menu page, select Serial Port Setting.

2. Select Baud Rate Setting from the Serial Port Setting submenu by

pressing 1:

3. Press pushbuttons 1–4 to make your selection.

Baud Rate options are:

 1: 9600

 2: 19200

 3: 38400

 4: 115200

Note: The default baud rate is 19200.

4. Press Menu to return to the Menu page.Press Cancel to return to the

previous level of menu.

1: IP Setting

2: Serial Port Setting

8: Next

1: Baud Rate Setting

1: 9600 3: 38400

2: 19200 (In use) 4: 115200
