Aten VM5808HA [42/124] Main page

VM5404HA / VM5808HA User Manual

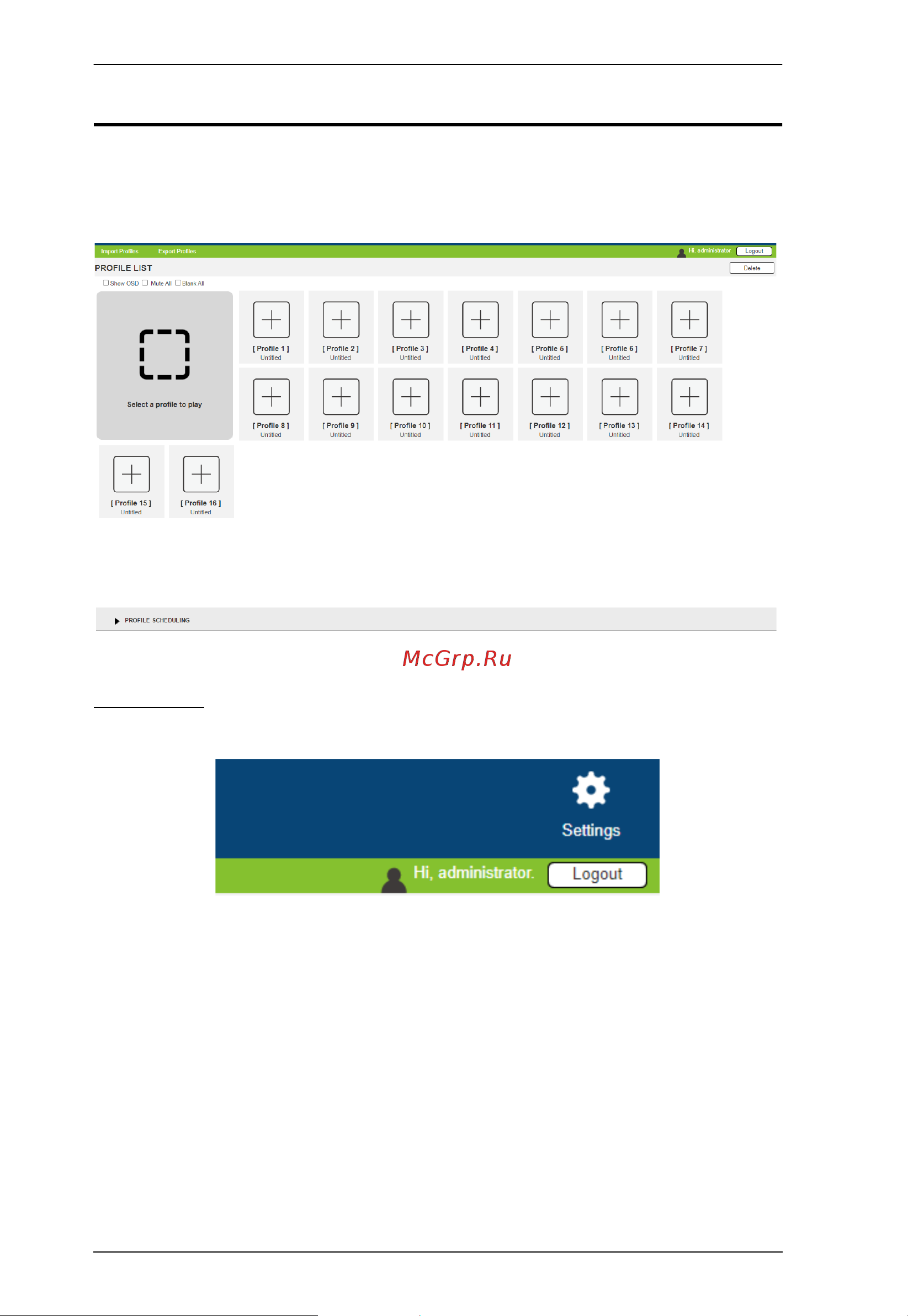

Main Page

The Main Page opens to the Profile List. This is where you configure the input

to output connections by creating profiles. The page is divided into three parts:

the Menu Bar, Profile List, and Profile Scheduling.

Menu Bar

The Menu Bar consists of the Settings icon and Logout button.

 Click Settings to enter the System Settings (see page 50).

 Click the Logout button to log out of the GUI.
