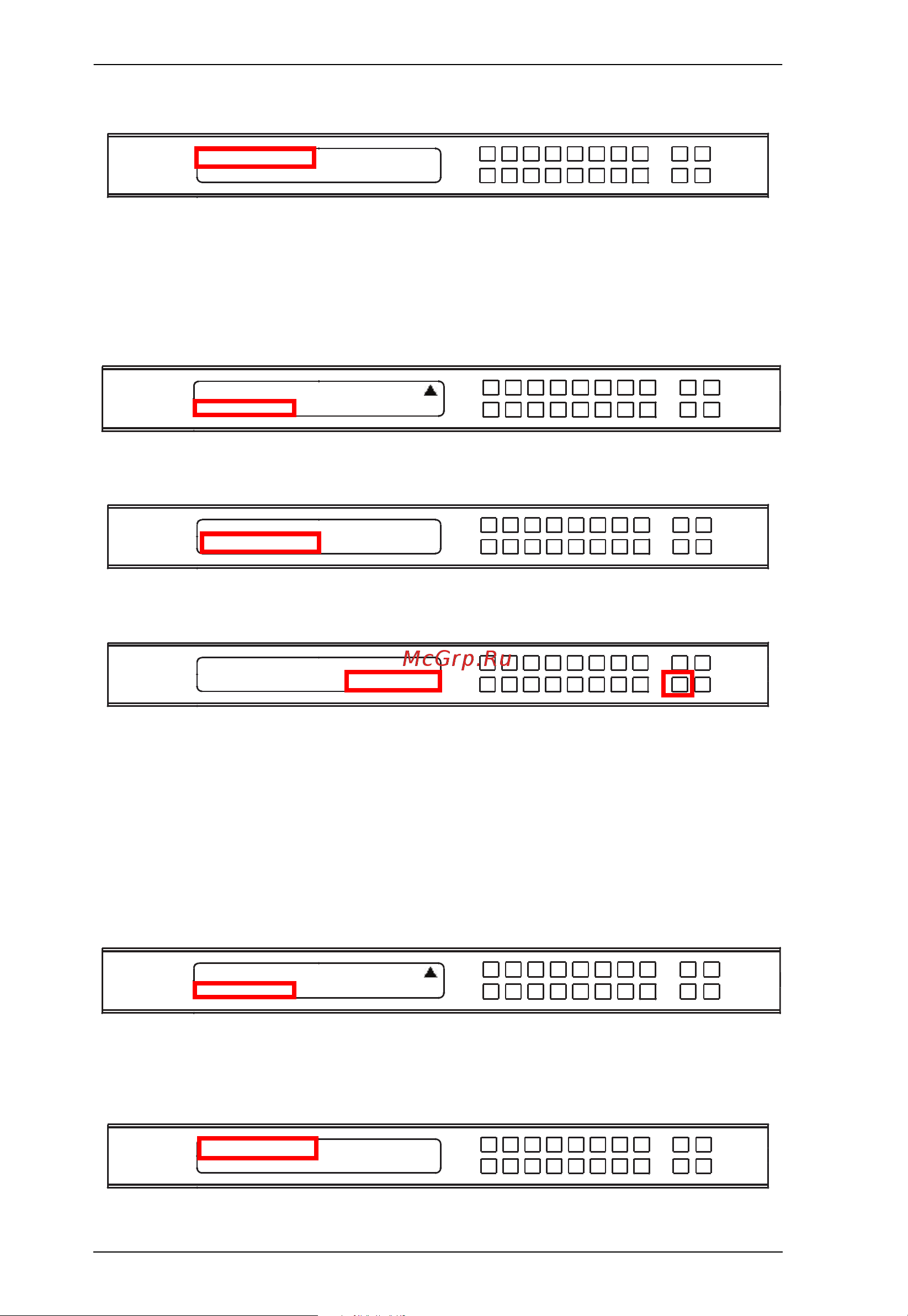

VM5404HA / VM5808HA User Manual
22
3. Press an input pushbutton to select an input source for audio extraction.
Muting/Unmuting a Profile
1. From the Operation Mode page, press 8 or Next to go to the next page, and
then press pushbutton 2:
2. From the Output Status page, press 2 to select Audio Extract.
3. Press the Profile pushbutton to mute or unmute.
Changing the Display Resolution
To configure the Output Resolution settings for each output port, do the
following:
1. From the Operation Mode page, press 8 or Next to go to the next page,
then press pushbutton 2:
2. From the Output Status page, press 8 or Next to locate the Output
Resolution option, and then press 1.
Audio Input: 1
Mute: NA Prole: Mute
1: OSD
7: Back
2: Output Status
1: Video
2: Audio Extract: 1
Audio Input: 1
Mute: NA Prole: Mute
1: OSD
7: Back
2: Output Status
1: Output Resolution
