VM5404HA / VM5808HA User Manual

3. Configure the input to output connections for your profile, see Configuring

Video Settings of a Profile, page 39.

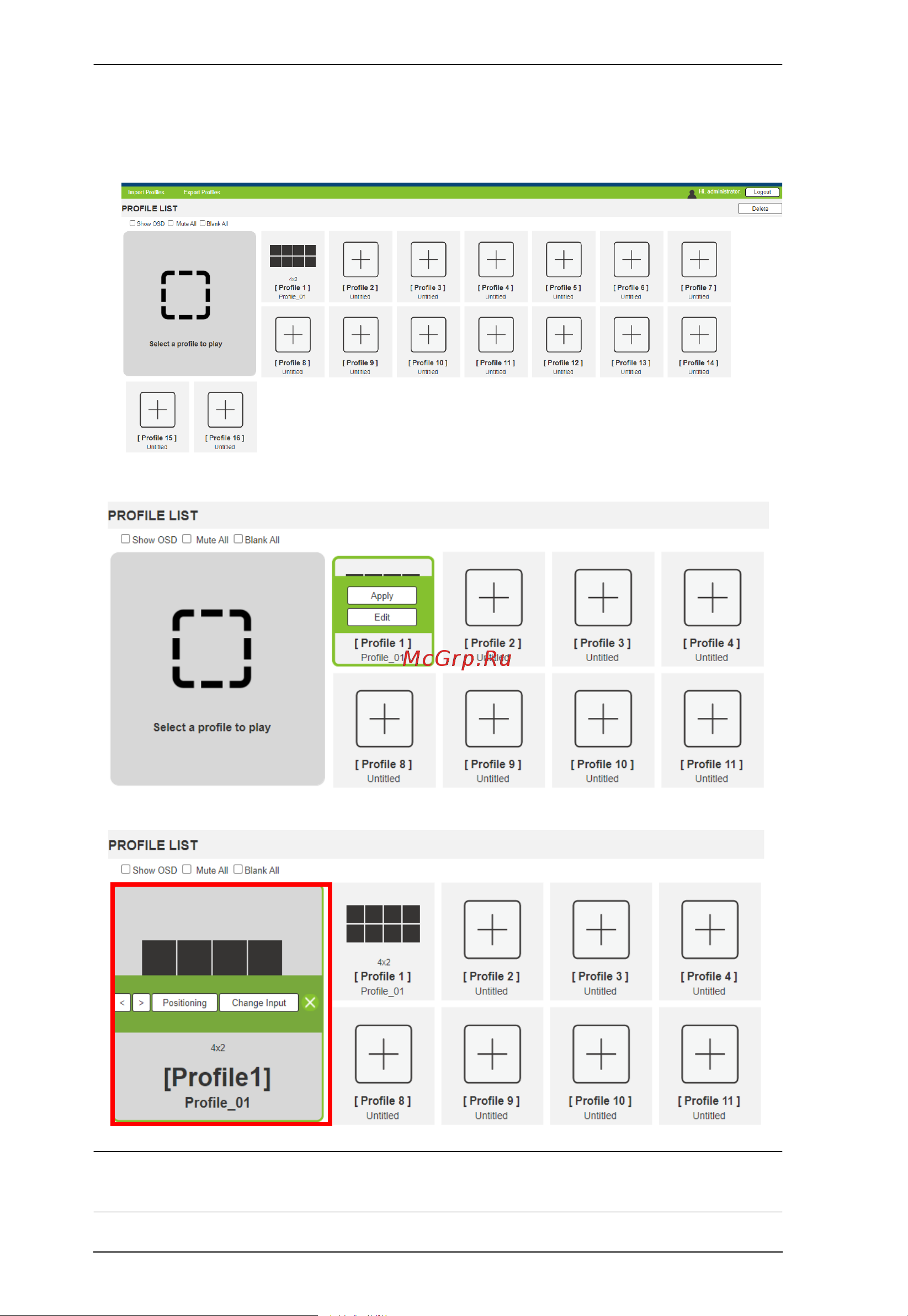

4. New profiles appear in the Profile List, as shown here:

5. Select the profile and click Apply.

6. The profile appears in the large Play window and the connections start:

Note: More information about Profile List page options are provided on the

next page.
