VM5404HA / VM5808HA User Manual
12

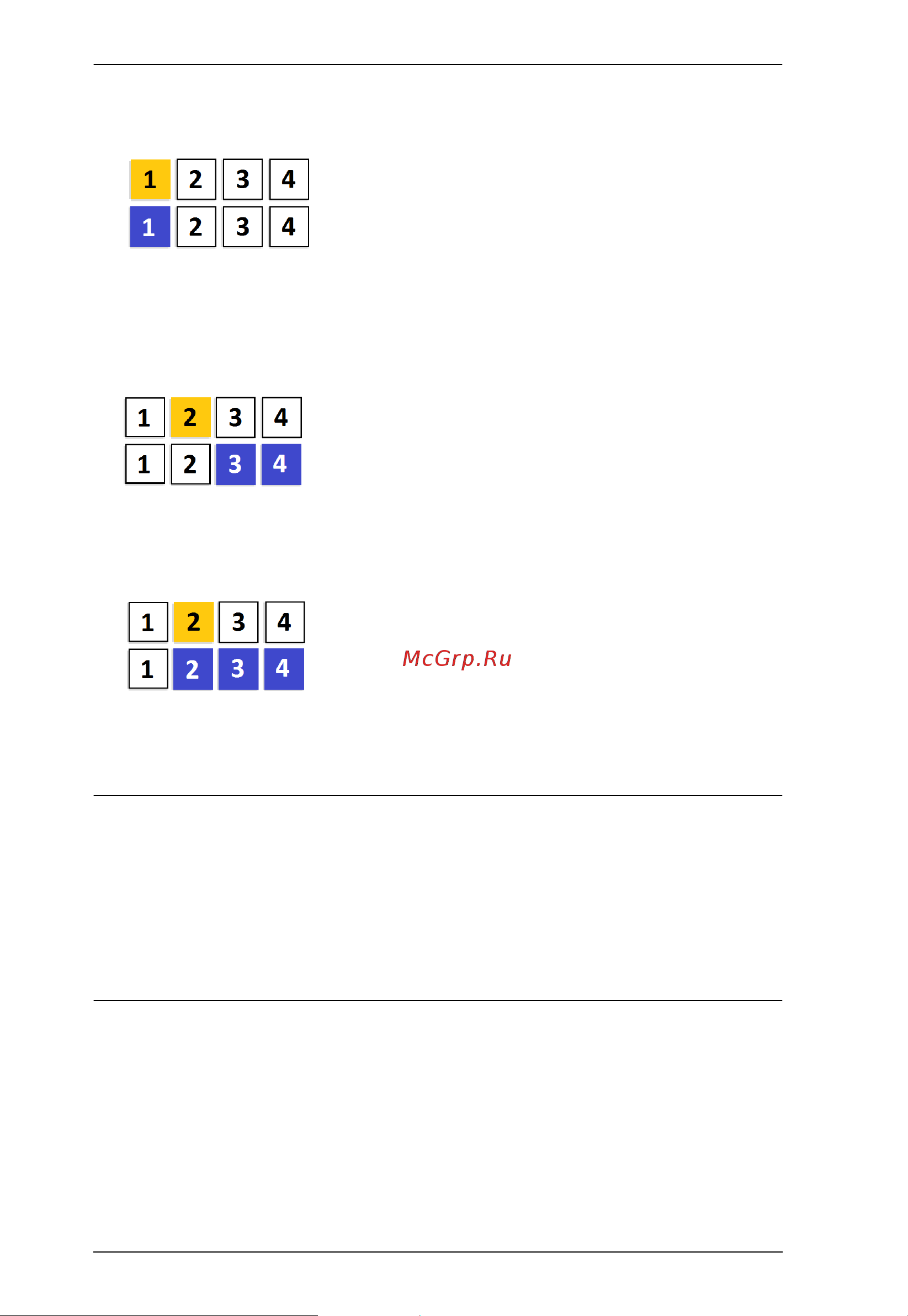

In the example below, Output port 2 has been disconnected from Input port
1.
3. To switch to another Input port, press any Input port pushbutton. The
Output port LED(s) tied to the said Input port light up.
In the example below, pressing Input port 2 shows it is tied to Output ports
3 and 4.
4. To connect Output port 2 to Input port 2 in the example above, then press
the Output port 2 pushbutton. The Output port 2 pushbutton lights up. This
indicates that Input port 2 is now connected to Output ports 2, 3 and 4.
Once the signal from the selected Input port is successfully tied to the Output
port, the LEDs turn off and the LCD information is updated.
Note:
Pressing an Input port a second time deselects it.Input ports that are not
tied to any output port are not indicated in the LCD screen.
Pressing the Cancel pushbutton once to stop the input assignment and all
the pushbutton LEDs are turned off.
After 10 seconds of inactivity, all the LEDs turn off.
