Chapter 4. Browser Operation
45

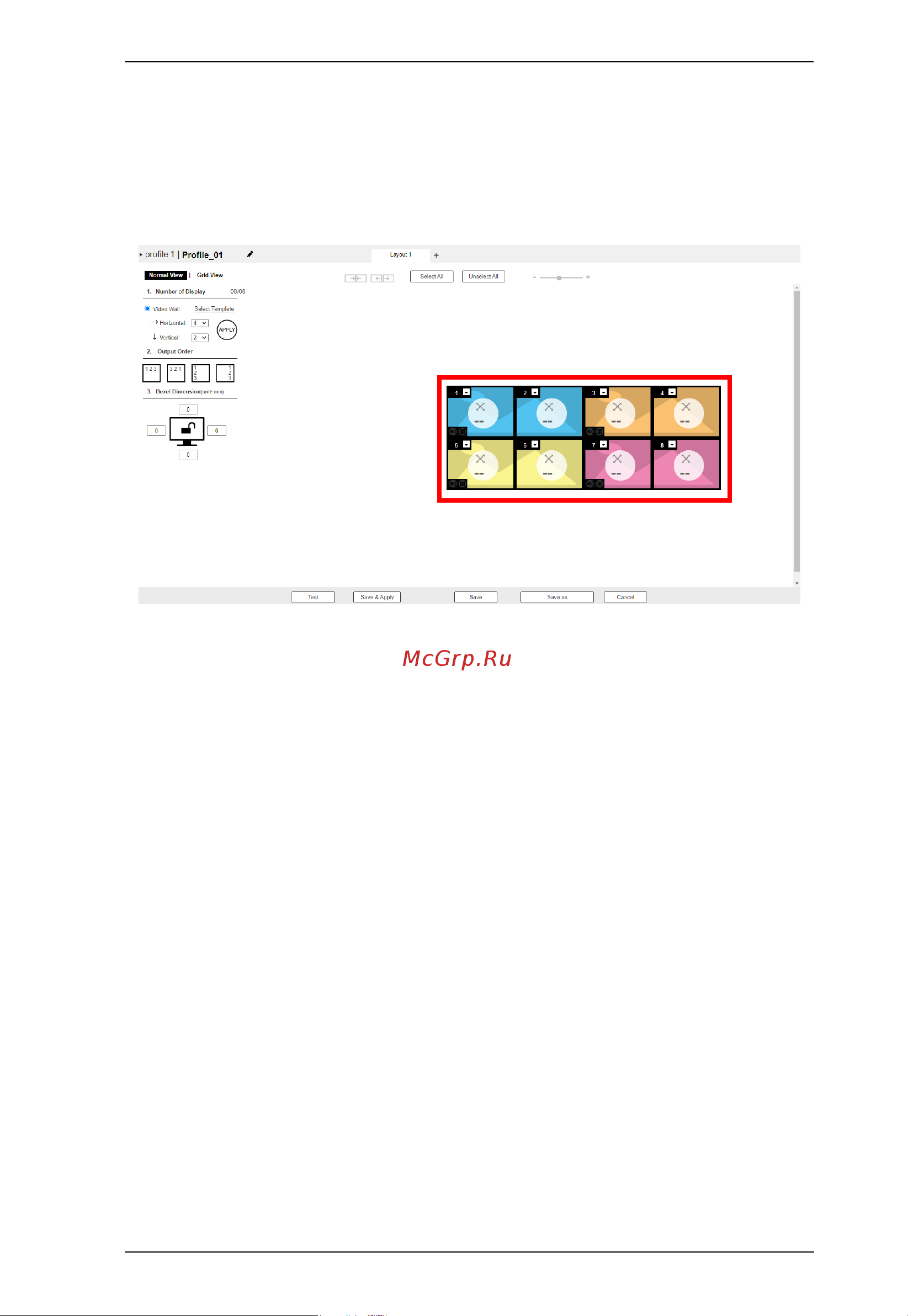

Video Wall Settings
Each icon represents an output port and the connected display. Use the icons to
create Independent and Grouped outputs. Independent outputs will display
video on a single monitor. Grouped outputs will display video across multiple
monitors as one large screen,
Click an icon to choose its Output and Video Input from the Display
Preference menu (see page 46).
Click multiple icons to Group Outputs (see Grouping, page 47) and
choose the Video Input from the Display Preference menu.
Use
+
next to Display Layout _1 to create additional layouts under
the same profile.
Click the PEN icon or name to edit the profile name.
Click Select All to select all outputs.
Click Unselect All to unselect all outputs.
Click Test to play current profile without saving.
Click Save & Apply to save the profile and put it in the Play window
(see page 35).
Click Save to save the profile.
Click Save as to save the profile as a different profile number.
Click Cancel to discard changes and return to the Profile List.
