Chapter 4. Browser Operation

Customized Mode

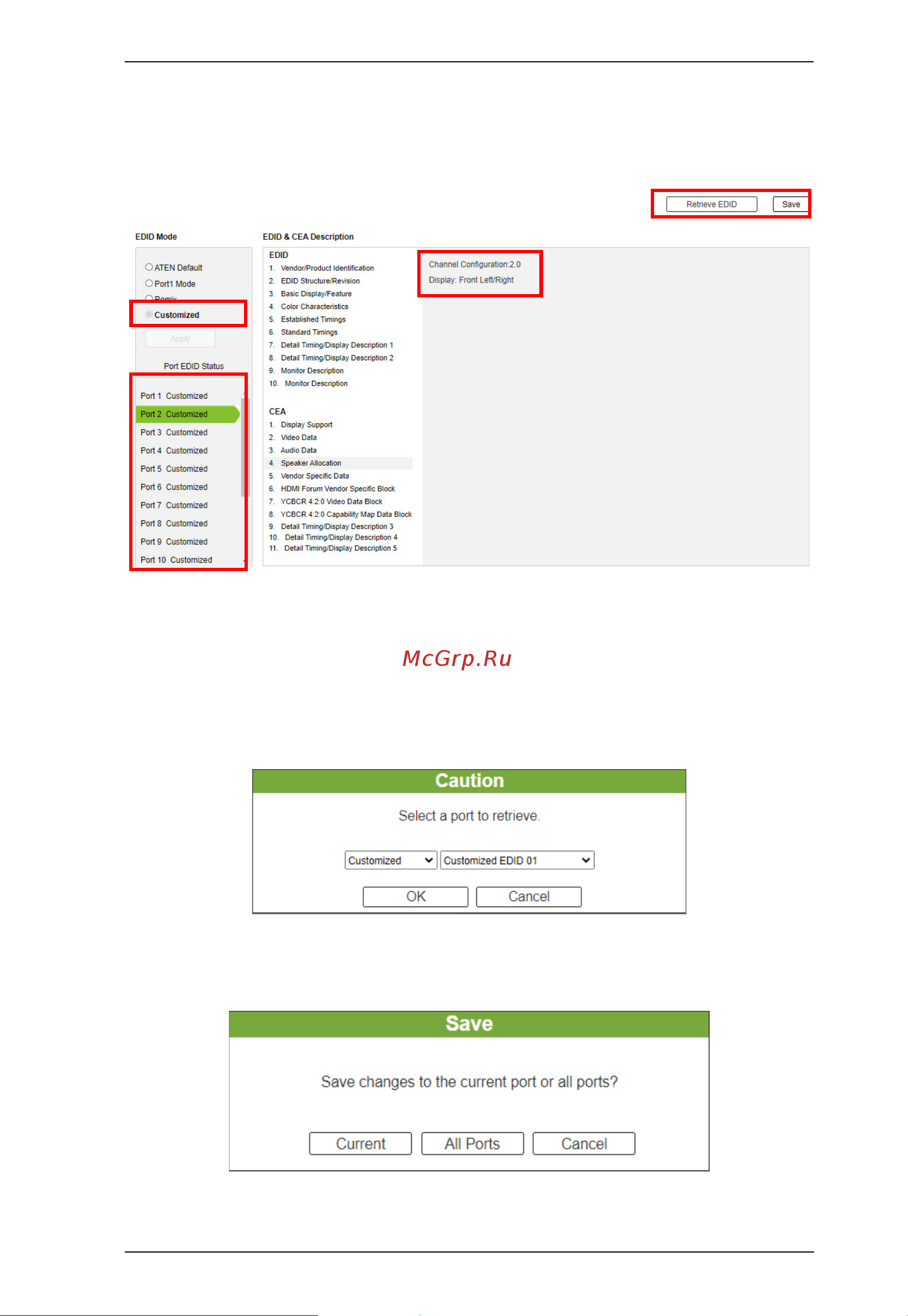

Use the Customized mode to automatically retrieve and save the EDID of a

connected monitor/display device to an input source port.

 In the left panel, select Customized from the EDID Mode section and

click Apply.

 Port EDID Status: Select the input source port to which you want to store

the EDID configuration.

 Retrieve EDID: Click this button to retrieve the EDID of a selected port.

Select a port using the pop-up screen.

 The right panel displays a summary of the acquired EDID settings that

you can edit. Click Save and select the configuration for the Current

Port or All Ports for the duration of the session.
