VM5404HA / VM5808HA User Manual

Audio Data

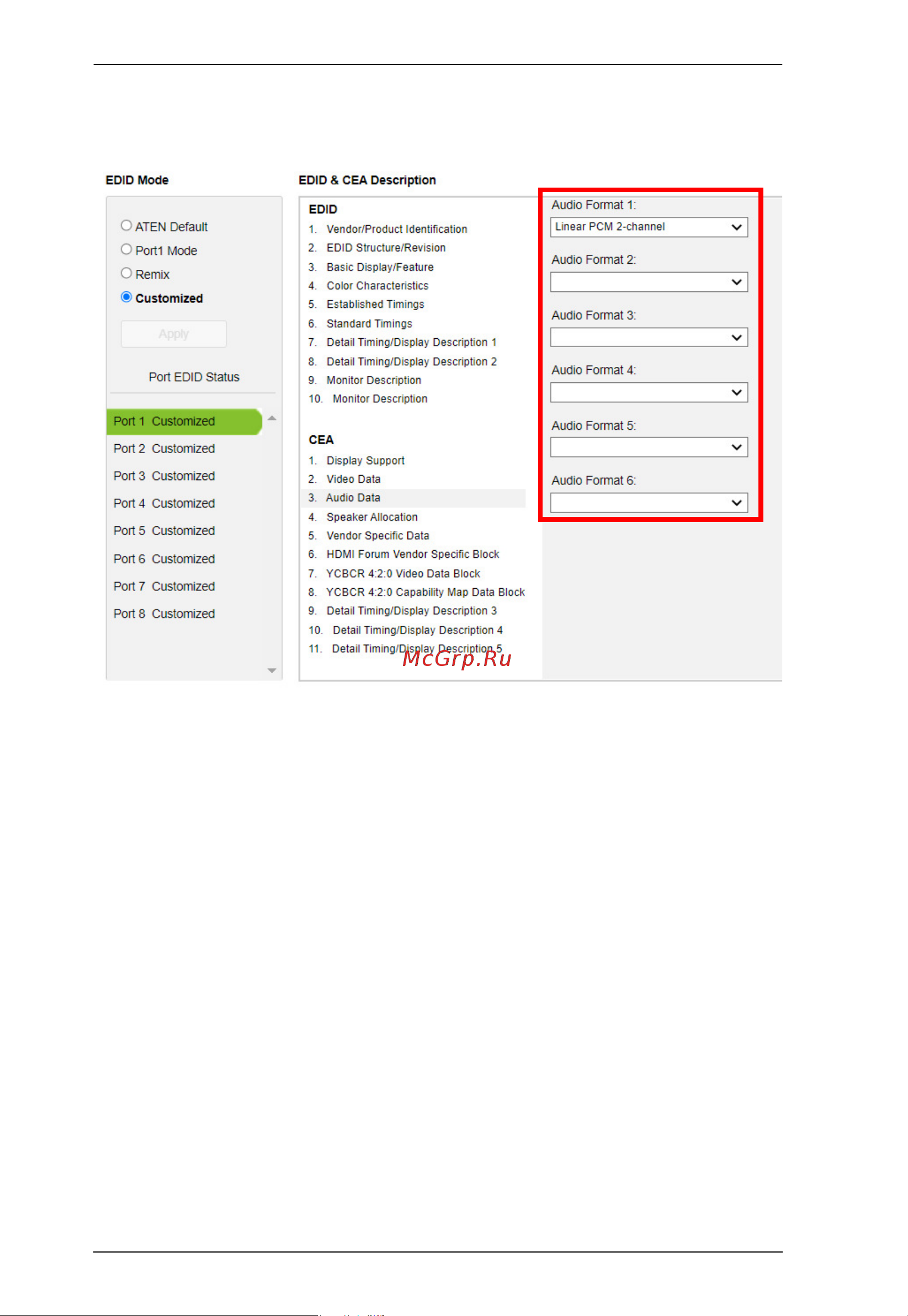

This screen lets you select advanced audio configurations for your device.

Use the drop down menu to select the Audio Format (1~6) applicable to your

audio output device, and click Save to apply the changes.
