Chapter 4. Browser Operation

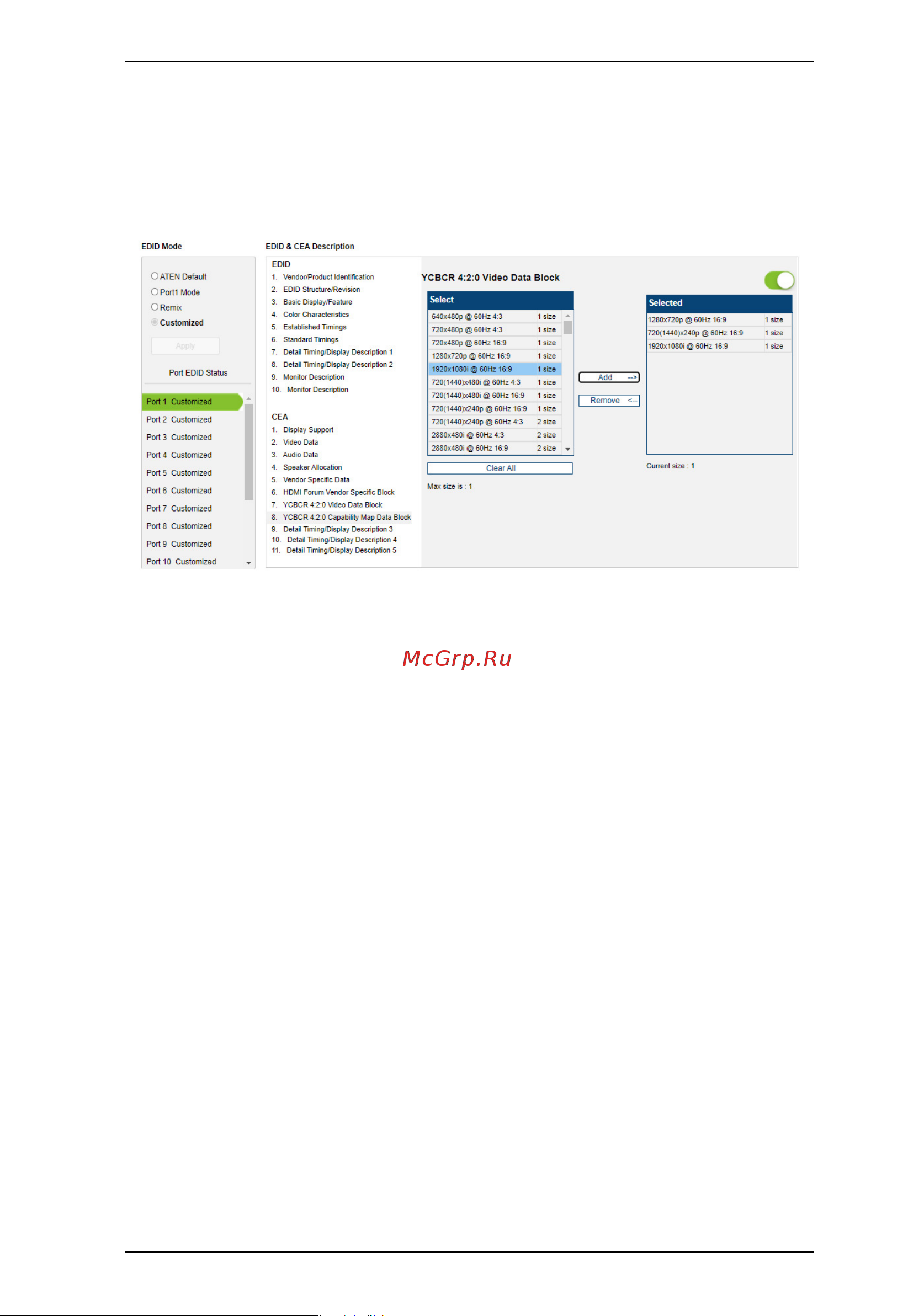

YCBCR 4:2:0 Compatibility Map Data Block

Use this page to configure a list of supported video resolutions for YCBCR

4:2:0 Compatibility Map Data Block and select one to be applied. Use the

toggle button at the top-right to enable or disable this feature.

 To add a supported resolution, click an item in the Select column, and then

click Add.

 Use the drop down menu Native to adjust the supported resolution of the

display.
