Setup Mode
The Key/Velocity (KEY-VEL) Page
7-13
Oset and Scale work together. If scaling takes the velocity out of the ballpark — for example,
you want to set it to 300% but that puts all of your notes at maximum velocity — using a negative
oset, say around -60, can make it possible to still play at dierent volumes, although your curve
will still be a lot steeper than normal. If you use a negative scaling, then you must use an oset:
otherwise all of your velocities will end up as zeroes (well, ones actually, since a MIDI note-on
with velocity zero is something else). So to get true inverse scaling (that is, minus 100%), you
must set an oset of 127 to get the full range of velocities. Setting the oset to 127 and the scale to

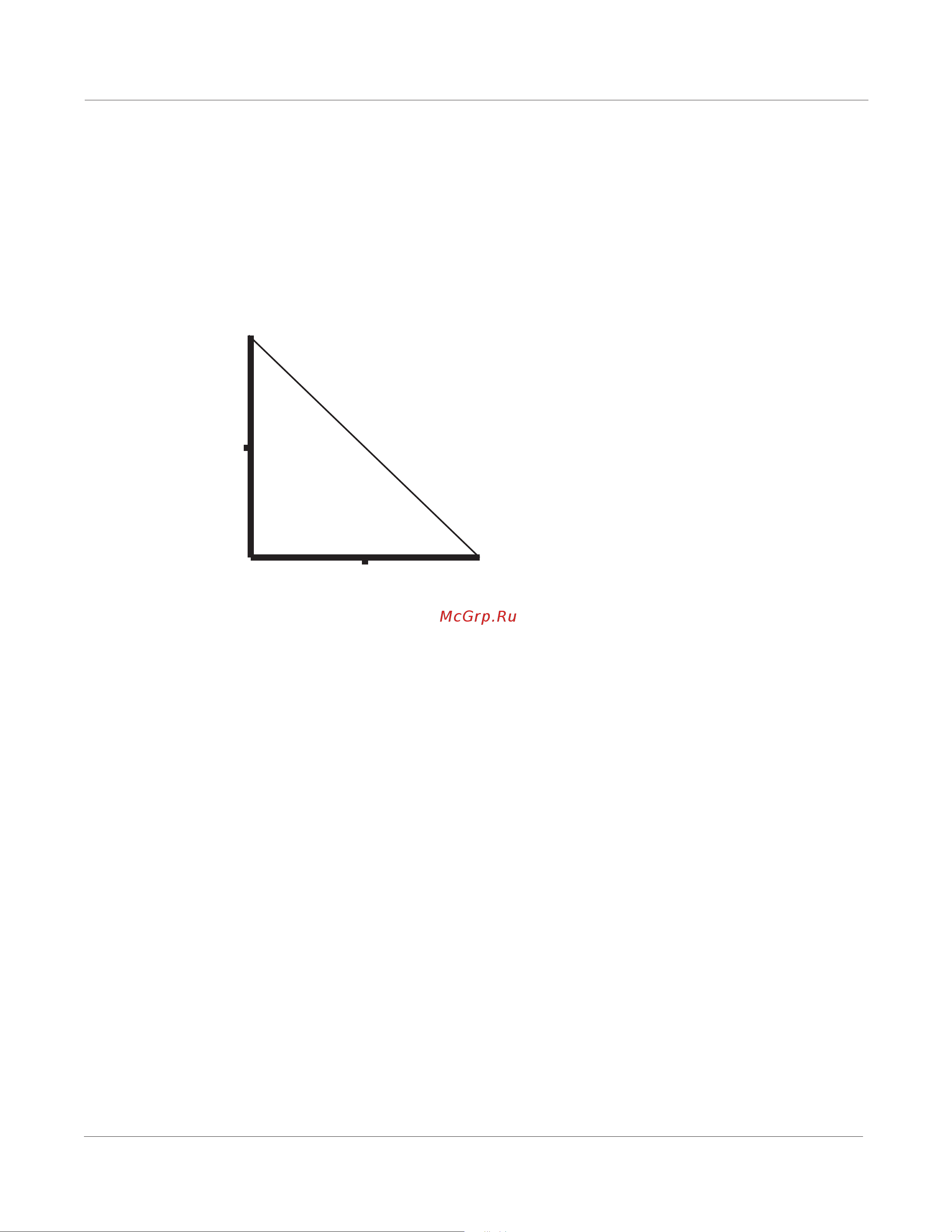

-100% produces a slope like this (which is the same as the reverse linear curve):
Note that Oset and Scale aect only MIDI velocities; that is, these parameters don’t change
Velocity Tracking in the programs themselves. Therefore, some programs (such as organ sounds,
which often have low VelTrk values) may respond only subtly to Oset and Scale, or not at all.
MIDI Velocity
127
0
127
Strike Velocity
64
64
