15-12
Tutorial: Song Mode

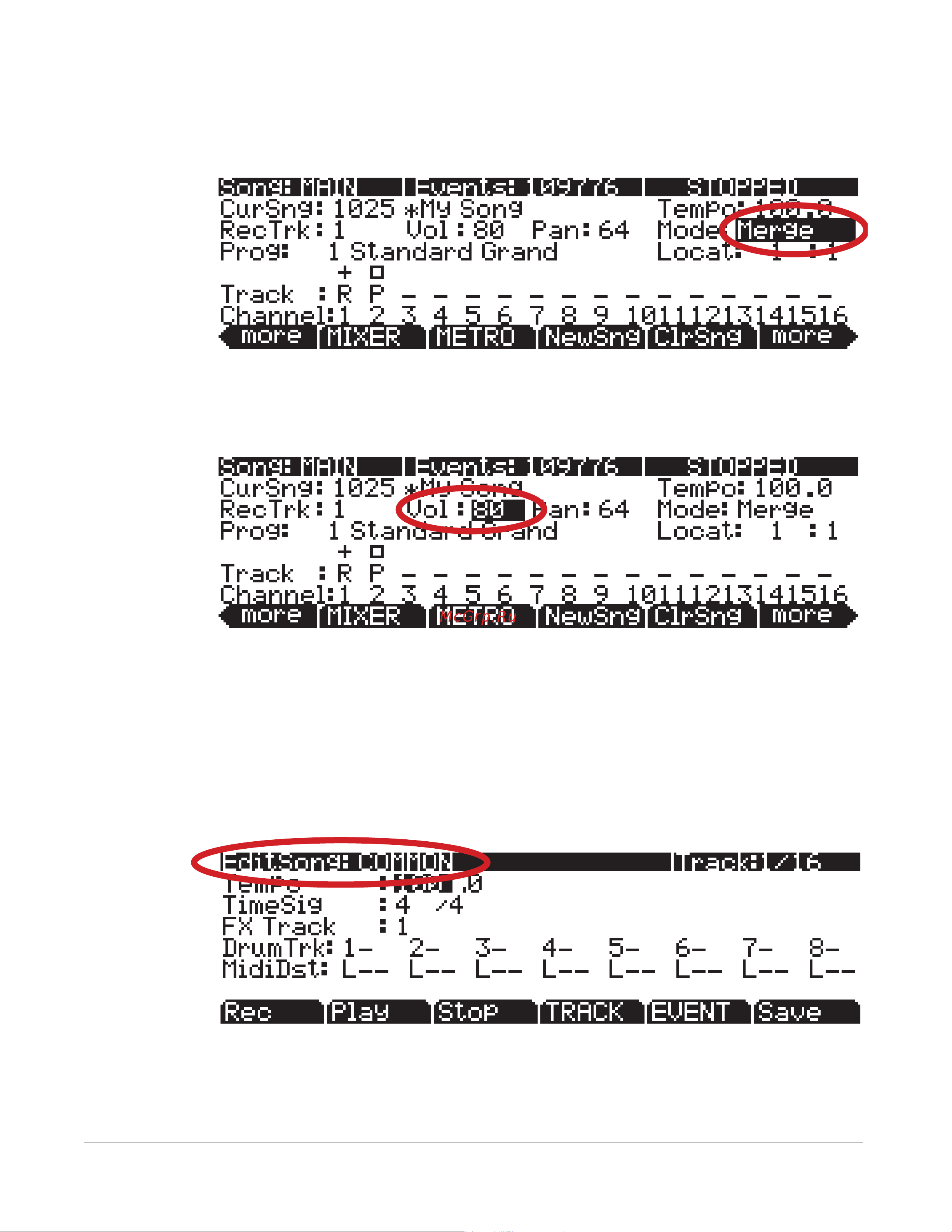

2. Press the Record button, then press Play/Pause.
3. Select the Vol parameter and adjust it with the alpha wheel while the sequencer is
recording. Any changes to the Vol parameter will be recorded as data in the current track.
4. When you are nished, press the Stop button. You will be able to review and save your
changes just as in Step 4 of Part 3 (see above.)
Part 6 c: Erasing Volume Automation
If you’ve saved a song with volume automation and you wish to change or remove it afterwords,
follow the steps below to erase a selection of volume automation:
1. In Song mode, press the Edit button with anything except the Prog parameter selected.
This brings you to the current song’s EditSong:COMMON page.
2. On the EditSong:COMMON page, press the TRACK soft button (see below.) This brings
you to the EditSong:TRACK page.
