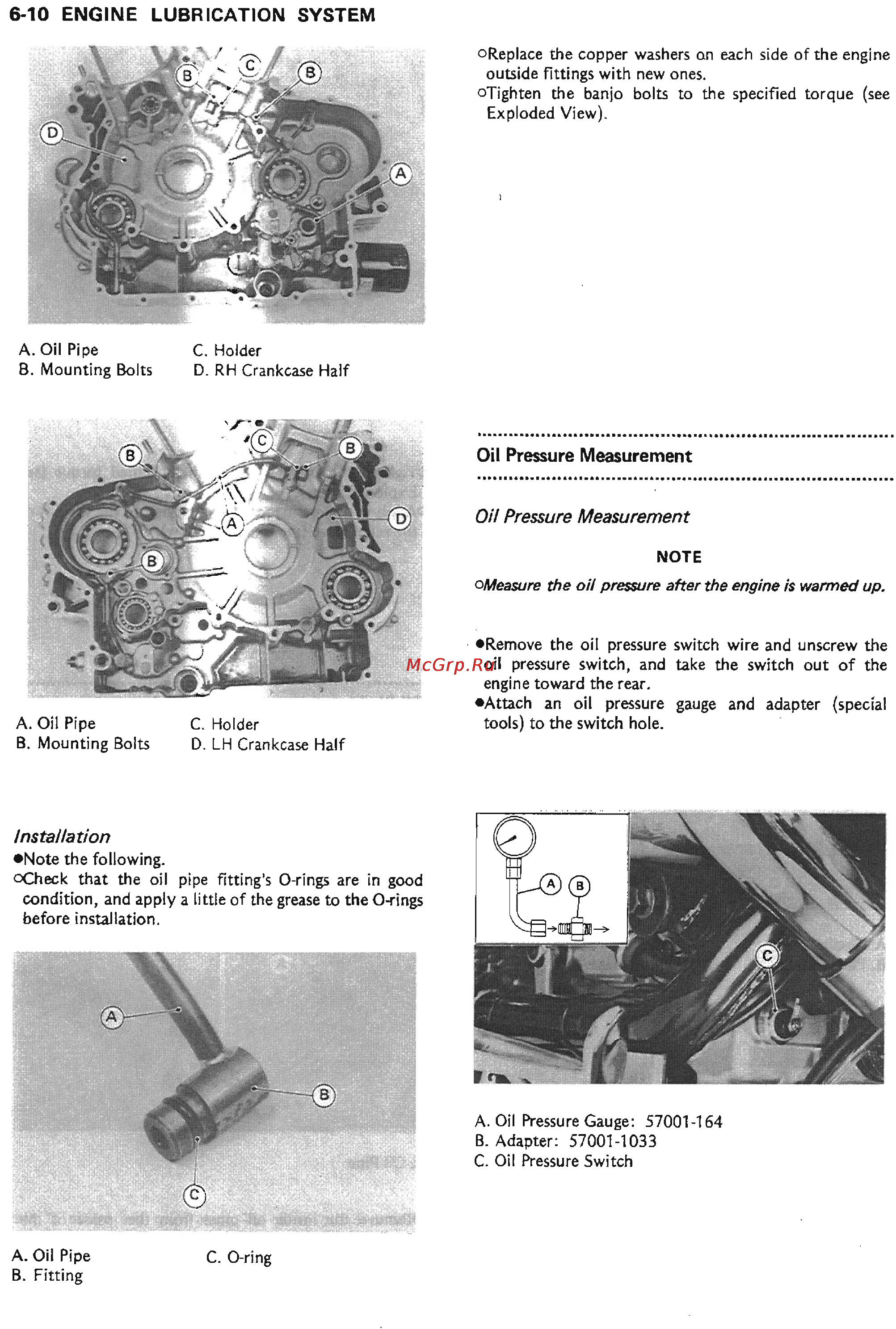

SlO
ENGINE
LUBRICAT]ON
SYSTEM
A. Oil Pipe
B. Mounting
Bolts
A. Oil Pipe
B. Mounting
Bolts
C- Holder
D. RH Crankcase
Half
lnsallation
.Note
the following.
ocheok
that
the oil
pipe
fitting's O{ings
are in
good
condition, and apply
a little of the
grease
to the O{ings
before installation.
A. Oil Pipe
B. Fitting
oReplace
the copper washers
on
each
side of the
engine
outside fitting5 with new
ones.
oTighten
th€ banio
bolts
to
the specified torque
(see
Exploded View).
Oil
Pressure
Measurement
O
i I Presu re M easu rement
NOTE
oMaetre
the oil
praJe
after the engine is watmed up.
.Remove
the oil
pressure
switch
wire and unscrew
the
oil
pressure
switch,
and take t}te switch
out of the
engine toward
the rear.
.Attach
an oil
pressure
gauge
and adapter
(special
tools) to the switch hole.
A. Oil
Pressure
Gauge;
57001-'154
B. Adapter: 57001.1033
C. Oil
Pressure
Switch
C.
Holder
D.
LH Crankcase Half
C.
Oring
