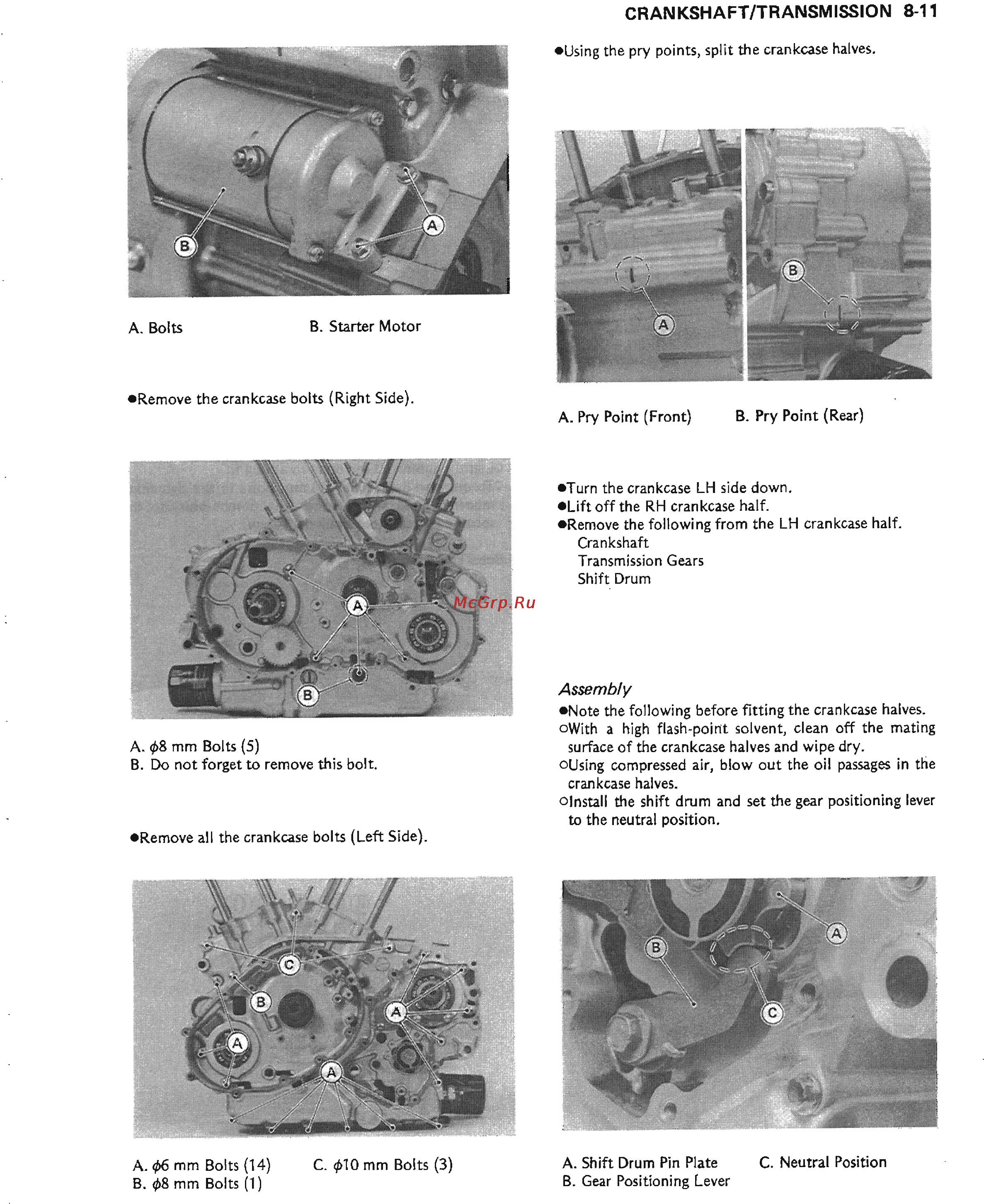

A.
Bolts
B. Starter
Motor
rRemove
the cnnkcase
bolts
(Right
Side).
A.
08
mm Bolts
(5)
B. Do not fotget to
remove tJ|is bolt.
.Remove
all tl|e crankcase
bolts
(Left
Side).
CRANKSHAFT/TRANSMISSION
8-11
.Using
the
pry points,
split
t}|e crankcas€
halves.
A.
Pry Polnt
(Front)
B.
Pry Point
(Rear)
aTurn
the
crankcase LH side
down.
.Lift
off the RH
crankcase half.
oRemove
the
following
from the LH
crankcase half.
Crankshaft
Transmission
Gears
Shift Drum
Asrr.mbly
.Note
the following before
fitting the
crankcase
halves.
oWith
a high flash-poirit solvent,
olean off the
mating
surface of tie crankcase
halves and wipe dry.
ousing
compressed air, blow out
the oil
passages
in the
crankcase halves.
olnstall
the shift drum and set
tie
gear positioning
lever
to the
neutral
position.
A. Shift
Drum Pin Plate
B. Gear
Positioning Lever
A.
06
mm
Bolts
(14)
B.
08
mn Bolts
(1)
C.
010
mm Bolts
(3)
C. Neutral
Position
