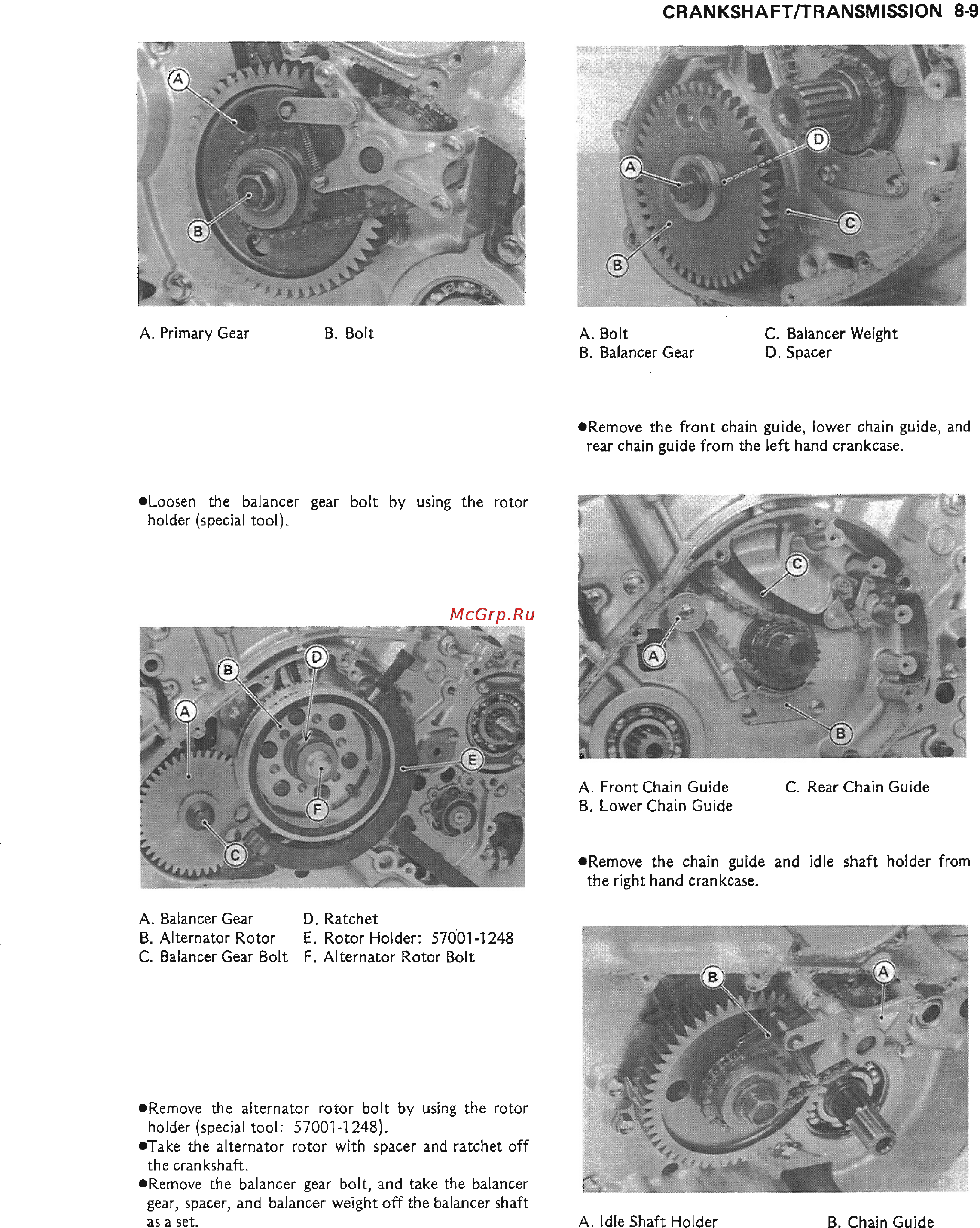

CRANKSHAFT/TRANS|MISSION
8.9
A. Primary Gear
oLoosen
the balancer
holder
(special
tool).
gear
bolt by
using
the rotor
A.
Bolt
B.
Balancer Gear
C. Balancer Weight
D.
Spacer
A. Balancer Gear
B. Alternator Rotor
C. Balancer Gear Bolt
D.
Ratchet
E. Rotor
Holder: 57001-1248
F. Alt€rnator Rotor Bolt
.Remove
th€
front chain
guide,
lower chain
guide,
and
rear chain
guide
from the left
hand
crankcase.
A. Front Chain
Guide
B. Lower Chain Guide
C. Rear Chain
Guide
.Remove
the chain
guide
and idle shaft
holder from
the right
hand crankcase.
aRemove
the
alternator
rotor bolt by using the rotor
holder
(special
tool: 57001-1248).
.Take
the alternator rotor with spacer and ratchet off
the
crankshaft.
.Remove
the balancer
gear
bolt, and
take the
balancer
gear,
spacer, and
balancer
weight off the balancer shaft
A.
ldle
Shaft Holder B.
Chain Guide
