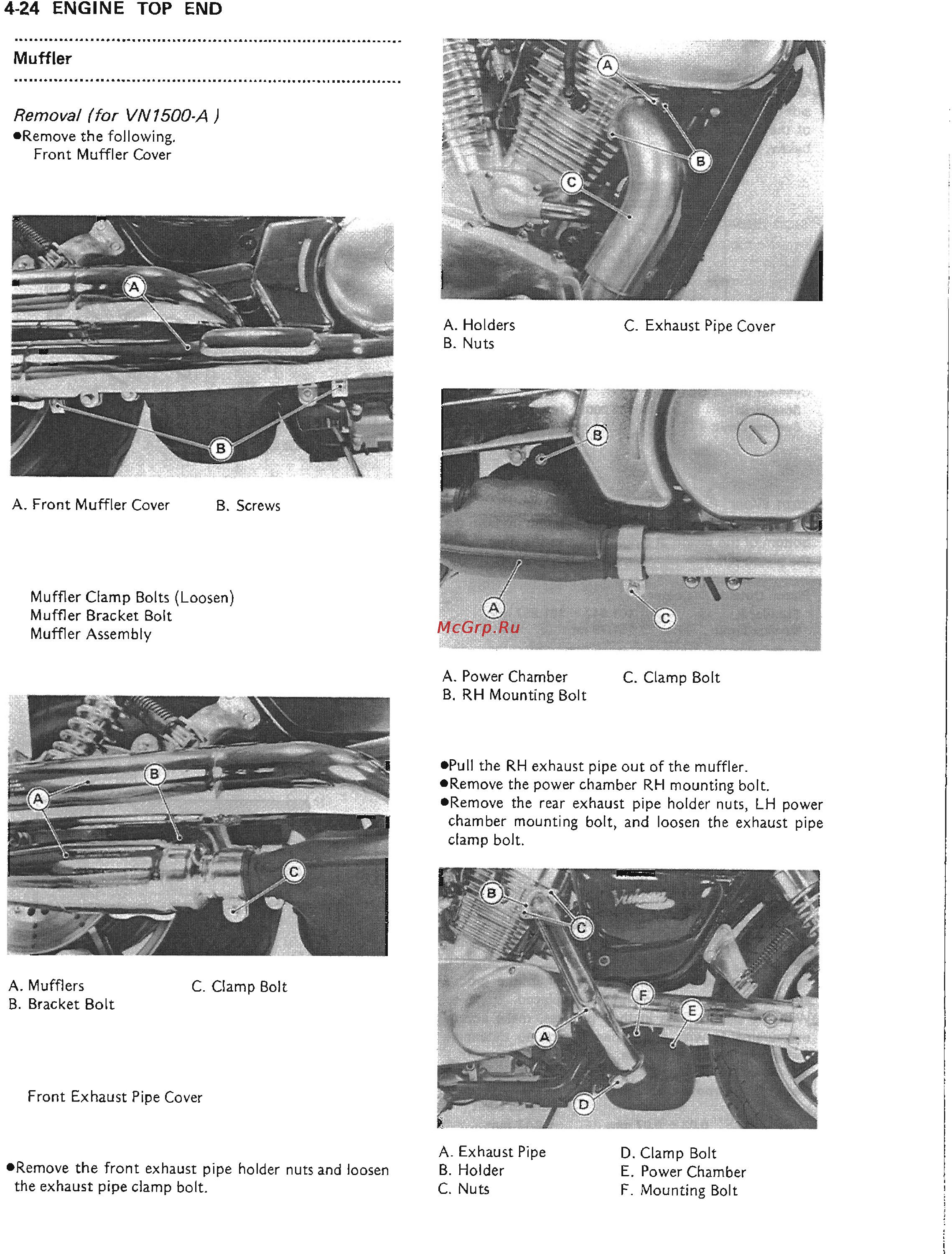

ENGINE
TOP END
Muffler
Removal
(for
VN1500-4
)
oRemove
the following.
Front Muffler
Cover
A, Front Muffler
Cover
B. Screws
Muffler
Clamp Bolts
(Loosen)
Muffler Bracket
Bolt
Muffler Assembly
A. Holders
B. Nuts
A. Exhaust Pipe
B- Holder
C.
Nuts
C.
Exhaust
Pipe
Cover
D. Clamp
Bolr
E. Power
Chamber
F. Mounting
Bolt
A. Power
Chamber
C. Clamp
Bolt
B. RH Mounting
Bolt
.Pull
the RH exhaust
pipe
out of the muffler.
.Remove
the
power
chamber
RH mounting
bolt.
.Remove
the rear
exhaust
pipe
holder
nuts,
LH
power
chamber
mounting
bolt, and loosen
the exhaust
pipe
clamp
bolt.
A. Mufflers
B. Bracket Bolt
C. Clamp Bolt
Front
Exhaust Pipe
Cover
aRemove
the front
exhaust
pipe
holder
nuts
and loosen
the exhaust
pipe
clamp
bolt.
