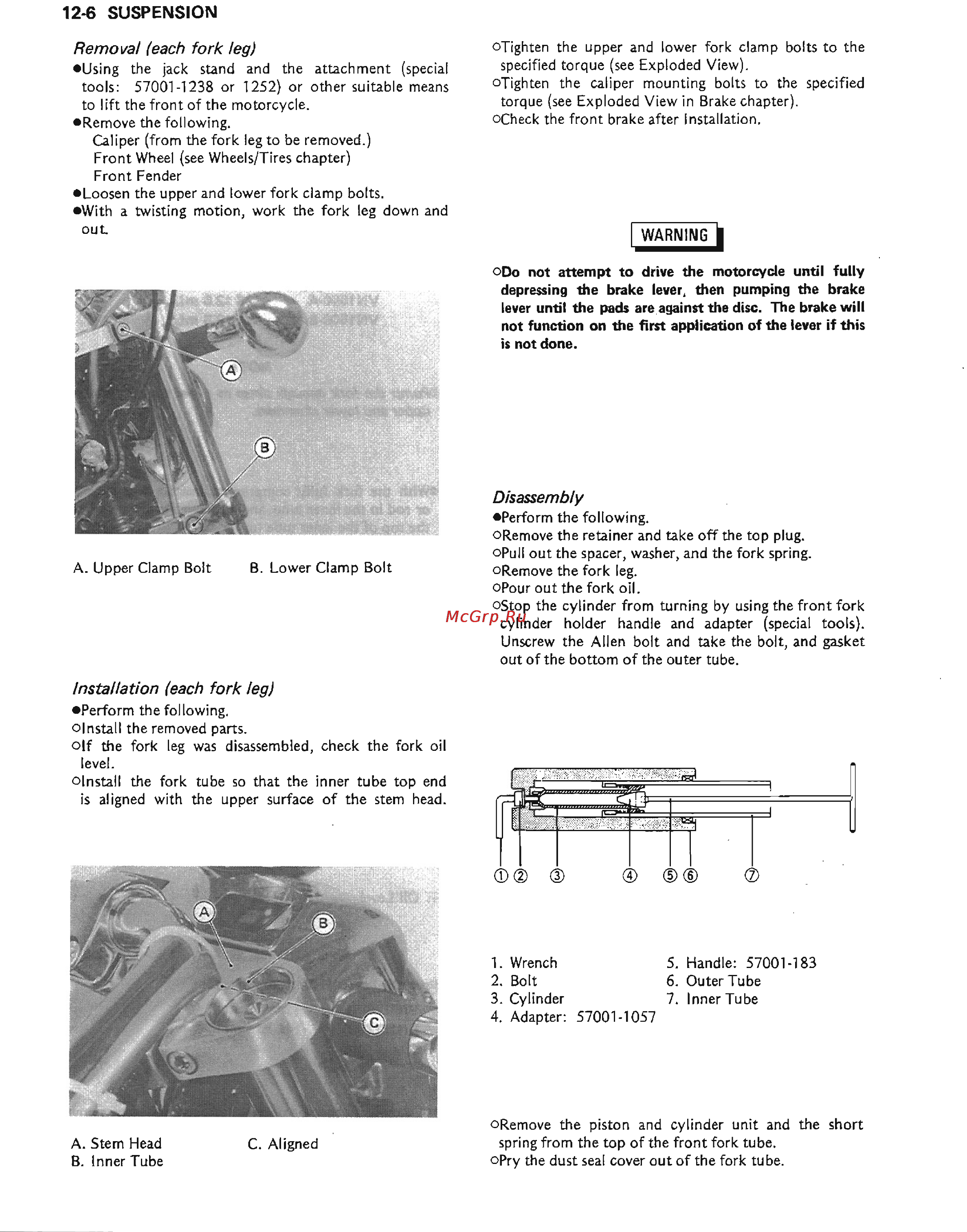

12€ SUSPENSION
Removal
(each
fork leg)
.Using
the
jack
stand and the
attachment
(special
toofs: 57001-1238 or 12521 or
other
suitable
means
to
llft
the front of the motorcycle.
rRemove
the following.
Caliper
(from
the
fork
leg
to be removed.)
Front Wheel
(see
Wheelsflires chapter)
Front Fender
.Loos€n
the upper and lower
fork
clamp bolts.
.With
a twisting motion, work the
fork
leg down and
out
A. Upper Clamp Bolt
B. Lower Clamp Bolt
Installation
(each
fork leg)
.Perform
the
following.
olnstall
the removed Darts.
olf
the fork leg was disassembled,
check
the fork oil
level.
olnstall
the
fork
tube so that
the inner tube toD end
is aligned with the upper surface of the stem
head.
oTighten
the upper and lower
fork clamp
bolts to the
specified torque
(see
Exploded View).
oTighten
the
caliper mounting bolts to the specified
torque
(see
Exploded View in Brake chapter).
oCheck
the front brake after lnstallation.
oDo
not attempt to ddve dre
motororyale
umil futly
deprsssing the brake
lev€r, dren
pumping
tfte brake
lever until the
Fad3
a16 agai$t tlis
disc. The brake will
not function on dre 613t applicati,on
of $e
leYsr
if this
k not done.
Dis*sembly
.Perform
the
following.
oRemove
the retainer and take off the top
plug.
oPull
out the
spacer,
washer, and the fork spring.
oRemove
the fork leg.
oPour
out the
fork
oil.
ostop
the
cylinder
from
turning by using the
front fork
cylinder holder handle and adapter
(special
tools).
Unscrew the Allen bolt and take the bolt, and
gasket
out ofthe
bottom of the outer tube.
1 .
Wrench
2. Bolt
3.
Cylinder
4.
Adapter: 57001-1057
5. Handle: 57001-183
6. Outer
Tube
7. lnner Tube
A. St€m
Head
B. lnner Tube
oRemove
the
piston
and cylinder unit and the short
spring from the top of the
front fork
tube.
oPrv
the
dust
seal
cover
out
of the fork tube.
C. Aligned
