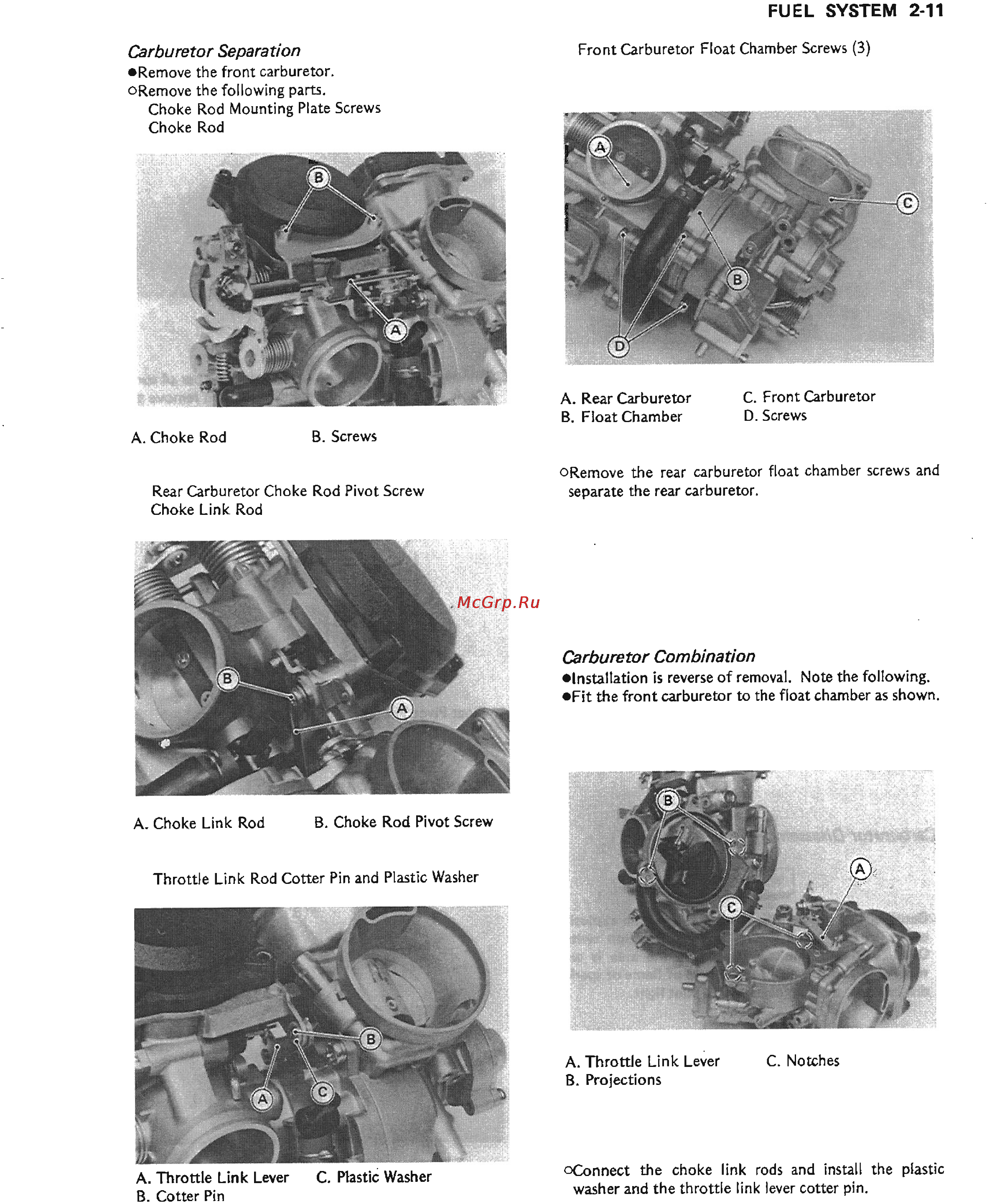

@rburetor
Separation
aRemove
the
front carburetor.
oRemove
the following
parts.
Choke
Rod
Mounting
Plate Screws
Choke
Rod
A.
Choke Rod
B. Screws
Rear Carburetor Choke
Rod Pivot
Screw
Choke Link Rod
A. Choke Link
Rod
B. Choke
Rod Pivot Screw
Throttle
Link
Rod Cotter
Pin and
Plastic Washer
A.
Throttle
Link Lever
B. Cotter
Pin
FUEL SYSTEM
2.11
Front Carburetor
Float Chamber
Screws
(3)
A. Rear Carburetor
C.
Front Carburetor
B. Float
Chamber
D. Screws
oRemove
the
rear
carburetor
float
chamber screws and
seDarate the
rear carburetor.
C.ze
rb u reto
r
C
o m
b i n a ti o n
.lnstallation
is
reverse of removal. NoG
the
following.
aFit
the front
carburetor
to the float chamber
as
shown.
A. Throttle
Link Lever
B. Proiections
C.
Notches
oconnect
the
choke
link
rods
and install the
washer and
the throttle
link lever cotter
pin.
C.
Plastic Washer
plastic
