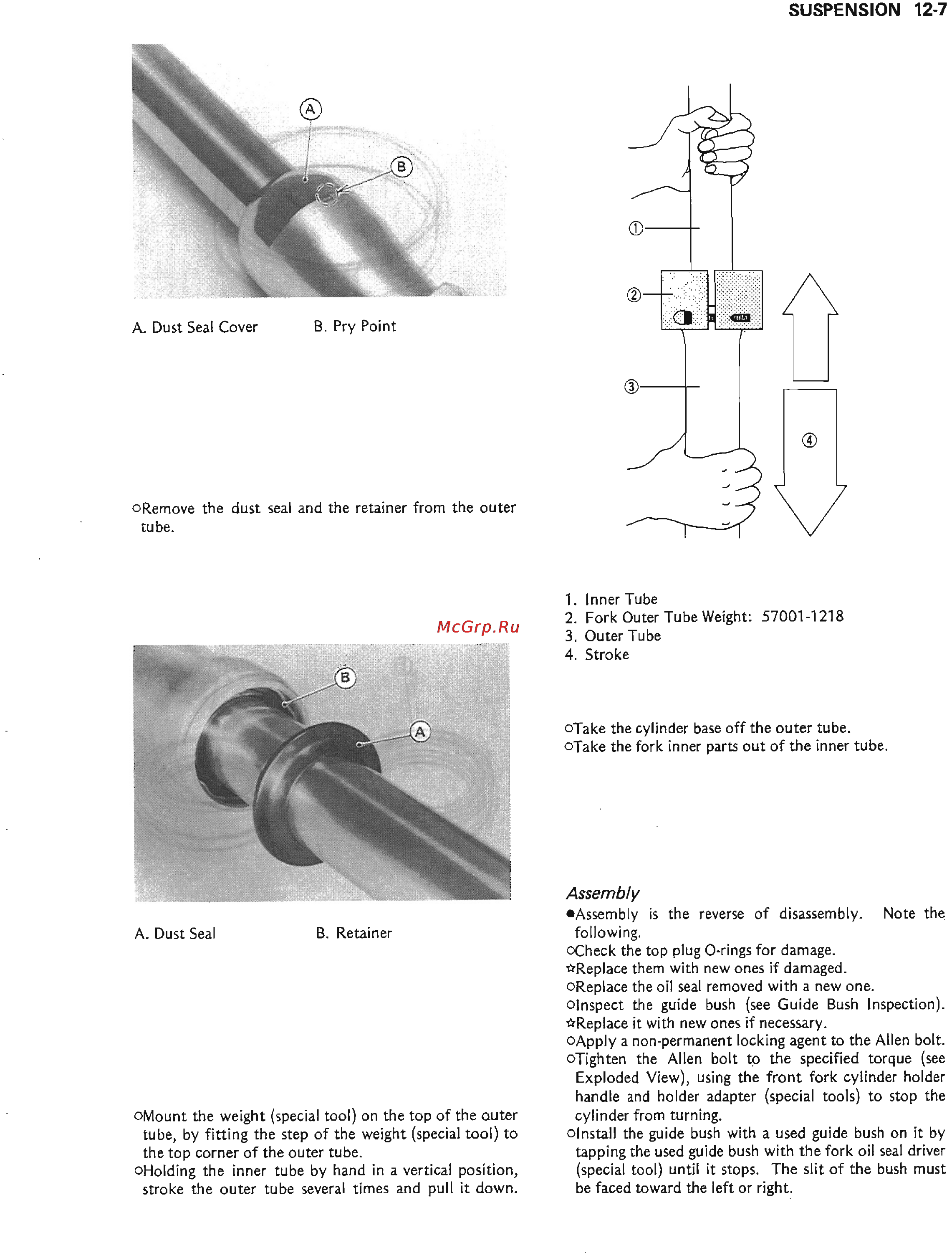

A.
Dust Seal Cover
B.
Pry Poini
oRemove
the dust seal and
the retain€r from
the outer
tube.
A. Dust Seal
B. Retainer
oMount
the
weight
(special
tool) on
tie top of tie outer
tube, by fitting the step of
the weight
(special
tool)
to
the top corner of t}le out€r tube.
oHolding
the
inner lube by
hand
in a
vertical
position,
stroke the outer tube
several times and
pull
it down.
susPENsloN
12-7
1. lnner
Tube
2. Fork Outer
Tube
Weight: 57001-1218
3. Outer
Tube
4.
Strok€
oTake
the cylinder base off
the outer tube.
oTake
the fork inner
parts
out of the inner
tube.
Assembly
.Assembly
is the reverse of disassembly.
Note the
following.
€heck
the top
plug
O-rings
for
damage.
tReplace
them with
new
ones
if damaged.
oReplace
the
oil seal removed with a
new one.
olnspect
the
guide
bush
(see
Guide Bush lnspection).
*Replace
it with new ones
if
necessary.
oApply
a
non-permanent locking agent
to
the
Allen bolt.
oTighten
the Allen bolt
to
the specified torque
(s€€
Exploded
View), using the ftont fork
cylinder holder
handle and
holder
adapter
(special
tools) to stop the
cylinder from turning.
olnstall
the
guide
bush with a used
guide
bush
on it by
tapping
the used
guide
bush with the fork
oil seal driver
(special
tool)
until it stops. The slit of the bush
must
be
faced toward the
left
or right.
