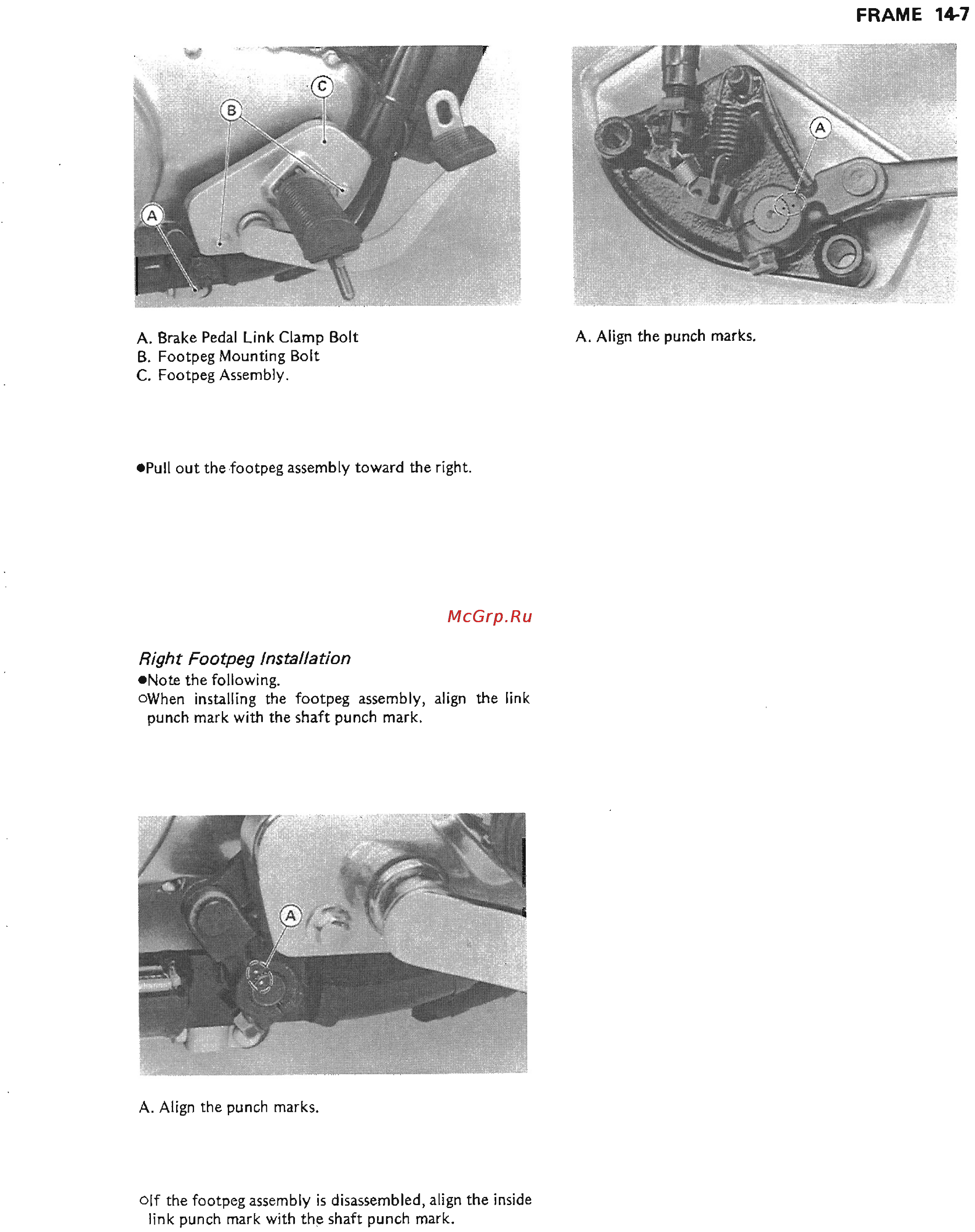

FRAME
1+7
A. Brake
Pedal Link Clamp
Bolt
B. Footpeg
Mounting Bolt
C. Footpeg
Assembly.
.Pull
out the footpeg assembly
toward
the
right.
Right Footpeg
lnstallation
.Note
the following.
oWhen
installing the
footpeg
assembly,
align the link
punch
mark
with the shaft
punch
mark.
A. Align
the
punch
marks.
olf
the
footpeg assembly is disassembled,
align the inside
link
punch
mark
with the shaft
punch
mark.
A. Align
the
punch
marks.
