GENERAL
INFORMATION 1.15

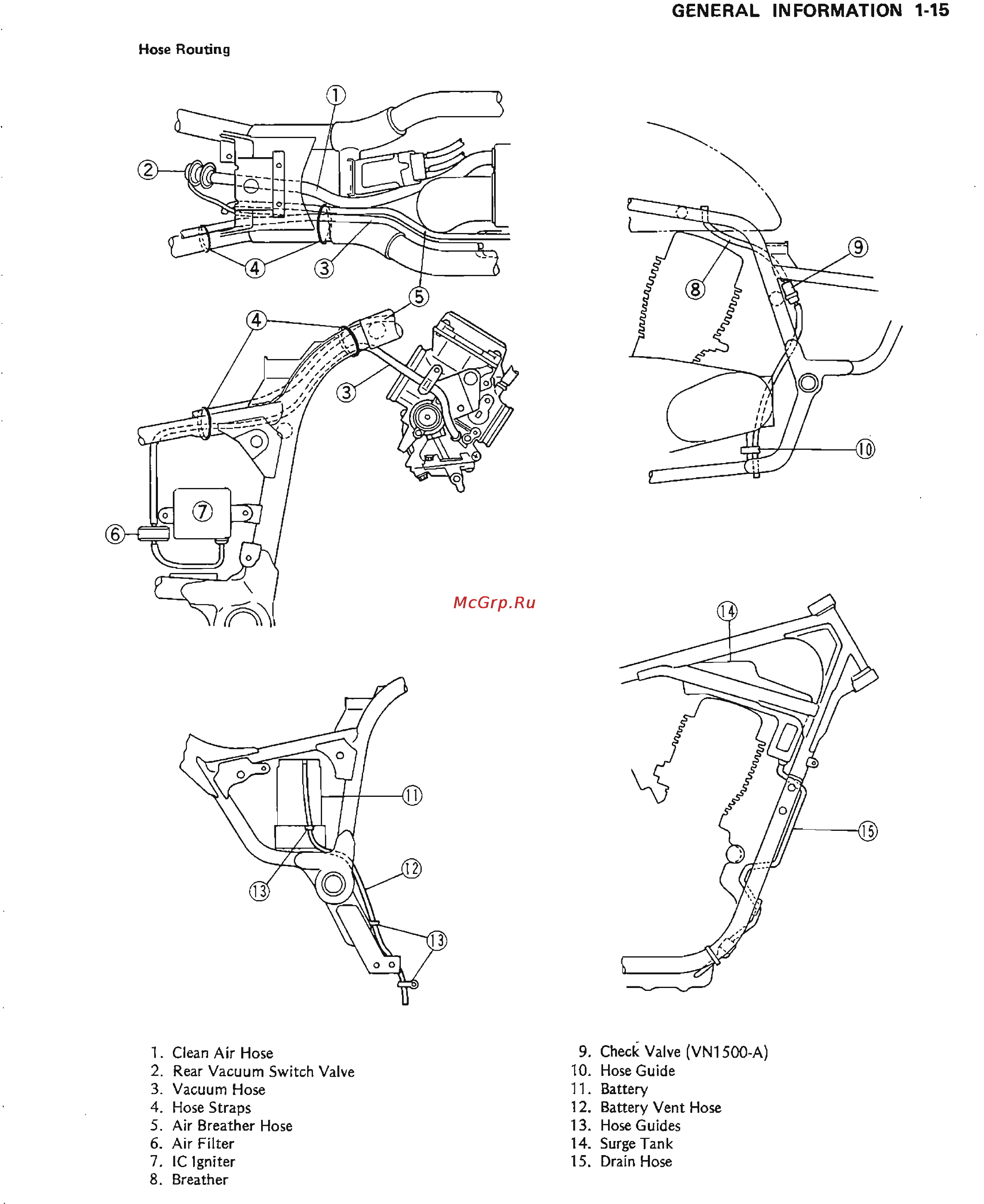

Hose Routing
1
. Clean Air Hose
2. Rear
Vacuum
Switch Valve
3. Vacuum Hose
4. Hose
Straps
5. Air
Breather Hose
6.
Air
Filter
7.
lC lgniter
8.
Breatier
9. Check Valve
(VNl500.A)
10. Hose
Guide
11. Battery
12. Battery Vent
Hos€
13,
Hose Guides
14.
Surge Tank
15, Drain
Hose
