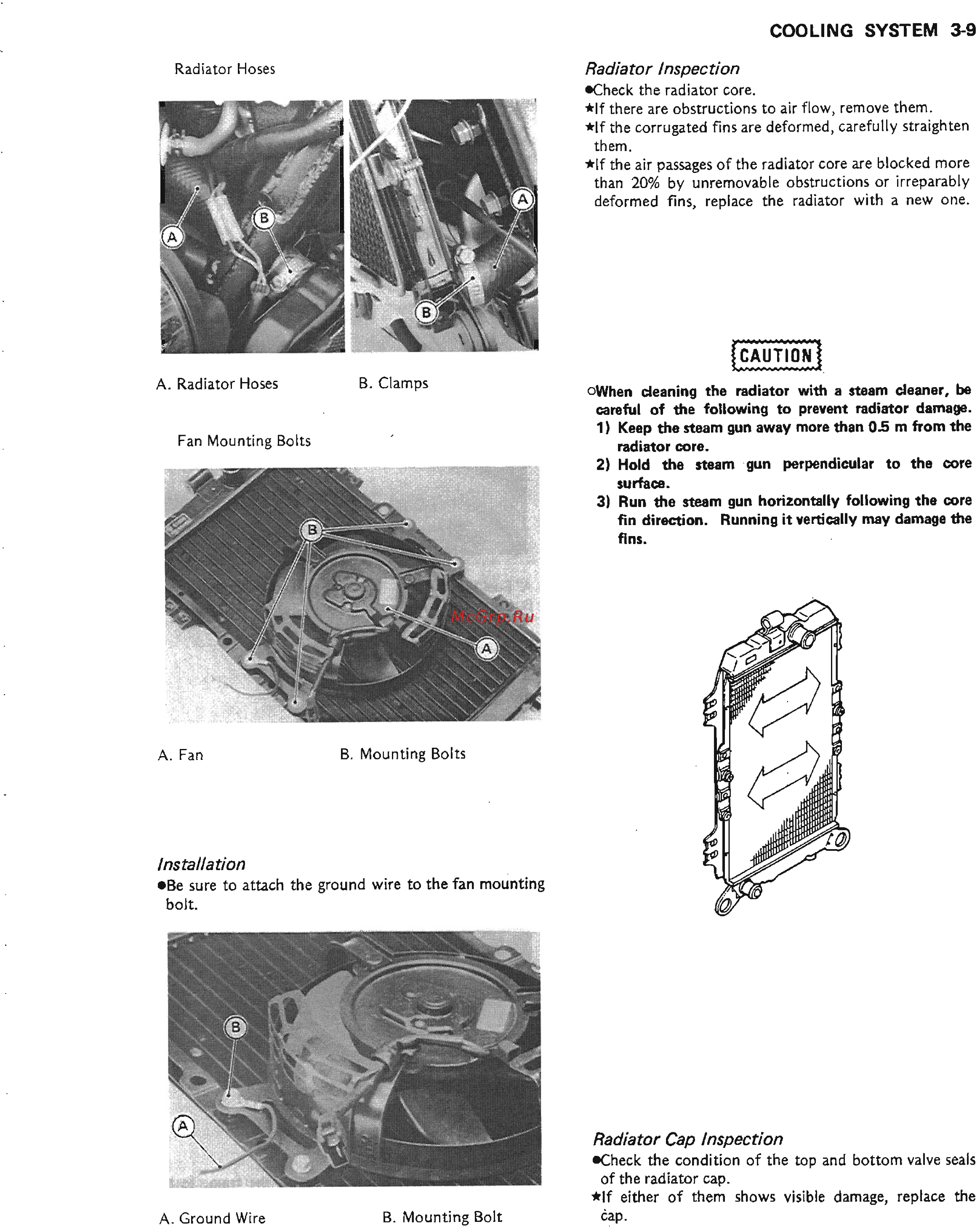

Radiator
Hoses
A. Radiator Hoses
B. Clamps
Fan Mounting Bolts
A.
Fan
B.
Mounting Bolts
lnsallation
.Be
sure
to attach the
ground
wire
to the fan mounting
bolt
COOLING
SYSTEM
}9
Badiator lnspection
theck the
radiator core.
*lf
there
are obstructions to
air flow,
remove them.
*lf
the corrugated
fins are deformed,
carefully straighten
Inem.
*lf
the air
passages
of the radiator
core ate blocked
more
thzn
20o/o by
unremovable obstructions
or irreparably
deformed fins, replace
the
radiator
with a new on€.
m1
oMen
doaning
the
radiator widr a 3tsam
dealer,
be
careftrl ol the
following to
prwent
radistor damege'
1l Keep dre isam
gun
away
more dran 05
m from the
radiator
aore.
2l Hotd
tho
st3am
gun
perpendicr
er to the
core
:urface.
3l
Run rha
st€sm
qun
hotizontslly
following the core
fin direc'tion.
Running
it venically
nrsy
dsmags
dro
ffnr.
Badiator Cap
lnspection
acheck
the
condition of
the
top and bottom valve seals
of the radiator
cap,
*lf
either of them shows visible damage,
replace the
cap.
A.
Ground Wire
B. Mounting
Bolt
