1-14
GENERAL
INFORMATION

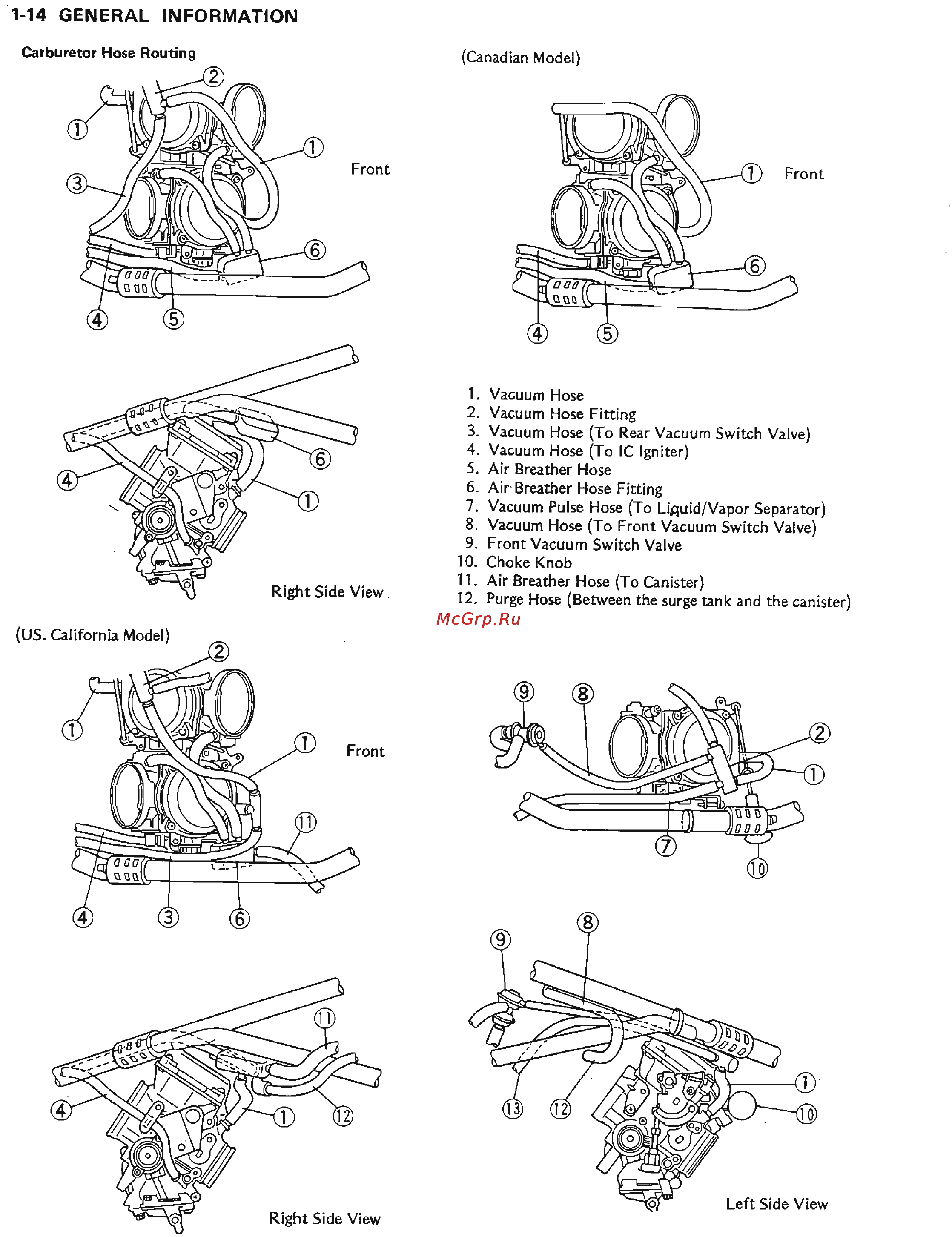

Carburetor Hose
Routing
(Canadian
Model)
l.
Vacuum
Hose
2.
Vacuum
Hose
Fitting
3.
Vacuum
Hose
(To
Rear Vacuum
Switch Valve)
4.
Vacuum
Hose
(To
IC
lgniter)
5.
Air
Breattrer
Hose
6. Air
Breather
Hose Fitting
7.
Vacuum
Pulse
Hose
(To
Liguid/Vapor
Separator)
8.
Vacuum
Hose
(To
Front
Vacuum
Switch
Valve)
9. Front
Vacuum
Switch Valve
10.
Choke
Knob
l l.
Air
Breatfter
Hose
(To
Canister)
'12.
Purge
Hose
(Between
the
surge tank and
the canister)
(US.
California Model)
