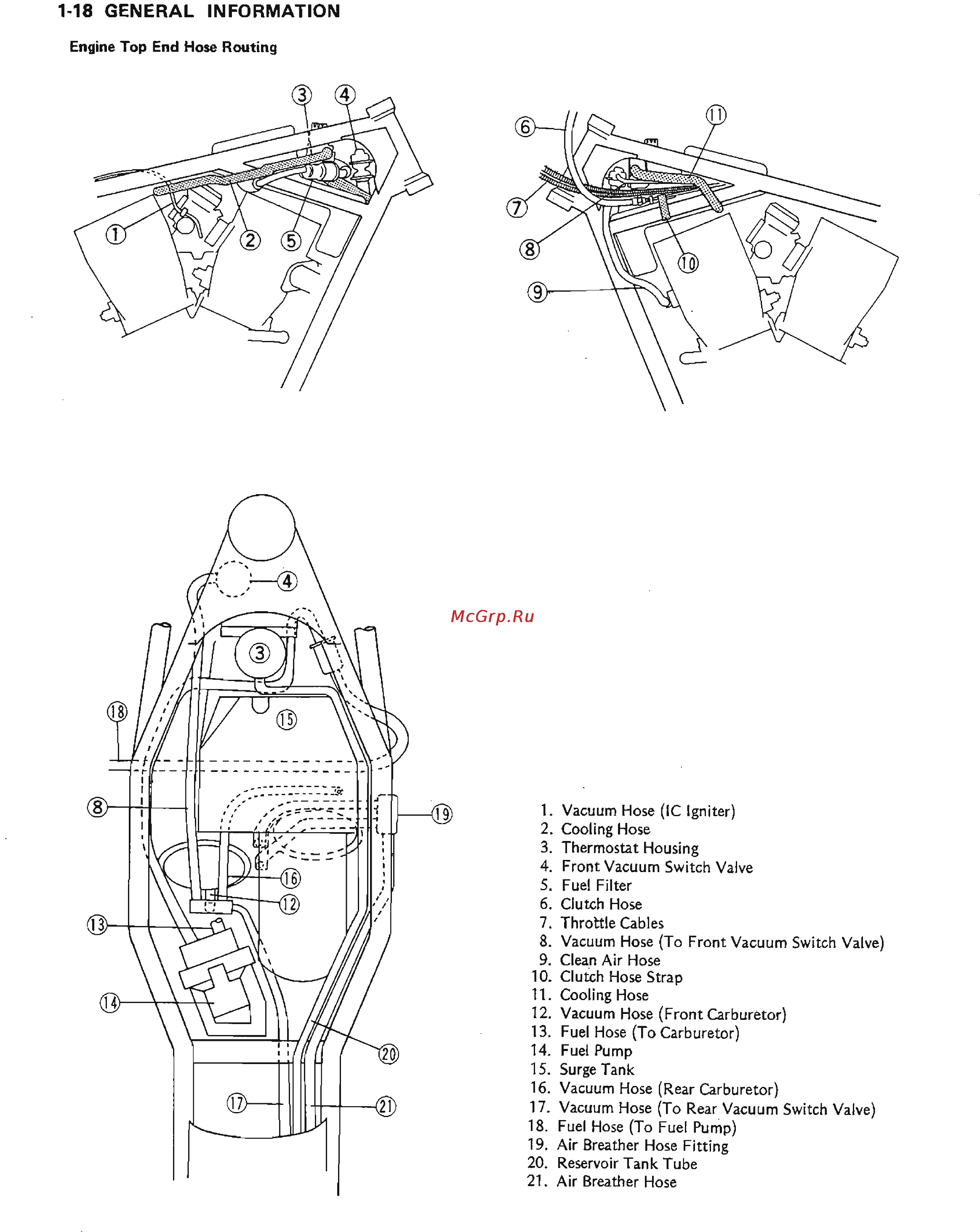

I.18 GENERAL
]NFORMATION
Engine
Top End Ho.e Routing
'!i!
,-'.------'-
1. Vacuum
Hose
(lC
lgniter)
2.
Cooling Hose
3. Thermostat
Housing
4.
Front Vacuum
Switch Valve
5. Fuel Filter
5. Clut h Hose
7. Throitle
Cables
8.
Vacuum Hose
(To
Front Vacuum
Swirch Valve)
9.
Clean Air Hose
10.
Clutch Hose
Strap
11.
Cooling Hose
12. Vacuum
Hose
(Front
Carburetor)
13.
Fuel Hose
(To
Carburetor)
14. Fuel
Pump
15.
Surge Tank
16. Vacuum
Hose
(Rear
Carburetor)
17. Vacuum
Hose
(To
Rear Vacuum
Switch Valve)
18.
Fuel Hose
(To
Fuel Pump)
19.
Air Breather
Hose
Fitting
20.
Res€rvoir
Tank
Tube
21.
Air Breather
Hose
