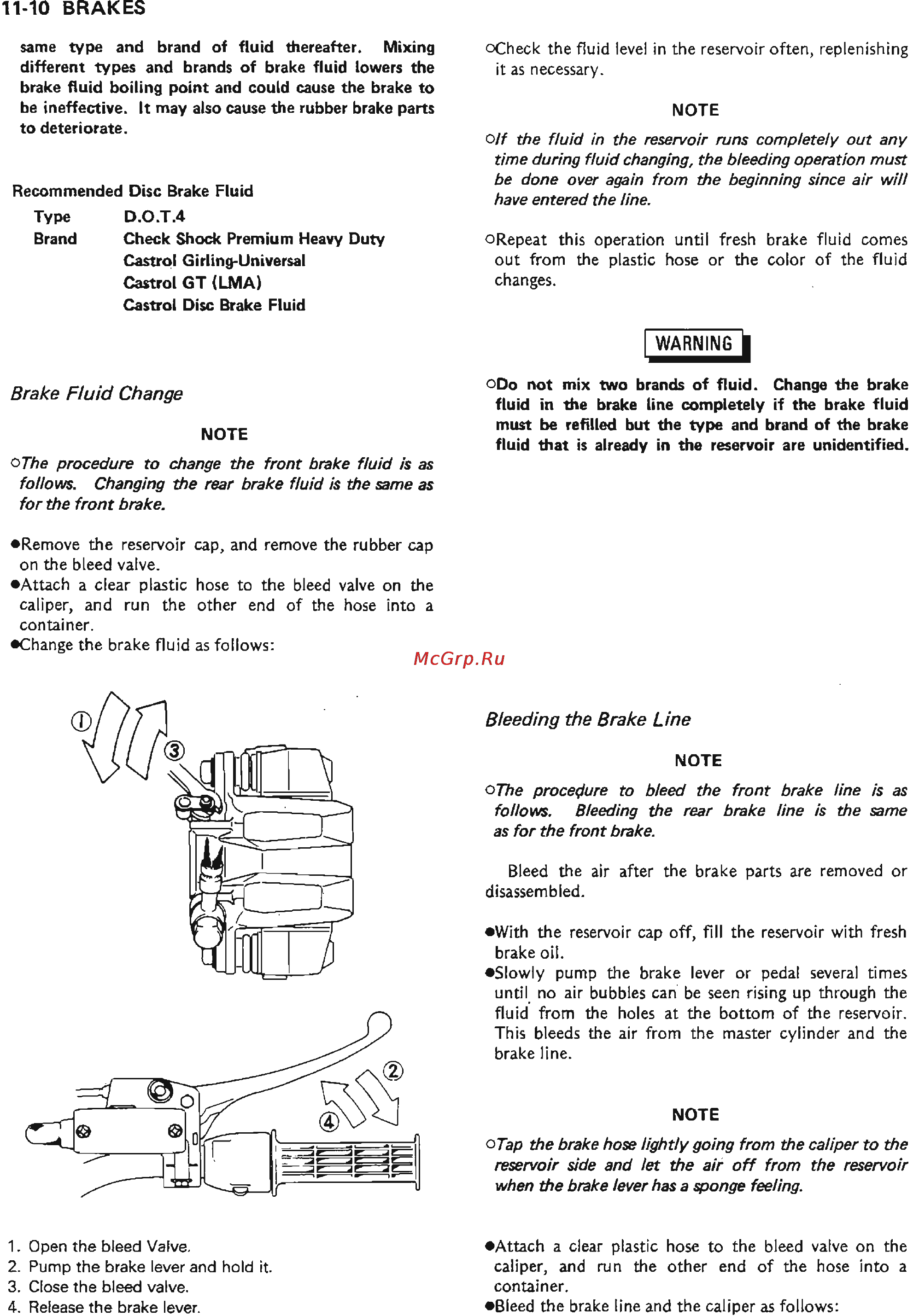

I1.10 BRAKES
$me type and brand of fluid
thereafter. Mixing
differsnt
types and brands of brske
fluid
lowers the
brake fluid boiling
point
and co{ld cause
the brake to
be ineffectiye. lt may also cause dre rubber brak€
parts
to
deteliorate.
R€commended Dirc
Brake
Fluid
Type D.O.T.4
Brand Check Sho.r(
Premium Heavy
Duty
Crstrql Gidin
g.unive'ssl
Cactrol
GT
(f-MA)
Castrol Dbc Brake Fluid
Bnke Fluid
Change
NOTE
oThe prccedure
to drange
the
front bnke
fluid
is as
fo
ot s. Changing
tte
rcar bnke fluid is
the sme as
for
the
frcnt
brake.
.Remove
the reservoir cap, and remove the rubber
cap
on the bleed valve.
.Attach
a clear
plastic
hose
to the bleed valve on the
caliper,
and
run
the other end of the hose
into a
container.
.Change
the brake fluid as follows:
Ooen the bleed
Valve.
Pumo the
brake
lever
and hold
it
Close the bleed
valve.
Release
the brake
lever.
ocheck
the fluid level in
the
reservoir often, replenishing
it as necessary.
NOTE
olf
the
fluid
in the rcervoir runs completely out any
time during fluid changing,
the
bleeding opention must
be done over
again
from
the
beginning since air will
have entered
the line.
oRepeat
this operation until fresh brake fluid comes
out from the
plastic
hose or the color of the fluid
cnanges.
oDo
not mix two
blands
of fluid.
Chan$
dre brake
fluid in
dle b|8ke
line
completrly
if
ths blak€
fluid
must
be refill€d but tre type and brand of the brake
fluid that b
already
in
d|g
roservoir
are
unidentified.
Bleeding the Brake Line
NOTE
oThe
procedure
to
bleed
the
front bnke line is a
follov,n
Eleding the rar bnke
line is
{re sme
as
for
the
front bnke.
Bleed the air after the brake
parts
are removed or
disassembled.
awith
the
reservoir cap off, fill
tle
reservoir with fresh
brake
oil.
.Slowly pump
the brake
lever
or
pedal
several times
until
no
air bubbles can be seen rising
up
through the
fluid from the holes
at the bottom of
the reservoir.
This bleeds the air
from
the
mast€r
cvlinder and the
brake line.
NOTE
oTap
the bnke hoe lightly
going
from the caliper to fie
recrwir side and let the
air off
from
the
reervoir
when the btdce lever has
a
qonge
feling.
.Attach
a
clear
plastic
hos€
to the bleed valve on the
caliper,
and run the other end of the
hose
into a
container.
rBleed
the brake line and the caliper as follows:
1.
2.
5.
4.
