134

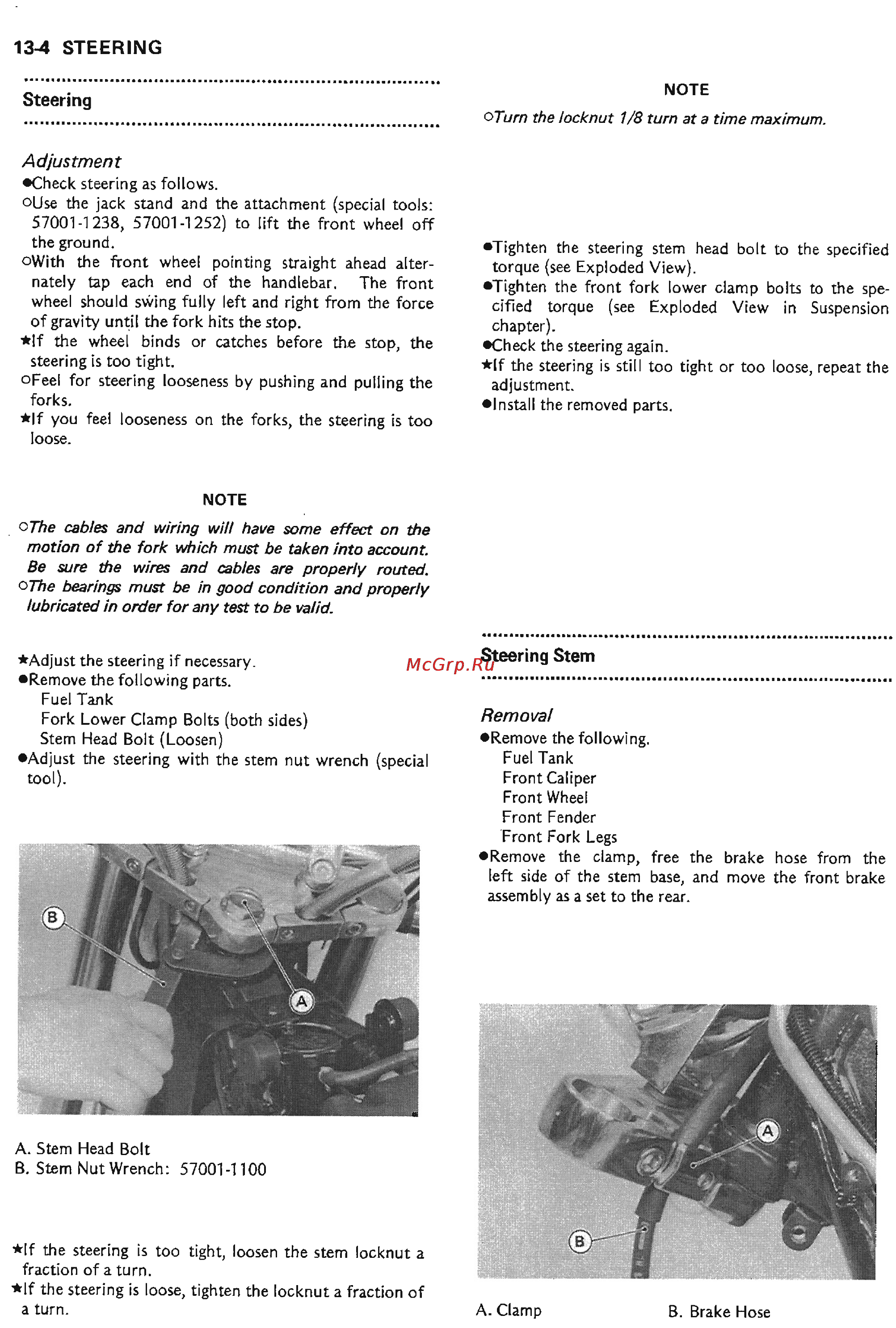

STEERING
Steering
Adiustment
oCheck
steering
as follows.
ouse
the
jack
stand and the attachment
(special
tools:
57001-1238,
5700'l-1252\ to lift the front
wheel
off
the
ground.
owith
ttle
front
wheel
pointing
straight
ahead alt€r-
nately tap each end of the handlebar.
The front
wheel
should sriing
fully
left and right
from the
force
of
gravity
until the
fork
hir the
stop.
*lf
tl|e wheel
binds
or
catches before
the
stop, the
steering is too tight.
oFeel
for
steering looseness by
pushing
and
pulling
the
forks.
*lf
you
feel looseness
on the forks, the
sGering is
too
loose.
NOTE
oThe
cables
and wiring will have
sme
effet
on dre
motion
of the fork which
must
be taken
into aeount.
Be
gtte
the wit6
and ables
are
prcperly
routed.
ome
bearing' must
be in
good
condition
and
properly
lubricated
in
order for
any test to
be valid.
*Ad.iust
the steering
if necessary.
.Remove
the following
parts.
Fuel
Tank
Fork
Lower
Clamp Bolts
(both
sides)
Stem Head Bolt
(Loosen)
.Adjust
the steering
with the stem
nut wrench
(special
tool).
A. Stem
Head
Bolt
B. Stem Nut Wrench:
57001-1
100
*lf
the
steering is
too tight,
loosen
the stem locknut
a
fraction
of a
turn.
*lf
the
steering is loose,
tighten
the locknut
a
fraction
of
a turn-
NOTE
oTurn
the locknut
l/8 turn
at a time maximum-
.Tighten
the
steering
stem
head
bolt
to the
specified
torque
(see
Exploded
View).
.Tighten
the
front
fork lower
clamp bolc
to the spe-
cified
torque
(see
Exploded View
in
Suspension
chapter).
.Check
the
steering again.
*lf
the steering is
still too tight
or too loose, repeat
the
adiustment.
alnstall
the removed
Darts.
Steering
Stem
Removal
.Remove
the following.
Fuel
Tank
Front
Caliper
Front Wheel
Front Fender
Front
Fork Legs
aRemove
the clamp, free
the
left
side of the
stem base, and
assembly
as a set to the
rear.
brake hose
from the
move
the front
brake
A. Clamp
B. Brake
Hose
