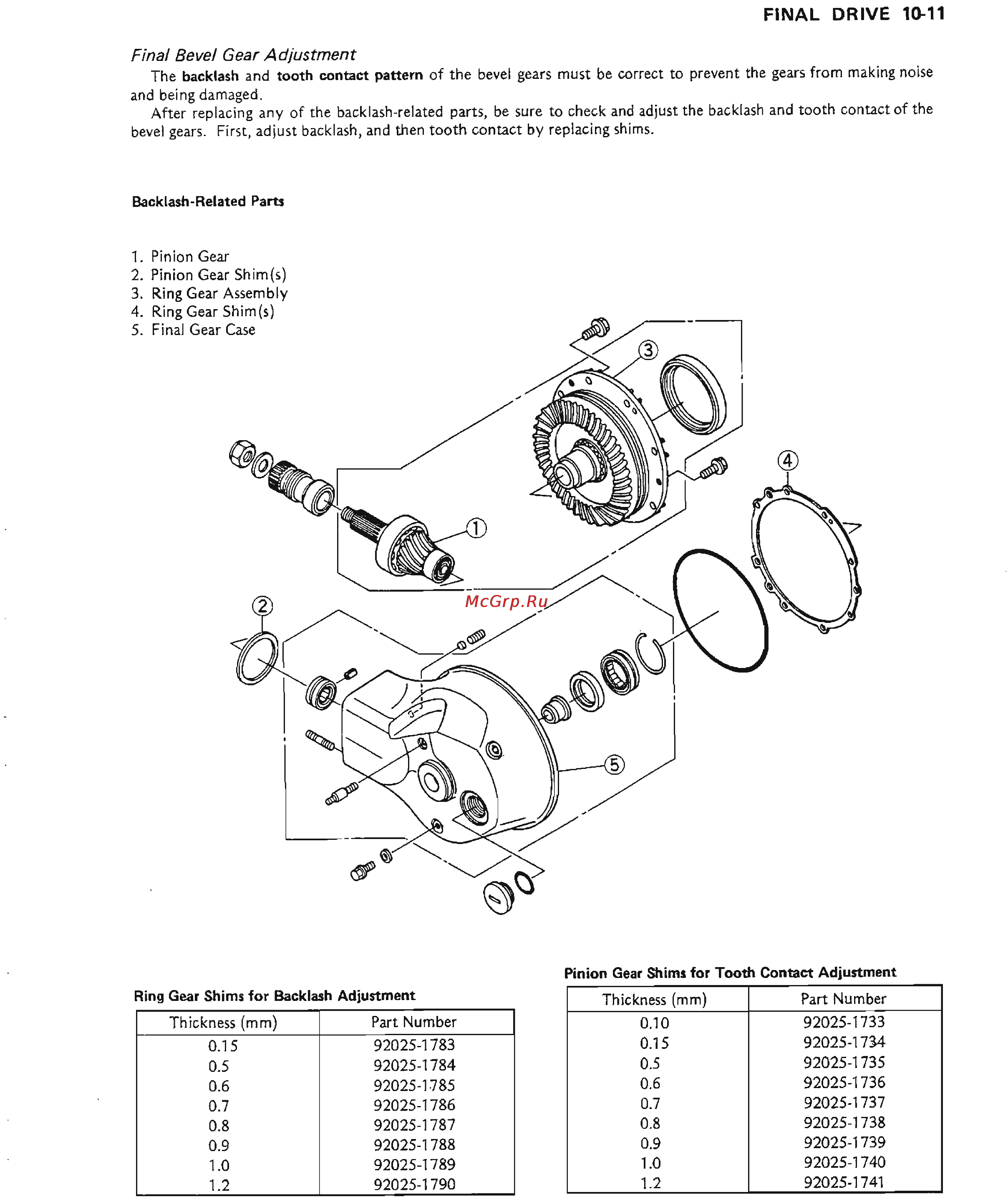

FINAL
DRIVE
1G11
Final Bevel Gear
Adiustment
The
backlash and
tooth oontast
pattern
of the
bevel
gears
must be
correct to
prevent
the
gears
from
making noise
and being
damaged.
Afterieplacing
any of the
backlash-related
parts,
be sure to check
and adrust
the backlash
and tooth
contact of the
bevel
gears.
First,
adiust backlash,
and then tooth
contact by replacing shims.
Eackla3h-Related
Partt
Pinion Gear
Pinion Gear Shim(s)
Ring Gear Asembly
Ring Gear Shim(s)
Final Gear Case
1.
2.
3.
5.
Ring Gear Shims
tor
Backlash Adiunment
Thickness
(mm) Part
Number
0.15
u.5
0.6
0.7
0.8
0.9
1.0
'1.2
92025-1783
92025-1784
92025-1185
92025-1786
92025-1787
92025-1788
92025-1789
92025-1190
Pinion Ge.r $rimr
for Too$ Contact Adiunment
Thickness
(mm)
Part Number
0.10
0.15
0.5
0.6
0.7
0.8
0.9
1.0
1.2
92025-1733
92025-11?4
92025-1735
92025-1736
92025-1737
92025-1738
92025-"t739
92025-1740
92025-1741
