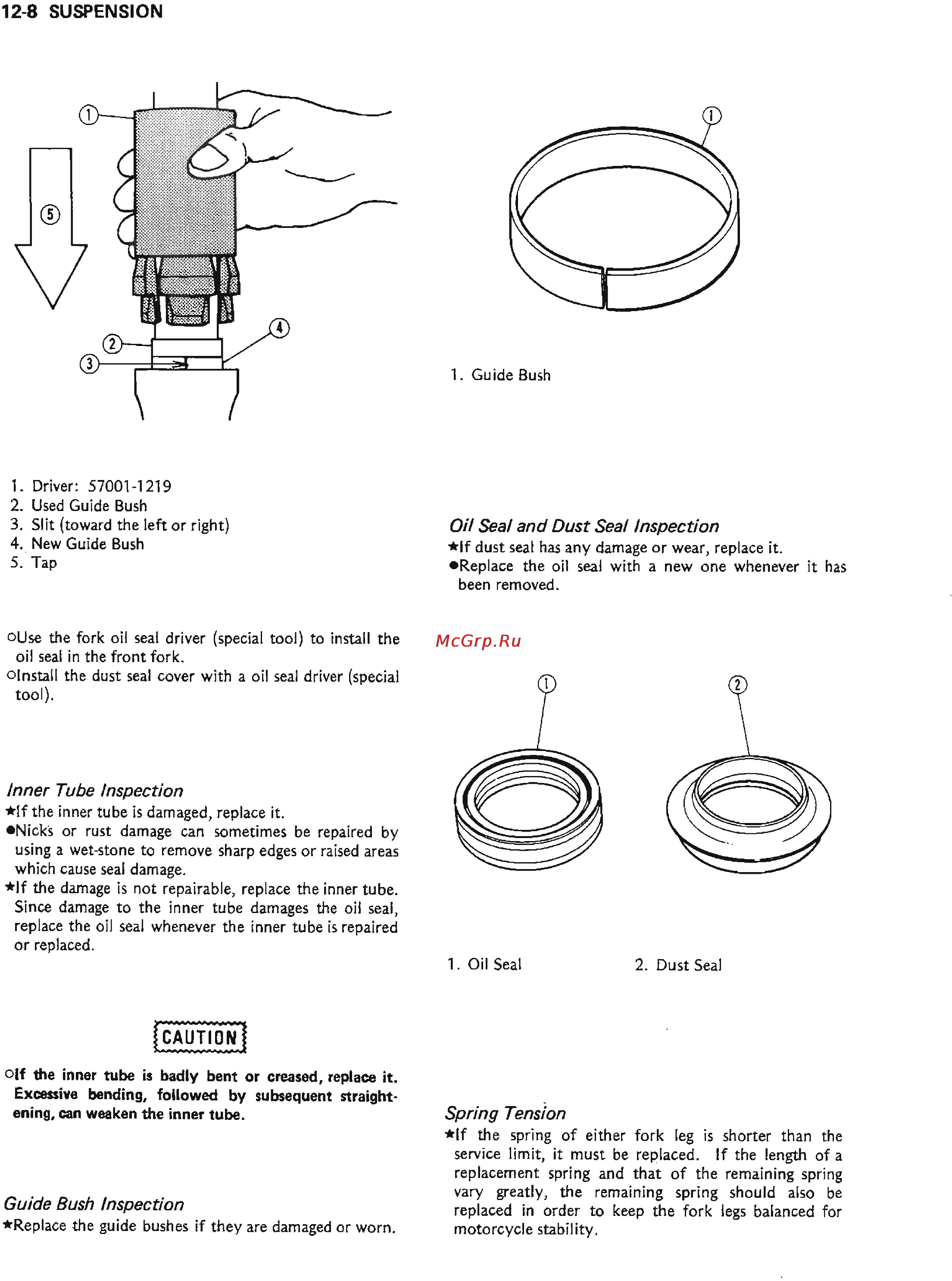

12-8 SUSPENSTON
1. Driver:57001-1219
2. Used
Guide Bush
3. Slit
(toward
the left or right)
4.
New Guide Bush
5. Tap
ouse
the fork
oil seal driver
(special
tool) to install
the
oil seal in the front fork.
olnstall
the dust seal cover with a
oil seal driver
(special
tool).
lnner Tube
lnspection
*lf
the inner tube is damaged,
replace it.
.Nicki
or rust
damage can sometimes
be repaired
by
using
a wet-stone
to r€move sharp edges
or raised areas
which cause seal damage.
*lf
the
damage is not repairable,
replace the inner
tube.
Since damage
to the inner tube
damages the oil seal,
replace
the oil seal whenever
the inner tube is
reDaired
or reDlaced.
olf
dre innel
tube i3
badty bent
or creasod, teplac€
it,
Exc6$iye
bsnding, followed
by subcequent
straight-
sning,
can wsoken
dte inner
tube.
Guide Bush lnspection
*Replace
the
guide
bushes
if they are damaged
or worn.
'1.
Guide Bush
Oil *al
and
Dust Seal lnspecdon
*lf
dust
seal
has
any damage or wear, replace it.
.Replace
the oil seal with a new one whenever
it
has
been
removed.
1.
Oil Seal 2- Dust
Seal
Spring Tension
*lf
the
spring of either fork leg is
sltorter than the
service limit, it must
be replaced. lf the length
of a
replacement
spring and
that of the remaining spring
vary
greatly,
the remaining
spring should also
be
replaced in order
to keep the fork legs
balanced for
motorcycle stability.
