1.
2.

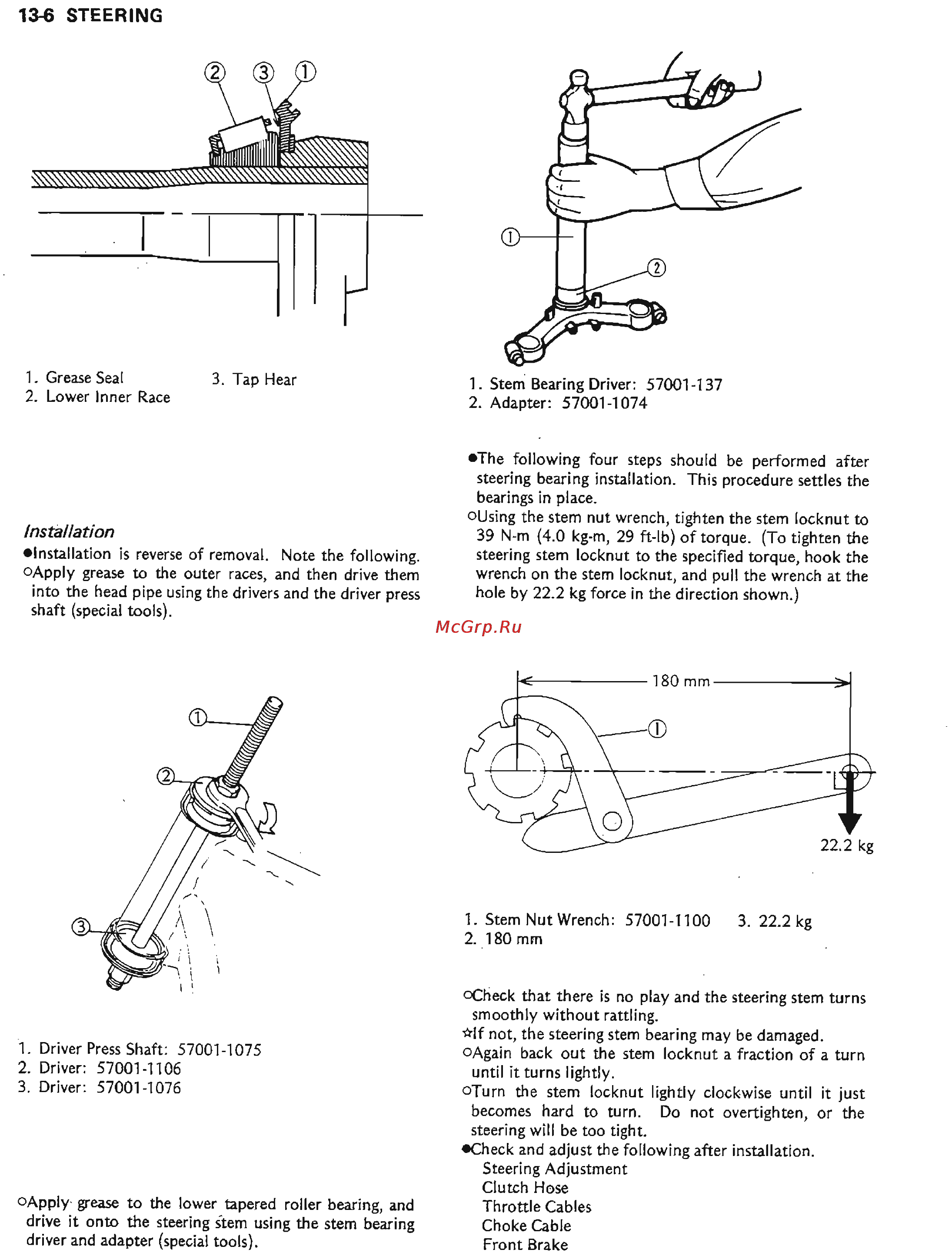

136 STEERING
Grease
Seal
Lower
Inner
Race
3. Tap Hear
l. Driver Press
Shaft: 57001-1075
2. Drtuer:
57001-1
106
3. Driver:
57001-1076
lnstallation
.lnstallation
is reverse
of removal.
Note
the following.
oApply
grease
to
the outer rac€s,
and
then drive
them
into
the head
pipe
using the
drivers
and the driver
press
shaft
(special
tools).
l. Stem Bearing Driver:
57001-137
2.
Adapten 57W1-1O74
rThe
following
four
steps should
be
p€rformed
after
st€ering
bearing installation.
This
procedure
settles the
bearings in
place.
ousing
the stem nut wrench,
tighten the
stem locknut
to
39
N-m
(4.0
kg-m,
29 ft-lb)
oftorque.
(To
tighten
the
st€ering
stem
locknut
to the
sp€cified torque, hook
the
wrench
on the stem locknut,
and
pull
the wrench
at the
hole
by 22.2 kg force
in the
direction
shown.)
'I
80 mm
1. Stem Nut Wrench:
57001-1100
2. 180 mm
3.22.2ks
c€heck
that
there is no
play
and the
steering stem turns
smoothly
without rattling.
*lf
not, the steering
stem bearing
may
be
damaged.
oAgain
back out the
stem locknut
a
fraction
of a
turn
until it
turns lightly.
oTurn
the stem locknut
lightly
clockwise until
it
iust
becomes hard
to turn. Do
not overtighten,
or the
steering wlll be too tight.
oCheck
and
adjust the following
after
instaltation.
Steerlng Adiustment
Clutch
Hose
Throtile Cables
Choke
Cable
Front
Brake
Kg
oApply.gfease
to
tle
lower tapered
roller
bearing, and
drive it onto
the
steering
stem using the
stem bearing
driver and
adaprcr
(special
tools).
