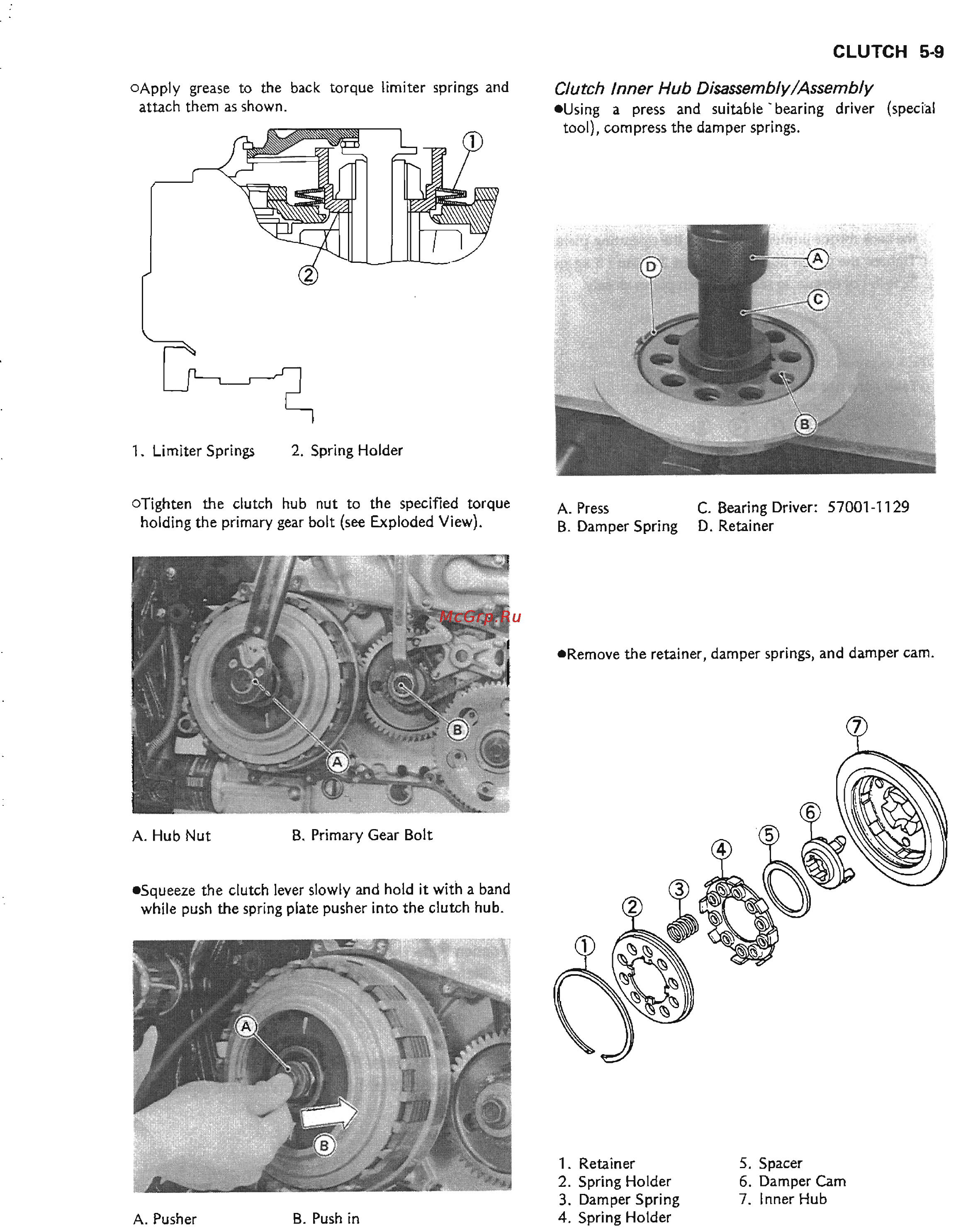

oApply
grease
to the back torque
limiter
springs
and
attach them
as shown.
1. Limiter Springs
2.
Spring
Holder
oTighten
the
clutch hub nut to the specified torque
holding
the
primary
gear
bolt
(see
Exploded View).
A.
Hub
Nut
B.
Primary Gear Bolt
.Squeeze
the
clutch lever slowly and
hold it with a band
while
push
the
spring
plate pusher
into the clutch
hub.
CLUTCH 5-9
Clutch
lnner Hub Disasembly/Assembly
.Using
a
press
and suitable
bearing driver
(special
ool), compress the
damper springs.
A.
Press C. Bearing
Driver: 57001-1129
B.
Damper
Spring
D. Retainer
aRemove
the retainer, damper
springs,
and damper
cam.
1.
Retainer
2. Spring
Holder
3. Damper Spring
4. Spring
Holder
5. Spacer
6. Damper Cam
7.
lnner Hub
A.
Pusher B.
Push in
