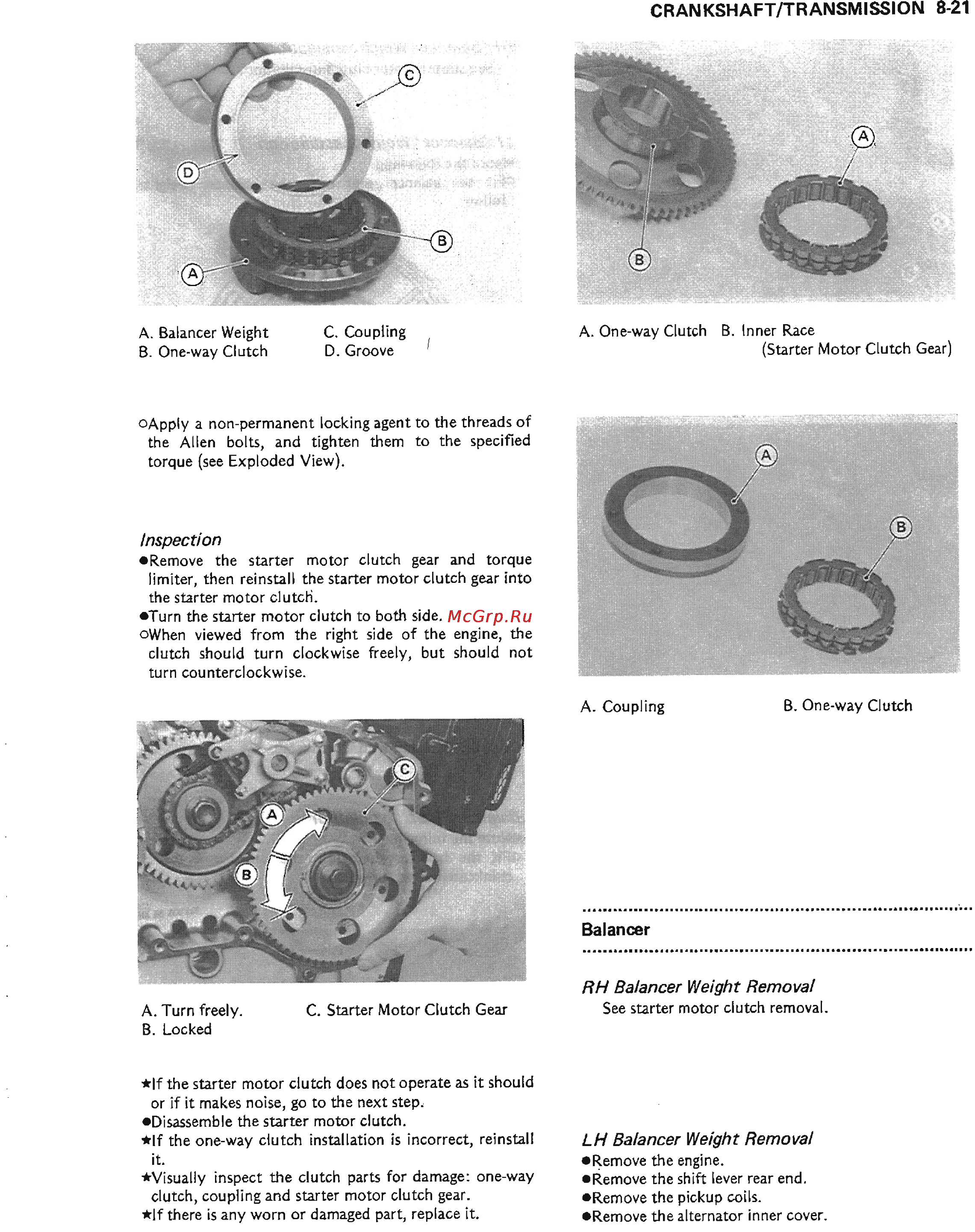

A. Balancer
Weight
B. One-way
Clutch
C. Coupling
D. Groove
oApply
a non-permanent
locking agent
to the threads
of
the Allen
bolts, and tighten
them to ihe specified
torque
(see
Exploded View).
lnspection
.Remove
the
starter motor
clutch
gear
and torque
limiter, then
reinstall the starter
motor clutch
gear
into
the starler
motor clutch.
aTurn
the starter motor
clutch to both side.
oWhen
viewed from the
right side of the
engine, the
clurch should turn
clockwise
freelv,
but
should
not
turn counterclockwise.
A.
Turn freely.
B. Locked
C. Starler
Motor Clutch Gear
*lf
the
starter
motor
clutch does not
operate as it should
or if it makes noise,
go
to the next step.
.Disassemble
the starter motor
clutch.
*lf
the one-way clutch
installation is
incorrect,
reinstall
ir.
*Visually
inspec! the
clutch
parts
for damage: one-way
clutch,
coupling and starter
motor clutch
gear-
*lf
tiere is
any worn or damaged
part,
replace it.
CRAN
KSHAFT/TRANSMISSION
8.21
A. One-way
Clutch B.
lnner Race
(Starter
Motor Clurch
Gear)
A. Coupling
B.
One-way
Clutch
Balancer
RH
Balancer Weight Removal
See start€r
motor clutch
removal.
LH
Balancer
Weight Removal
aRemove
the
engine.
oRemove
the
shift
lever rear end.
.Remove
the
pickup
coils.
aRemove
the alternator
inner cover.
