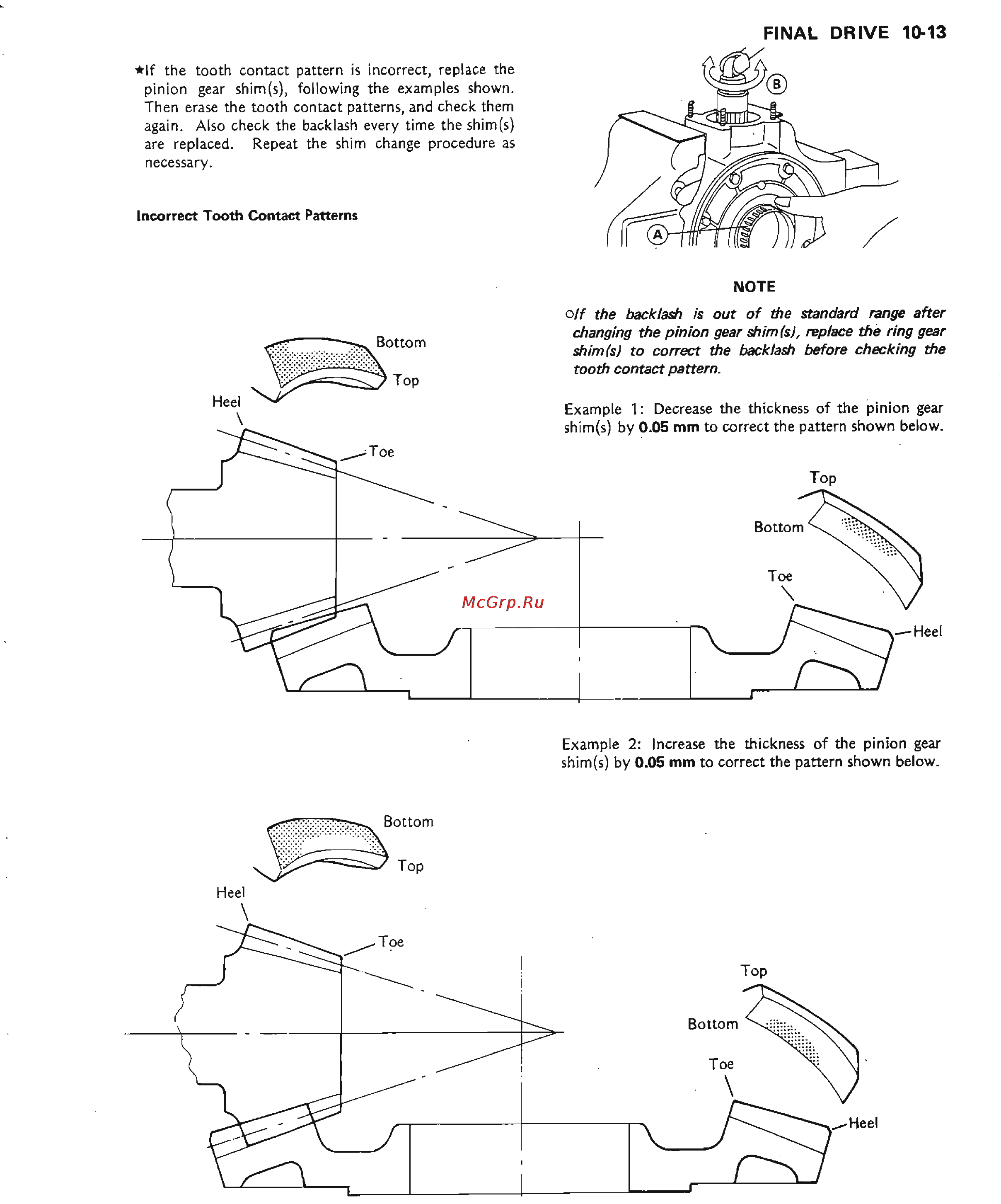

*lf
the tooth
contact
pattern
is incorrecl,
replace the
pinion
gear
shim(s),
following
the
examples shown.
Then
erase the tooth contact
patterns,
and check them
again.
Also check the backlash
every time the shim(s)
are replaced.
Repeat the shim change
procedure
as
necessarv.
lncorrect
Toodr
CoDtact
Patterns
FINAL
DRIVE 1G13
NOTE
olf
the fukla$
is out of the
standard nngp
after
changing
the
pinion gear
&im(s),
rql*e the ring
g:@r
$im(s) to conect
the backh*
More cheking
the
tooth
cont&'t
pattern.
Example 1: Decrease
the
thickness
of
the
pinion gear
shim(s)
by 0.05
mm to correct the
pattern
shown below.
Example 2: lncrease
tie thicknes of the
pinion gear
shim(s)
by 0,05
mm
to
correct
the
pattern
shown below.
Bottom
Top
Heel
