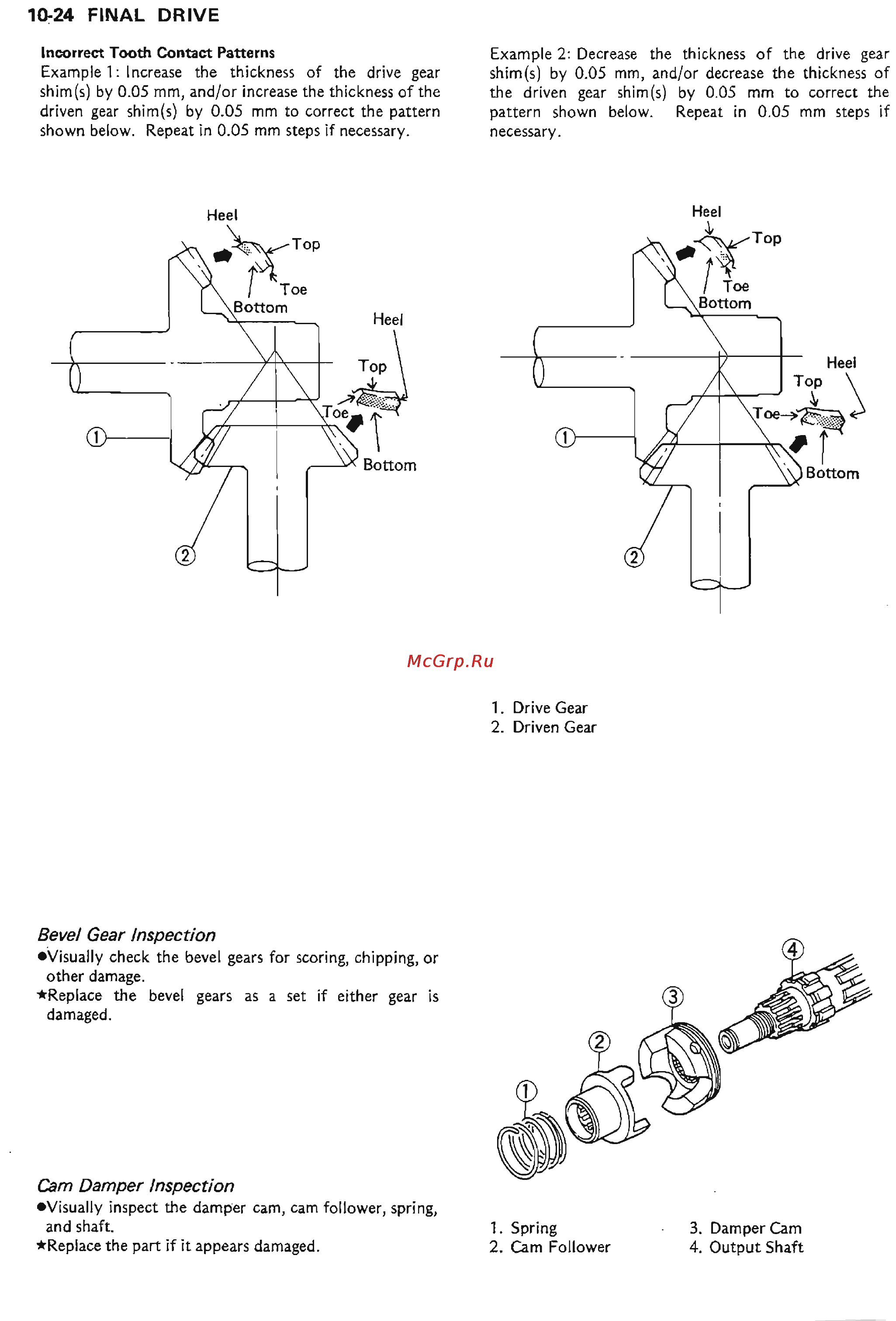

1G24
FINAL
DRIVE
lncorrect Toodr Contact Pattems
Example
1: lncrease the thickness of the drive
gear
shim(s)
by 0.05
mm, and/or increase
the thickness of the
driven
gear
shim(s) by 0.05
mm
to correct the
pattern
shown
below.
Repeat in 0.05 mm steps if necessary.
Bevel Gear lnspection
rVisually
check the bevel
gears
for
scoring chipping, or
other damage,
*Replace
the bevel
gears
as a
set if
either
gear
is
damaged.
Cam
Damper lnspection
.Visually
inspect the
damp'er cam, cam follower, spring,
and shaft.
*Replac€
the
part
if
it appears damaged.
Example 2: Decrease the thickness of the drive
gear
shim(s)
by
0.05
mm,
and/or decrease the thickness of
th€ driven
gear
shim(s) by 0.05
mm
to
correct the
pattern
shown below.
Repeat in 0.05 mm steps if
necessarv.
1. Drive Gear
2. Driven Gear
l.
Spring
2.
Cam Follower
3. Damper Cam
4. Output Shaft
Heel
Heel
