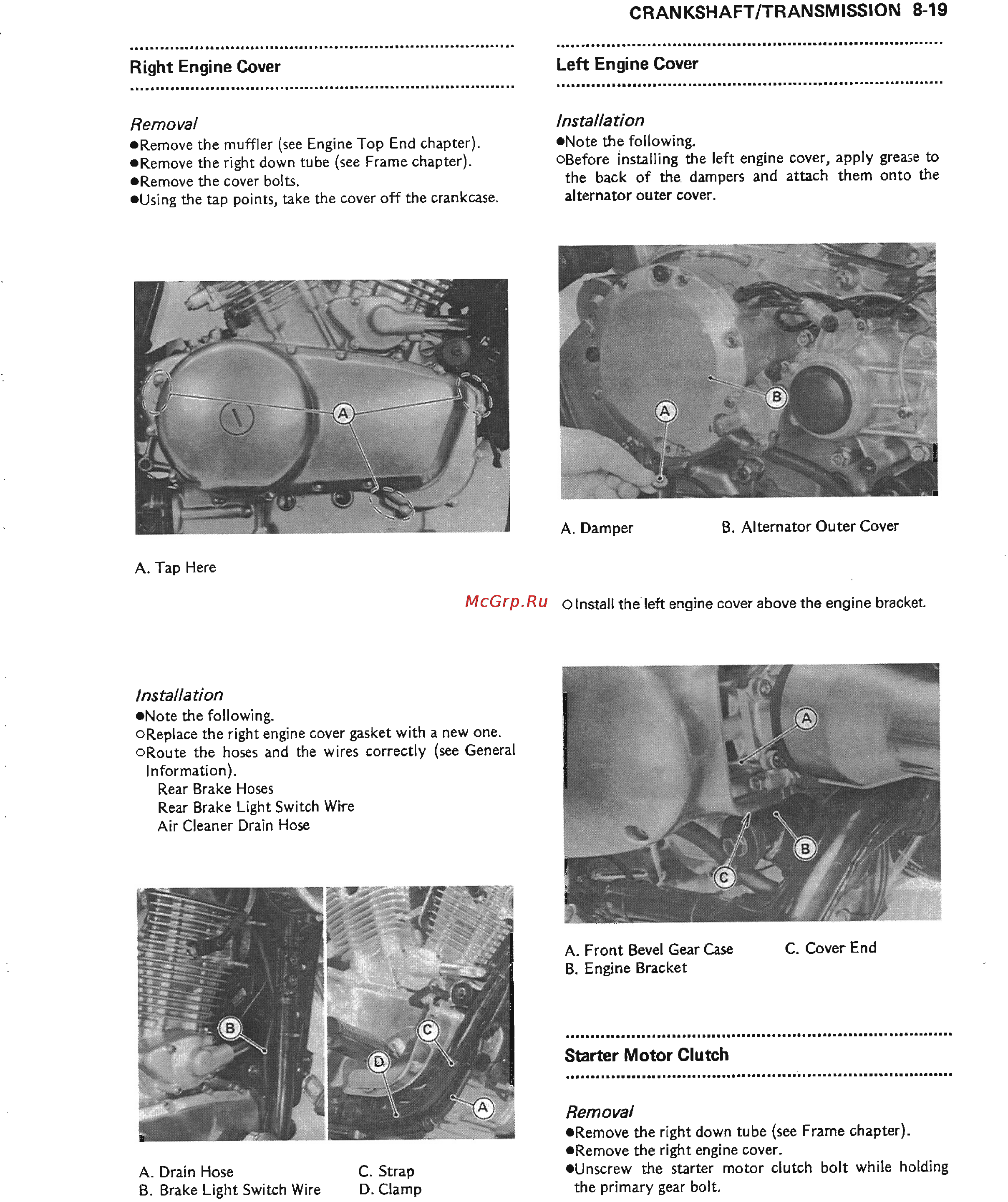

CRANKSHAFT/TRANSMISSION
&19
Right
Englne Cover
Left
Engine
Cover
Bemotral
rRemove
the
muffler
(see
Engine Top
End chapter).
.Remove
the right
down tube
(see
Frame
chapter).
aRemove
the
cover bolts.
.Using
t}|e
tap
points,
take
the cov€r
off t}te cnnkcase.
A. Tap
Here
lnstallation
.Not€
tle following.
oReplace
tl|e right
engine cover
gasket
with
a new one.
oRoutr
the
hoses and the
wires correctly
(see
General
Information).
Rear Brake
Hos€s
Rear Brake
Light Switch
Wire
Air Cleaner Drain
Hose
A.
Drain Hose
B. Brake Light Switch
wire
lnsallation
.Note
the
followin&
oBefore
installing
tlre
left engine
cover, apply
grea3e
to
ttre
back of the
dampers
and attaoh
them
onto the
alternator outer cover.
A. Damper
B. Altemator
Outcr
Cover
o Inst€ll the
left
engine
cover above
the engine
bracket
A. Front
Bevel
Gear Cas€
B.
Engine Bracket
C. C-over
End
Starter
Motor Clutdt
Removal
.Remove
tt|e right down
tube
(see
Frame chapter).
.Remove
the right
engine cover.
.unscrew
the starter
motor clutch bolt
while
holding
the
primary gear
bolt.
C. Strap
D. Clamp
