9-2
WHEELS/TIRES

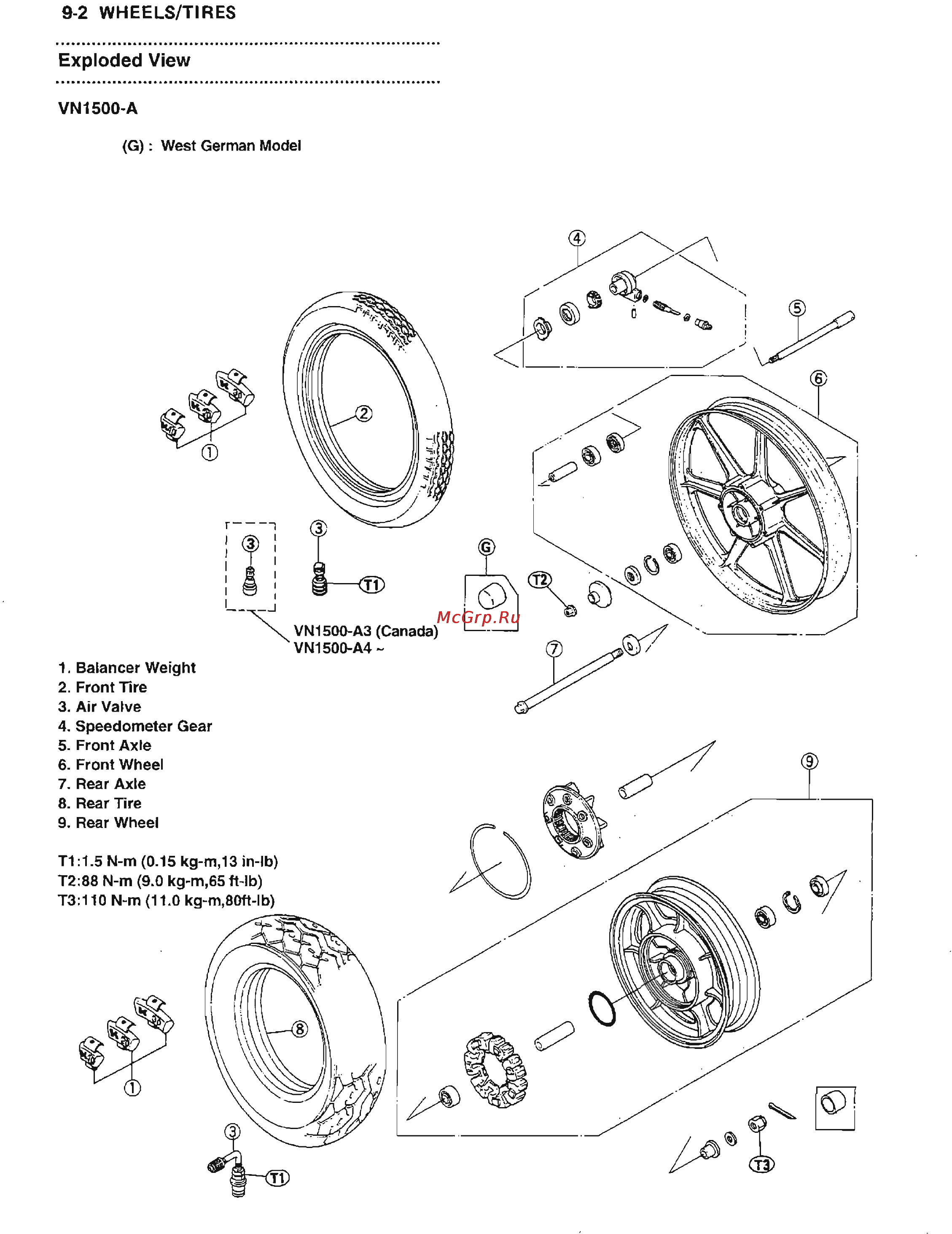

Exploded View
vN1500-A
(G)
: West
German
Model
1. Balancer Weight
2.
Front Tire
3,
Air Valve
4.
Speedom€ter Geal
5. Front Axle
6. Front Wheel
7. Rear Axle
8.
Rear Tire
9. Roar Wheel
T1:1.5 N-m
(0.15
kgFm,13 in-lb)
T2:88 N-m
(9.0
kg-m,65 fr-rb)
T3:110 N-m
(11.0
kg-m,8oft-lb)
-s
ar\
\\\
tY )\
r'-v
EY
='=')');"
;#
