D-Link DCS-3220G [133/143] Adjusting the camera focus
![D-Link DCS-3220G [133/143] Adjusting the camera focus](/views2/1043917/page133/bg85.png)
133
Note:
You can further adjust the Internet Camera’s image quality through the web
configuration under:
Configuration > Advanced > Video
Please refer to the Configuration > Advanced > Video section (page
46) for further details.
Adjusting the Camera Focus
The DCS-3220G Internet Camera features an interchangeable C/CS-type lens
that can be used for different applications as necessary. It supports rotational
focus control so the lens can be adjusted to focus under normal and stable
conditions to maximize the image quality of the Internet Camera.
To adjust the focus of the lens you will need to turn the lens slowly either
clockwise or counterclockwise until the desired image appears. DO NOT
overturn the lens in either direction as it will be out of focus and may damage
the camera. Unless you want to substitute the lens DO NOT unscrew more
than 1.0mm apart from the Fixed Lens Assembly.
To help you get the best image quality, keep in mind that while adjusting the
cameras focus you can preview the image quality from your Web browser.

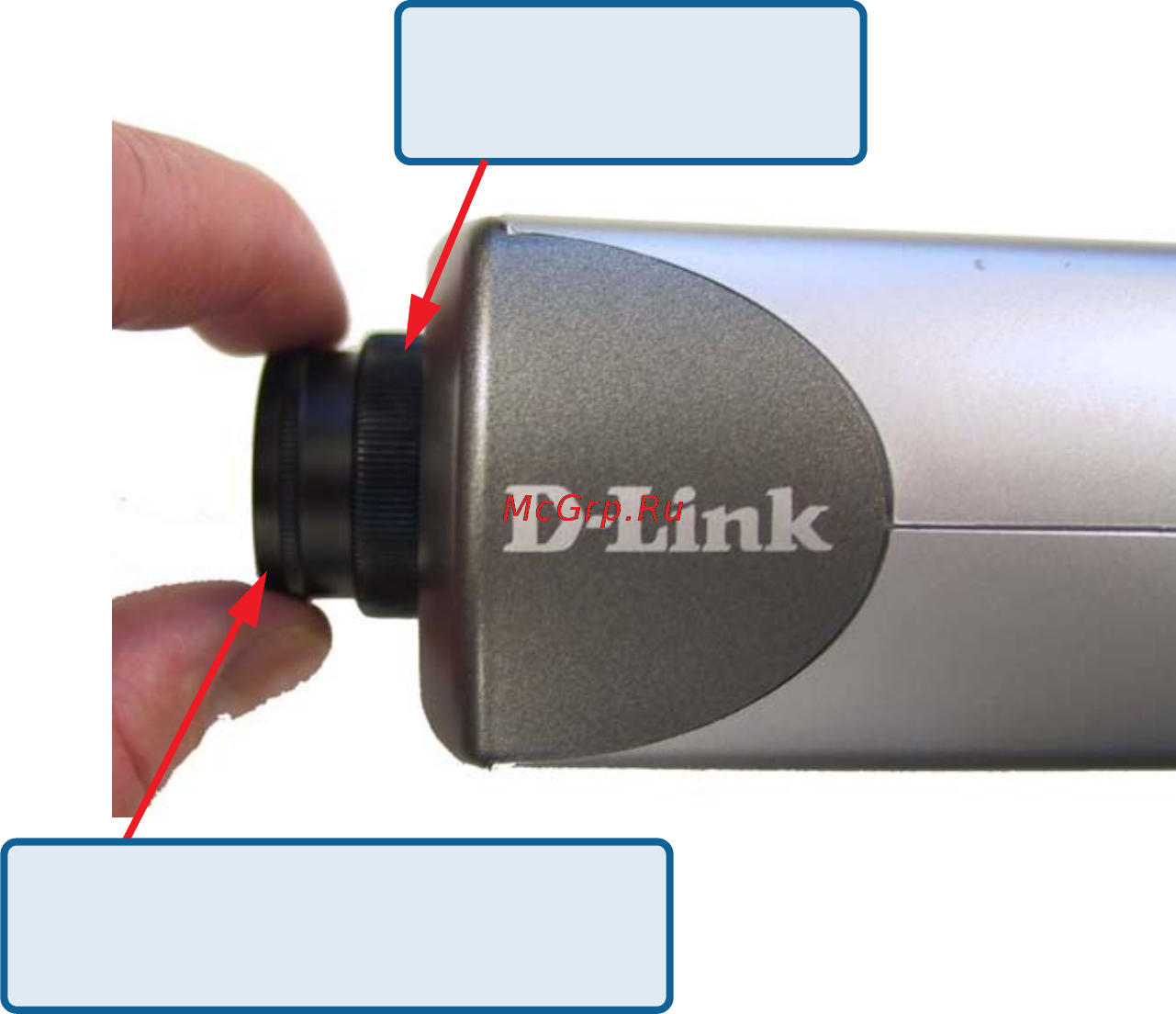

Camera Lens
Adjust focus by turning
clockwise or counterclockwise
Fixed Lens Assembly
Do NOT adjust
