28
Using & Configuring the DCS-3220G with a
NAT Router (continued)
Viewing the Video on the browser to test the connection

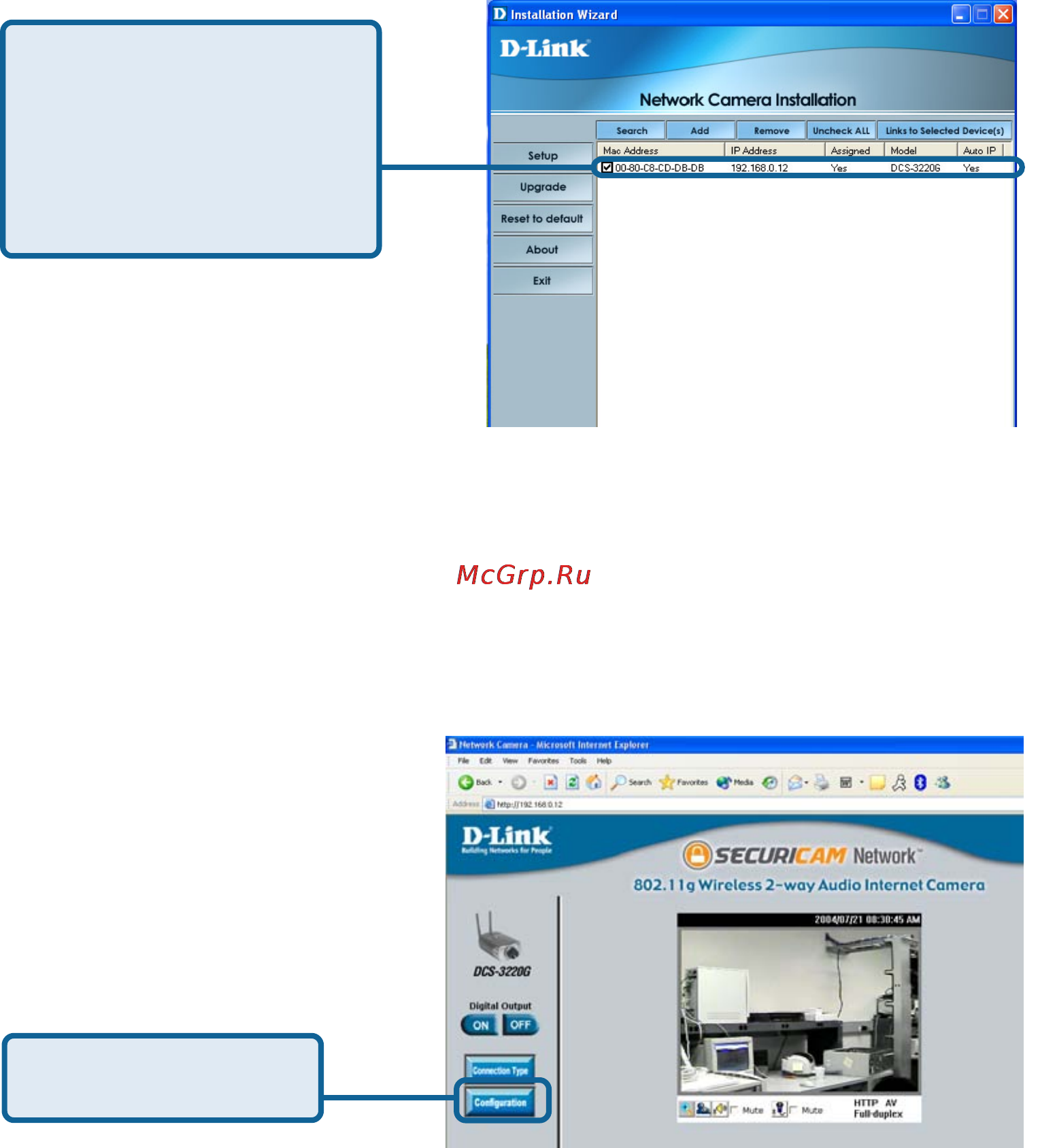

Click on the Configuration button on the left side of the display. Scroll to the
bottom of the Network Configuration page to display the ports used by HTTP
and Streaming audio and video.
This is the IP Address
assigned to your camera.
Write it down for later use.
192.168.0.102 is only an
example. You will probably
have a different IP Address.
Click on the
Configuration button.
Run your Internet Explorer Web browser. In the address bar, type in the IP
Address that was assigned to the Internet Camera by the IP Installer program.
The DCS-3220G Home Page appears with a window displaying live video from
the camera. You are able to view this screen from any PC running Internet
Explorer on your LAN.
View the Internet Camera using your Internet Explorer Web
browser
